TIAGO AMT Gasoline
DTC Troubleshooting Guide
Version: 2.0
Date: 06-06-2016
Author: Sathi/Anupama
Page: 79 of 424
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
-
the following points by referring TCU parameters using TML diagnostic tool
before handing over to customer.
After key ON with TML diagnostic tool connected, move the lever to each position and check corresponding position is
correctly displayed in the tool.
Drive the vehicle through all gears in both Automatic and Manual modes.
Ensure no DTC is active and Transmission Fault Lamp is OFF.

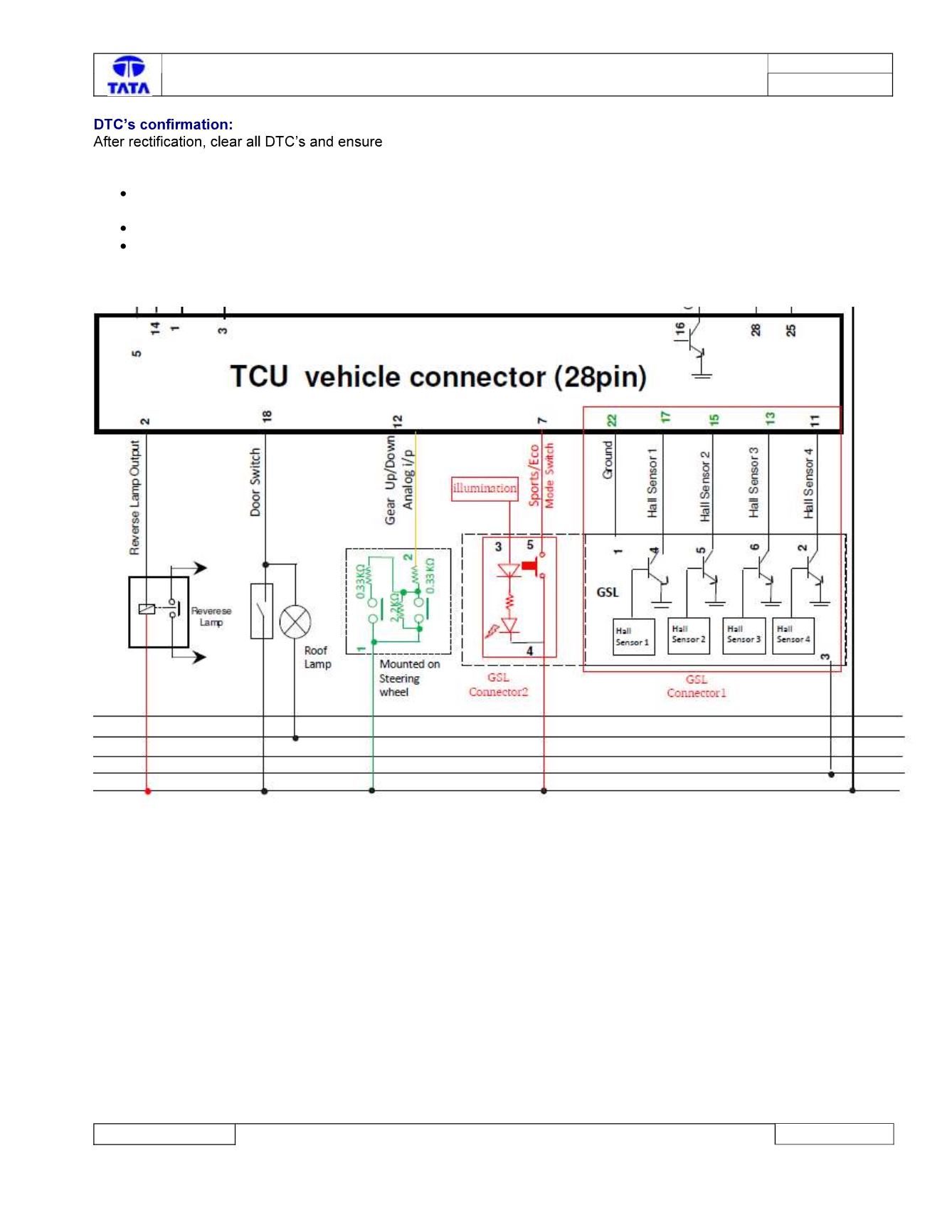

Circuit Schematic Diagram:
Component Location & Image:-
