Replace the Clutch Position Sensor, fault

persists?

Replace the TCU.

Follow the steps again for

reconfirmation

on:-

the following points by referring TCU parameters using TML diagnostic tool

before handing over to customer.

Drive the vehicle through all gears in both Automatic and Manual modes.

Ensure no DTC is active and Transmission Fault Lamp is OFF.

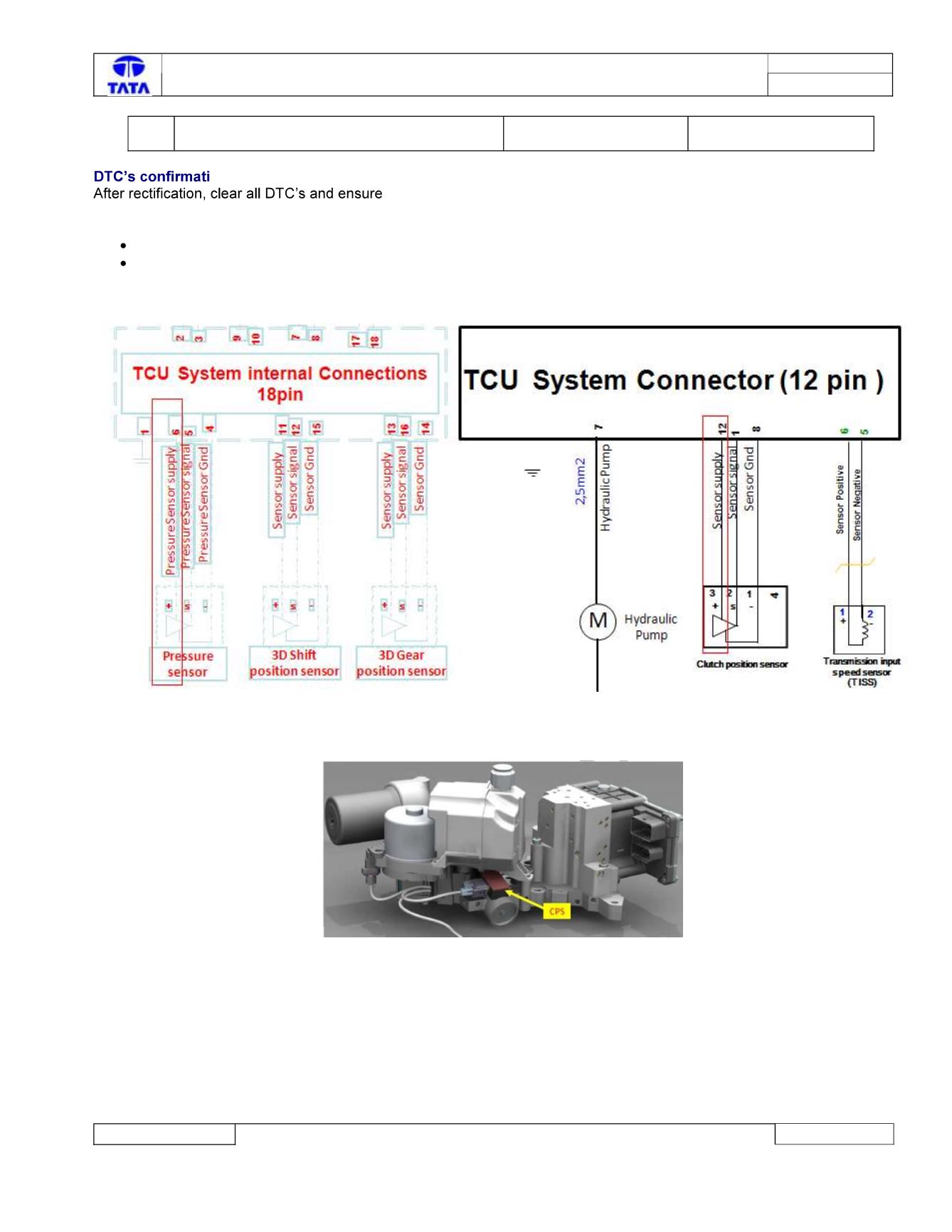

Circuit Schematic Diagram:

Component Location & Image:-

Connector Location: -

TCU system connector (12 Pin) and TCU vehicle Connector (28 Pin) are in Engine compartment, near the AMT kit.
