ELECTRICAL

216

8.28.16 Physical Images

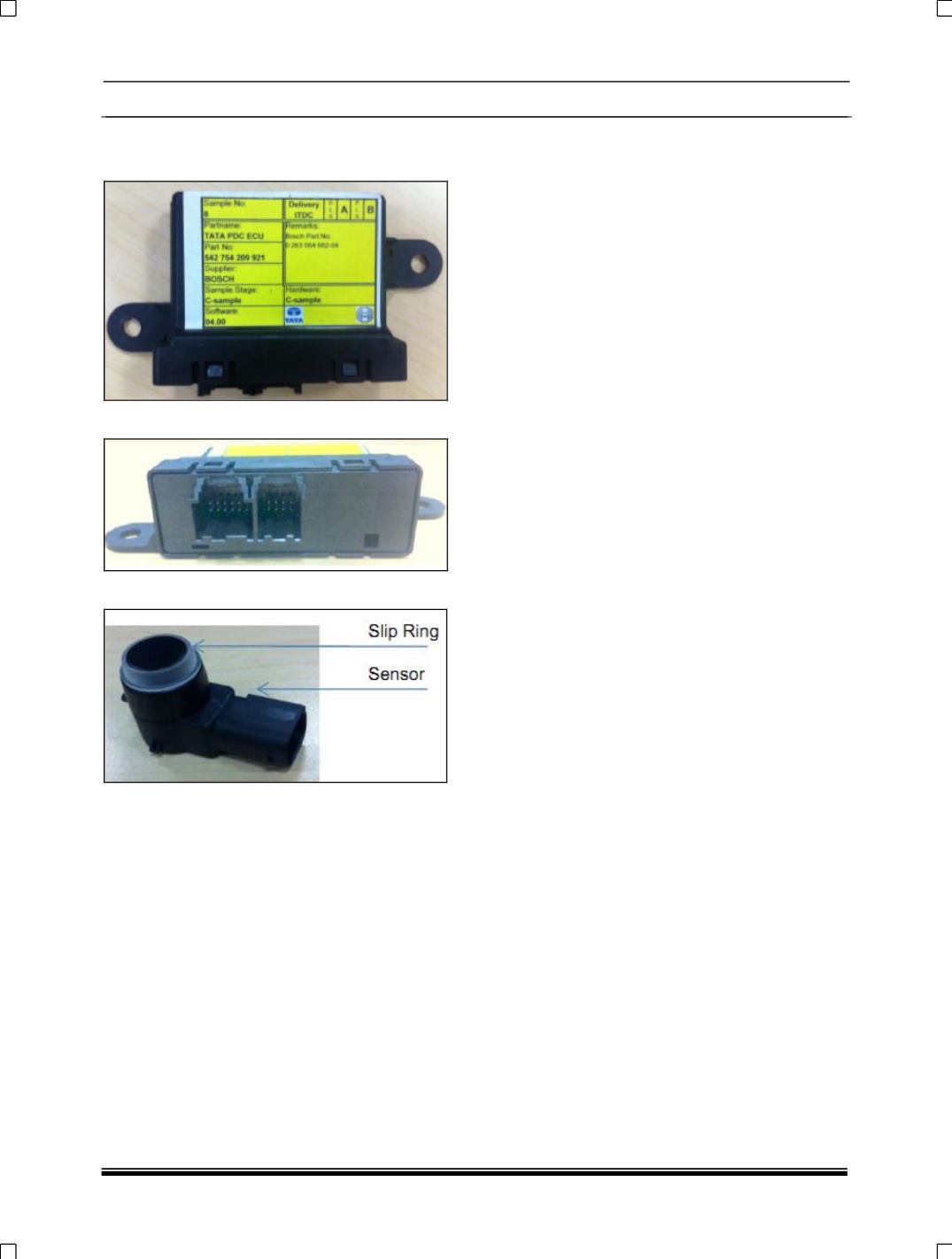

PDC ECU front view:

PDC ECU component connector side view:

PDC Ultrasonic Sensor View:
