TA65 Star AMT

42

12.

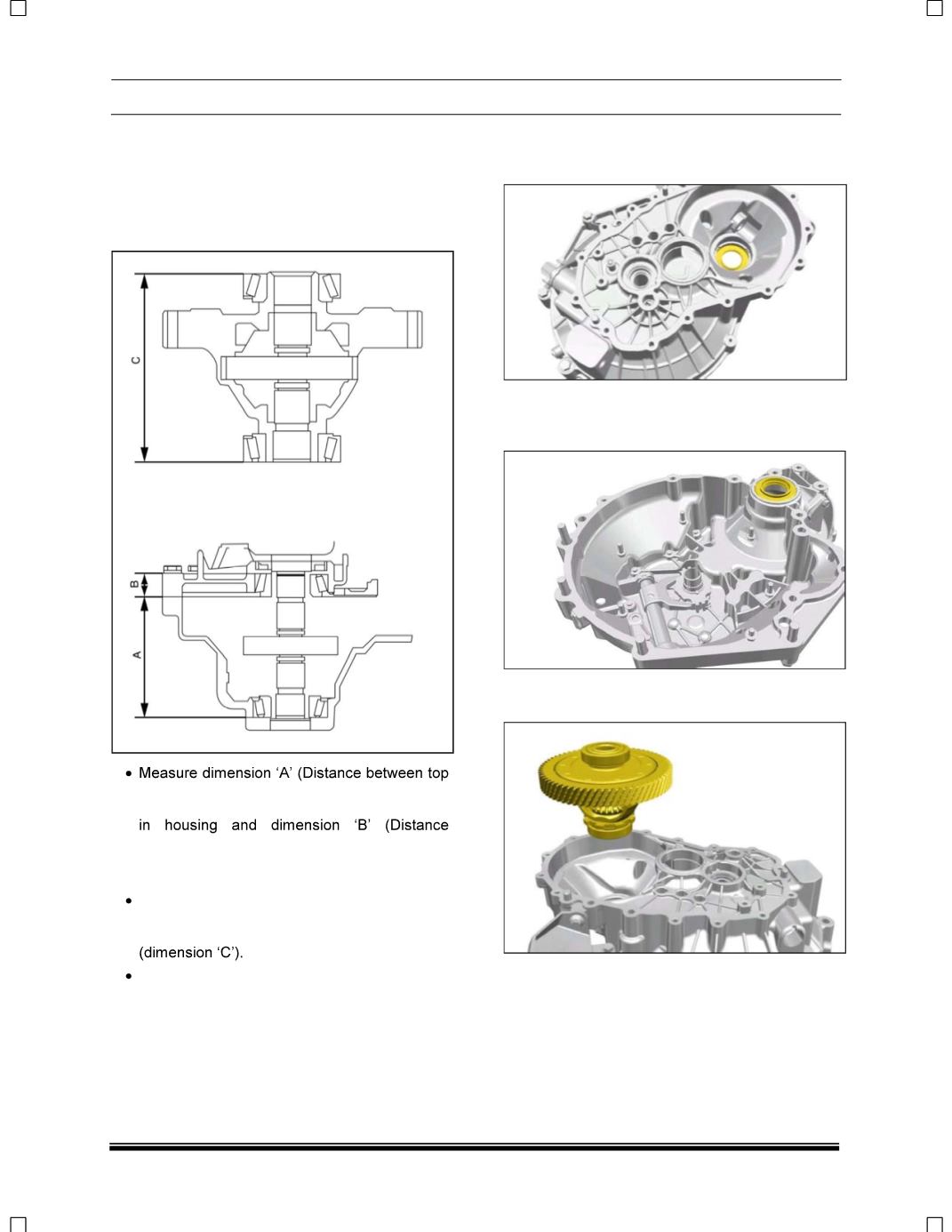

ASSEMBLIES OF TRANSAXLE:

1. Fit clutch release fork shaft. Fit plastic

bushes. Fit lever on clutch release shaft and

lock it by grooved pin.

2. Differential bearing preload adjustment

procedure.

mating surface of transaxle front half and the

outer differential bearing seat) say 103.7mm

between mating surface of transaxle rear half

and the inner differential bearing seat) say

19mm in housing for bore 65.088 mm dia.

Place outer races on both differential side

bearings and measure distance between

outer surfaces of these outer races

Select shim thickness = (A+B) - C to (A+B) -

C+ 0.05 and install the shims against front

half taper roller bearing outer race.

3. Fix the outer race of differential bearing in the

housing (front half) by using drift part no. 2654

5890 3507.

4. Remove sensing wheel using by puller part

no. 2651 5890 3506 and rest pad part no.

2702 58902612N.

5. Place the assembly differential in front half

housing.
