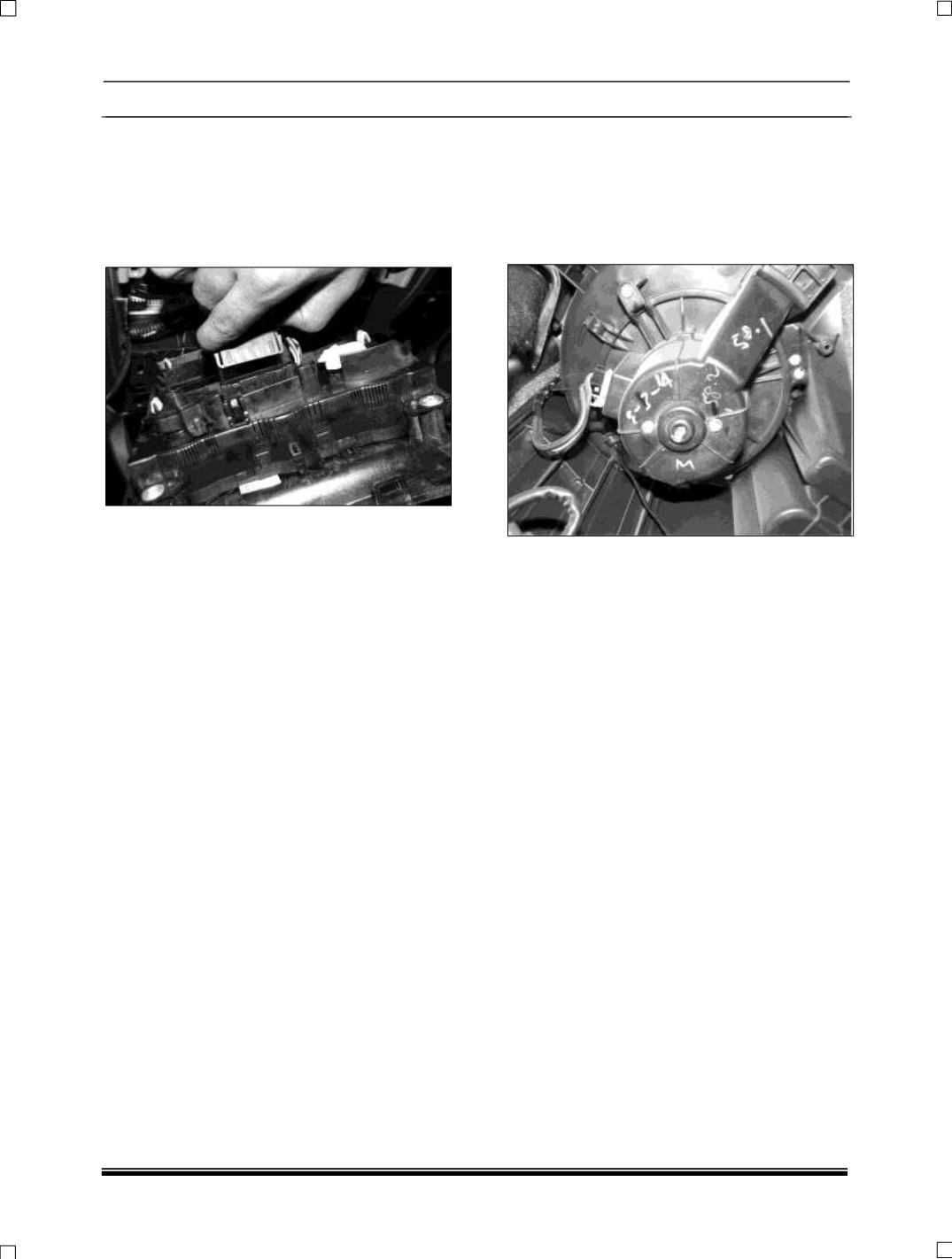

11.6.2 REMOVAL OF WIRING HARNESS

CONNECTORS FROM CONTROL PANEL

1. For removing the connector press the snap

and pull the connector outside.

2. For removing the connector 2 press the snap

and push the lever.

11.6.3 SERVICING OF BLOWER ASSEMBLY

1. Remove wiring harness connector.

2. Remove motor cooling pipe.

3. Unscrew the blower assembly mounting

screws. 3 Nos.

4. Remove the assembly.
