DRIVETRAIN-TA65 Star
44

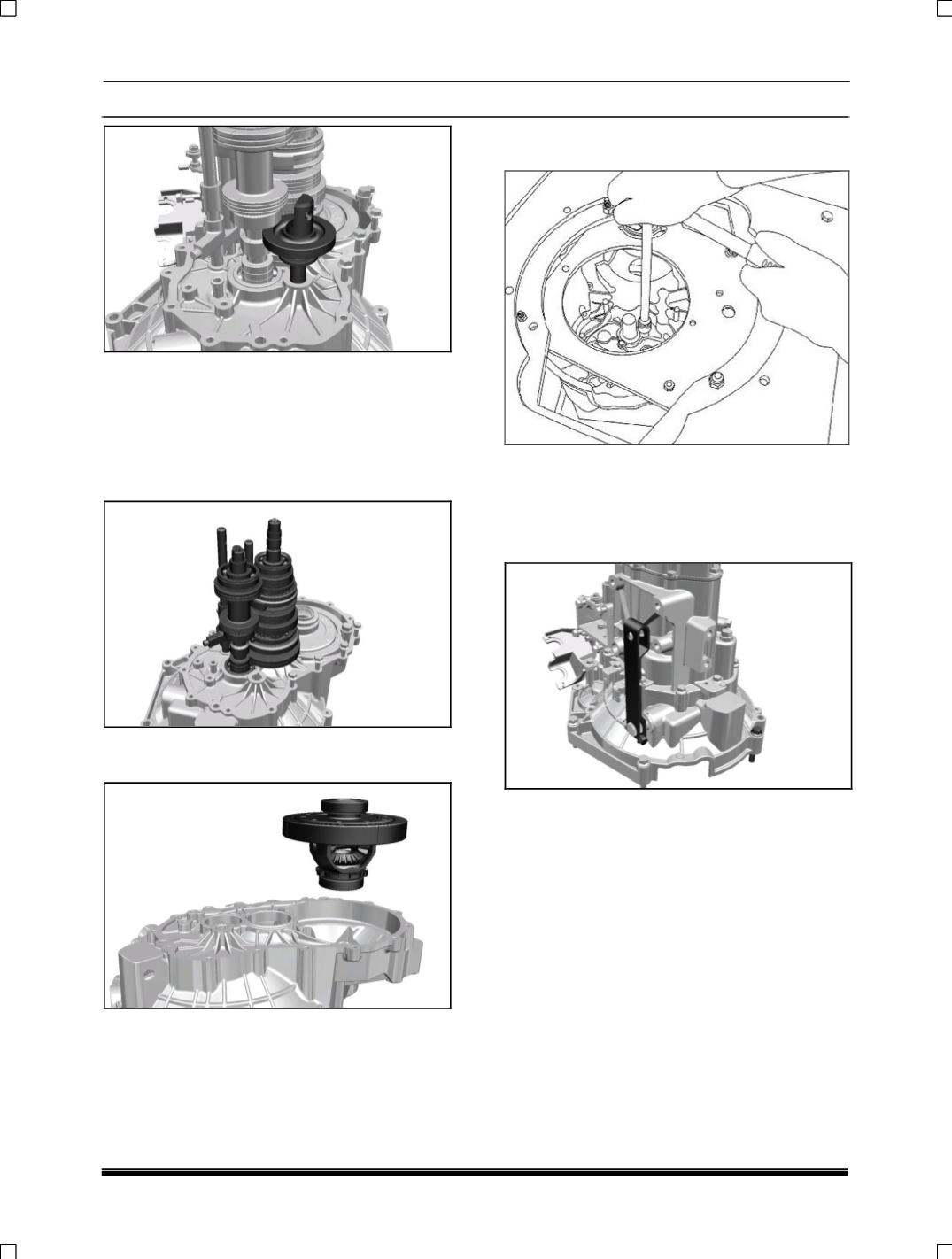

27. Remove the adaptor part no. 2702 5890
2611 for locking input shaft. Tap the input
shaft gently from the spline end also top the
lay shaft.
28. Pry out the input shaft, and lay shaft along
with shifter shaft assembly from the clutch
housing.
29. Remove the differential assembly from the
housing front.
30. Remove the input shaft cover by removing M6
* Mounting Bolts.
31. Try out the oil seal from the cover (if
damaged) and
replace it with new one.
32. Remove hex flanged screw holding release
lever on to release yoke and take out release
lever from release yoke.
33. Remove the plastic bushes at both ends of
clutch release fork and remove the clutch
release shaft from inside.
34. Remove oil seals of drive shaft from
differential housing.
Replace it with a new
one while assembling.
35. Remove bearing outer races of differential
side bearing along with shims. Ensure that outer
races are not interchanged.
NOTE: SHIMS SHOULD NOT BE REUSED.
