587 / 1232
Automated Manual Transmission
59
Sr.
no
Name
Connector
1
Solenoid valve
2 (gear en-
gagement)
solenoid 2 (gear en-
gagement)
15.

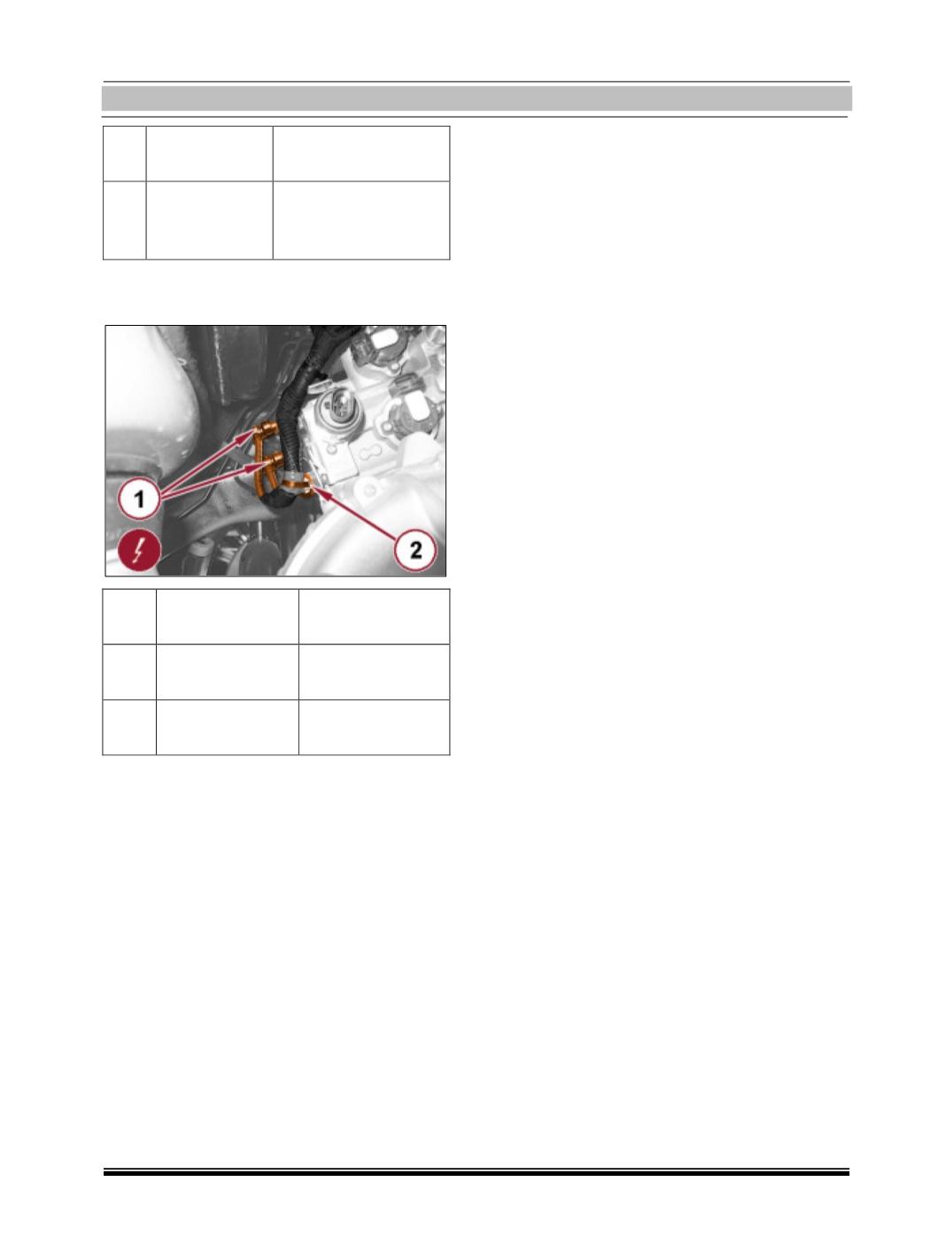

Disconnect the electrical connections for
the gear selection solenoid valves.
Sr.
no
Name
Connector
1
Solenoid valve 3
(gear selection)
solenoid 3 (gear
selection)
2
Solenoid valve 4
(gear selection)
solenoid 4 (gear
selection)
16.
Release the wiring from the retaining clip
17.
Remove the electro-hydraulic selection
system wiring.
Wiring For Manual Gearbox Hydraulic Selec-
tion System on Hydraulic Selection Unit
Fitment
1.
Place the electro-hydraulic selection sys-
tem wiring back in its housing.
2.
Connect the electrical connections for the
gear selection solenoid valves and engage
the wiring with the retaining clip.
3.
Connect the electrical connection for the
even/R gear engagement solenoid valve.
4.
Connect the electrical connection for the
odd gear engagement selection solenoid
valve.
5.
Connect the electrical connection for the
gear selection position sensor.
6.
Connect the electrical connection from
the gear selection position sensor.
7.
Connect the electrical connection for the
oil pressure sensor and engage the wiring
with the retaining clips.
8.
Connect the electrical connection for the
clutch control solenoid valve.
9.
Connect the electro-hydraulic selection
system wiring coupling and engage the
wiring with the retaining clip.
10.
Connect the electrical connection for the
gearbox input speed sensor and engage
the wiring with the tank.
11.
Fit battery support/drip tray.
12.
Fit battery.
13.
Fit protection/guard under engine
14.
Remove the car from the lift
