Automated Manual Transmission
48
7.
Fit protection/guard under engine
8.
Refill the electro-hydraulic selection gear-
box hydraulic control system, with
reference to
9.
Check level of hydraulic system fluid for
gearbox with hydraulic selection and top
up, if necessary.
10. Fit battery support/drip tray.
11. Fit battery.
12. Connect the diagnosis equipment and
carry out the following operations:
Bleed air of hydraulic system for gearbox
with hydraulic selection
Clutch self-calibration enablement.
Grid self tuning - service.
New actuators (only if the hydraulic actu-
ation unit is being replaced).
Remove the car from the lift.
Gear Selection Solenoids Removal:
1.
Place the car on a lift.
2.
Position the gear lever at N.
3.
Connect the diagnosis equipment and car-
ry out the accumulator depressurization
procedure.
4.
Remove protection/guard under engine.
5.
Remove battery.
6.
Remove battery support/drip tray.
7.
Remove wiring for manual gearbox hy-
draulic selection system on hydraulic
selection unit
8.
Remove hydraulic speed selection hydrau-
lic actuator unit and clutch.
9.

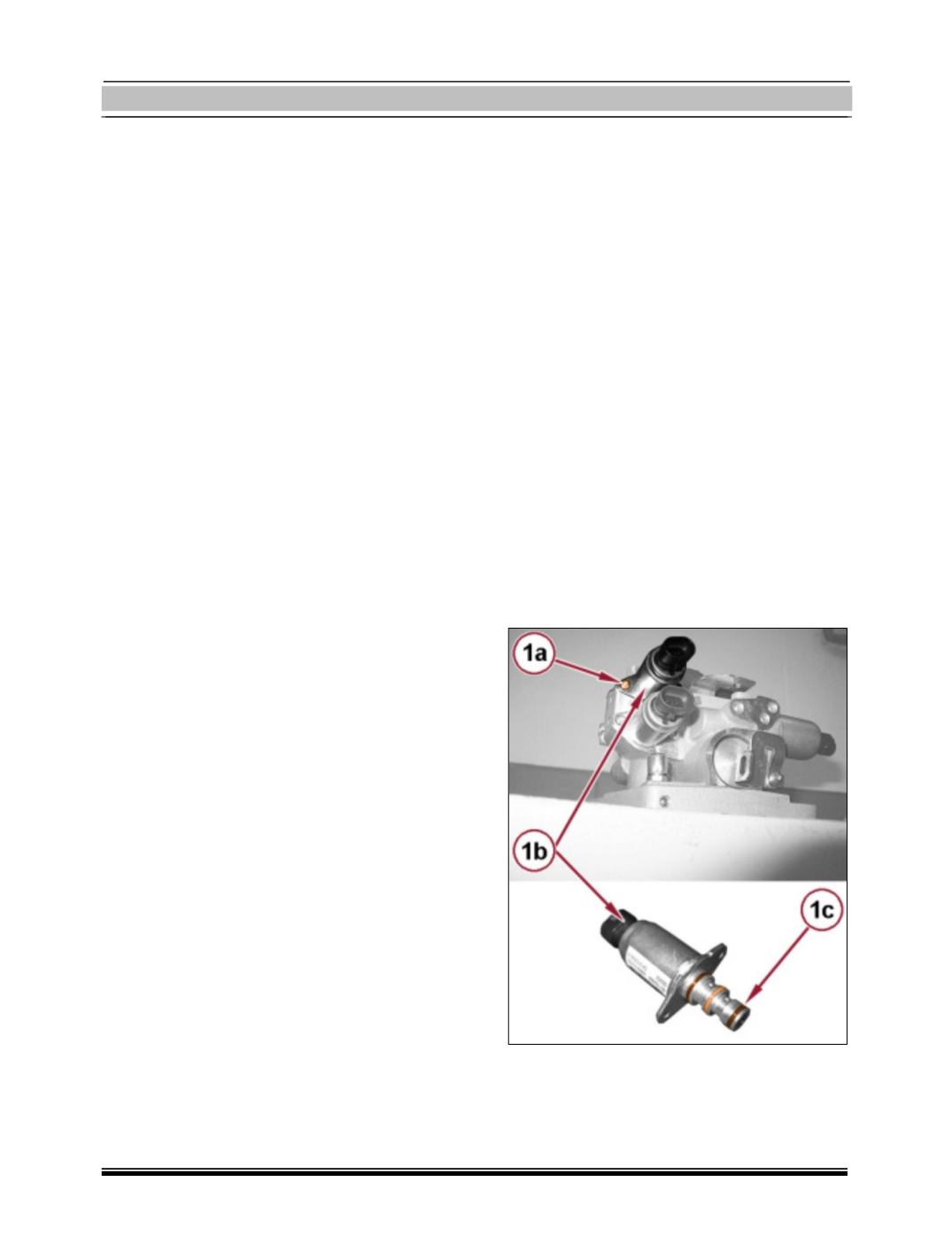

Loosen and remove the screws (1a) and
remove the 1st and 2nd gear selection so-
lenoid valve (1b) complete with O-rings
(1c).
