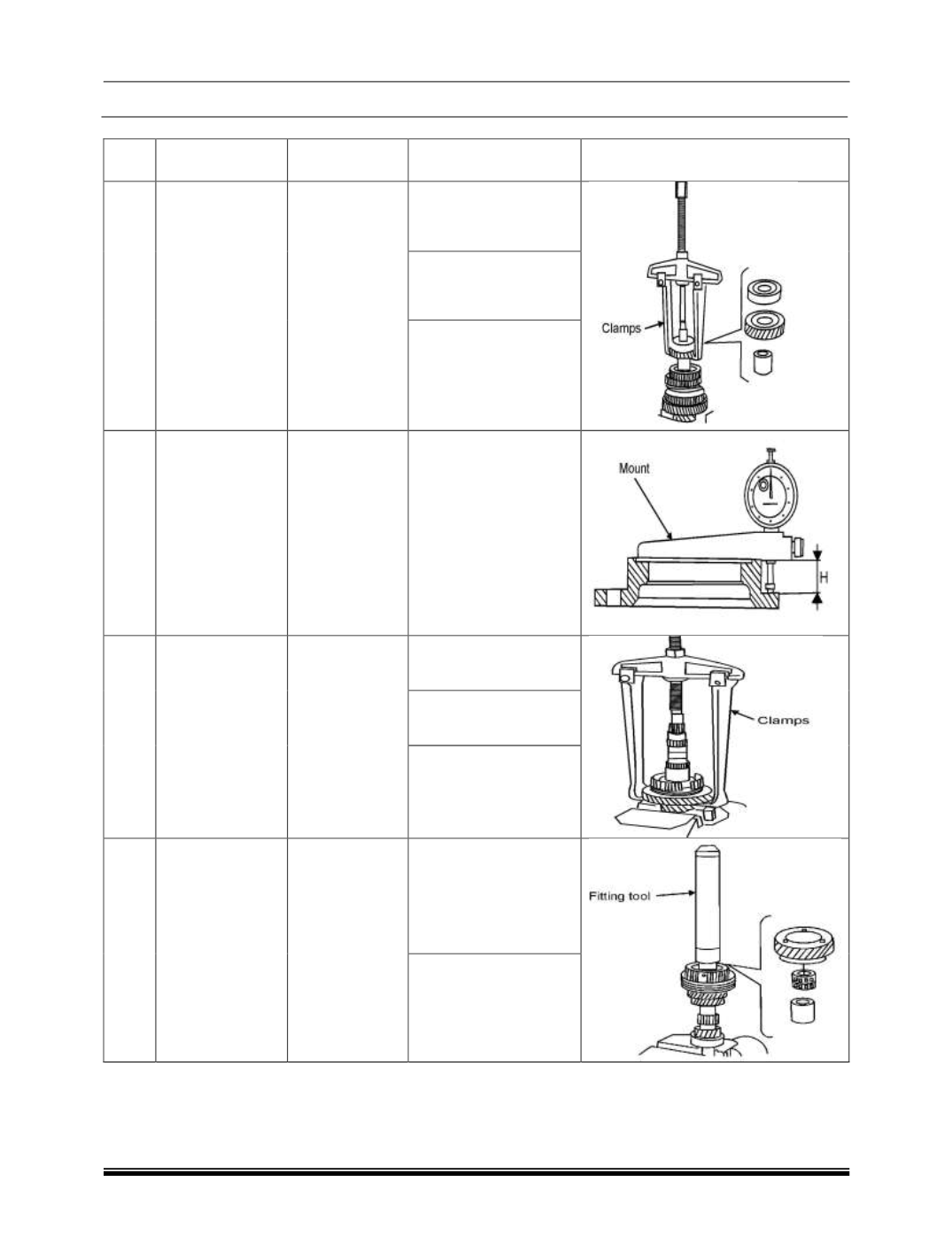

DRIVETRAIN C549
17
Sr
No
TML Part No
Description Function
Schematic
6
287458902607
Clamps
Removing lay shaft
rear bearing
Removing 3rd speed
drive gear and 2nd
speed driven gear
Removing 3rd and 4th
speed engagement
sliding sleeve hub,
synchronizer ring and
3rd speed drive gear
7
287458902612
Mount
Determining thickness
of differential bearing
scraper rings
8
287458902608
Clamps
Removing 1st, 2nd
and 3rd speed driven
gears
Dismantling main
shaft
Removing lay shaft
front bearing
9
287458902609
Fitting tool
Fitting 4th speed drive
gear bush/main shaft
rear bearing/1st and
2nd speed sliding
sleeve hub
Fitting bearing
