ENGINE 1.3 QUADRAJET (75PS)
33
B. REMOVALANDOVERHAUL

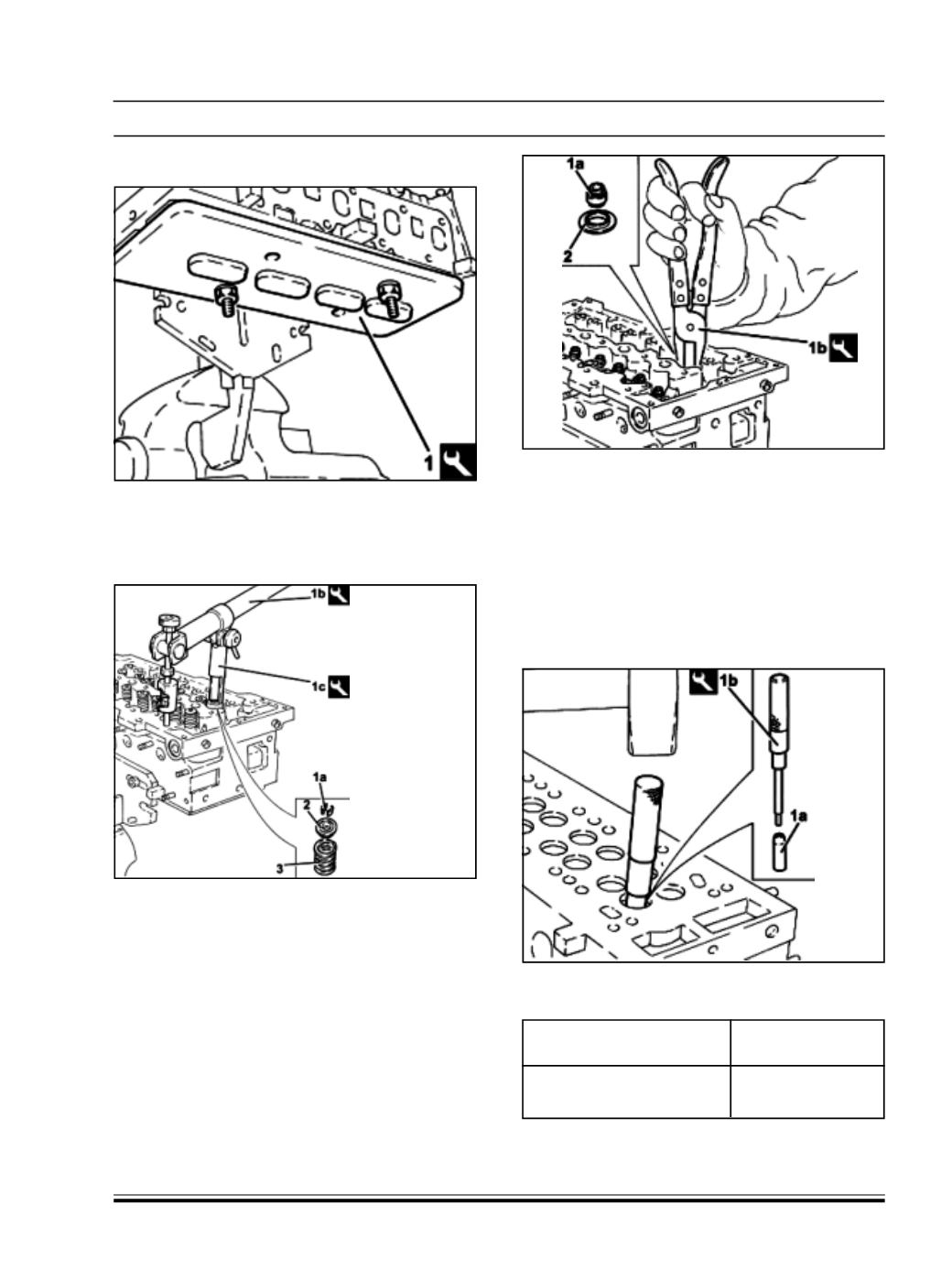

1. Fit a wooden stand (1) tool no. 287158900626 on
the cylinder head plane to support the valves and
secure it using bolts.
2. Fit the cotters (1a) using the tools (1b)
287158900625(Lever) and (1c) 287158900646
(Chamber).
3. Remove the valve upper shim (2).
4. Remove the valve spring(3).
5. Carry out the same operations on the other valves.
6. Remove the wooden stand tool no.287158900626
and keep the valves.
7. Remove the valve guide oil seals (1a) using the
tool 287158900648 (Calliper) (1b).
8. Fit the lower valve shims.
9. Remove the cylinder head from the support tool.
10.Remove the valve guides (1a) using the tool
287158900645 (Extractor) (1b).
Valve guide outer
10.010 ~ 10.030
diameter (mm)
Valve guide outer diameter 0.05/0.10/0.25
oversize (mm)
