ENGINE 1.3 QUADRAJET (75PS)
23

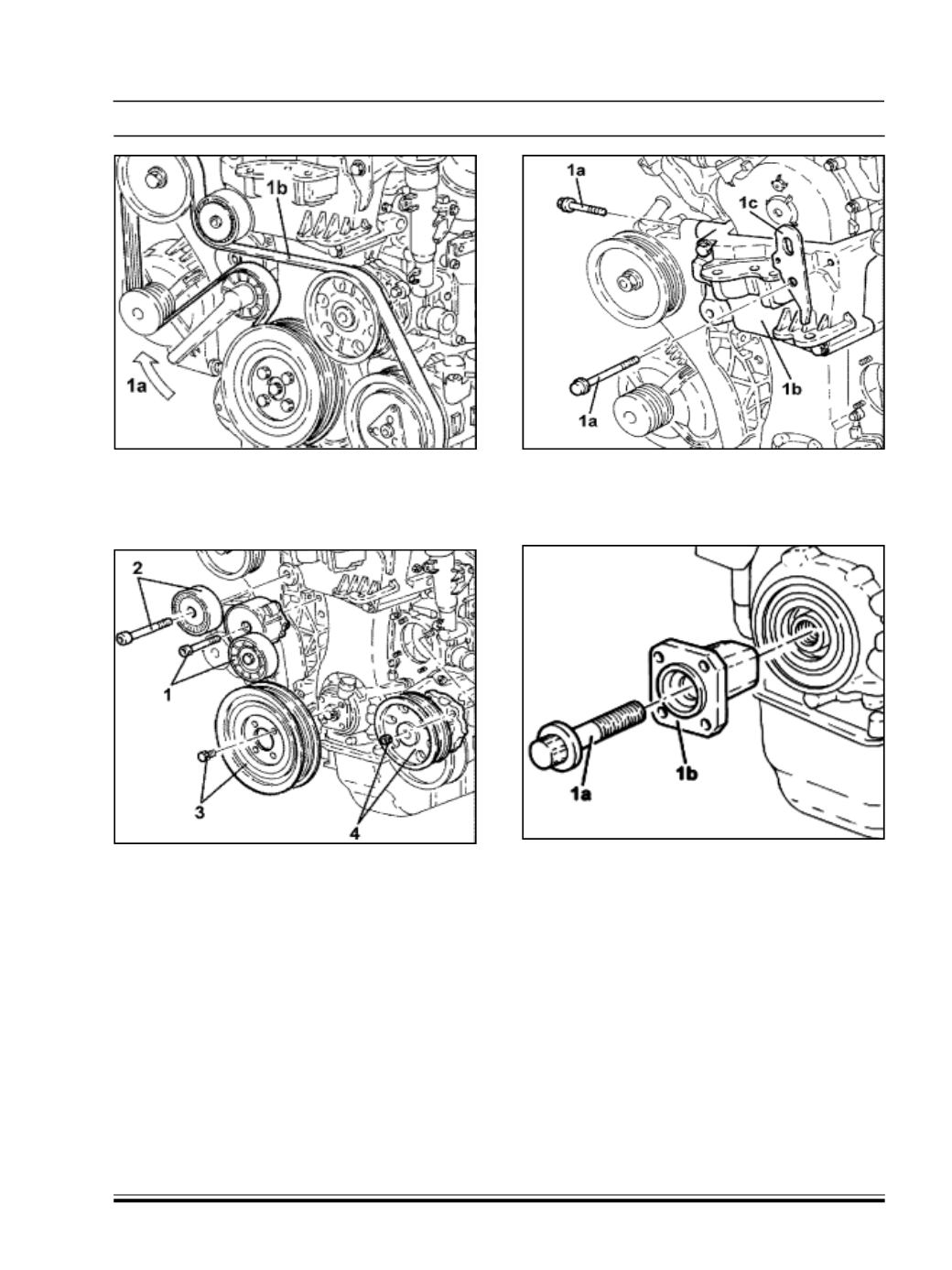

13.Use a spanner in a clockwise direction on the moving
tensioner (1a) and remove the engine components
single drive belt (1b).
14.Remove the bolt and remove the engine
components single belt moving tensioner (1).
15.Remove the bolt and remove the engine
components single belt fixed tensioner (2).
16.Completely Remove the fixing bolt s loosened
previously and remove the crankshaft pulley (3).
17.Remove the nuts and remove the coolant pump (4)
complete with gasket.
18.Remove the bolts (1a) and remove the timing side
rigid engine support (1b) complete with engine
lifting bracket (1c).
19.Completely remove the left hand threaded bolt (1a)
(loosening in clockwise direction) loosened
previously and remove the pulley mounting flange
on the crankshaft (1b).
