Revotron 1.2T

148

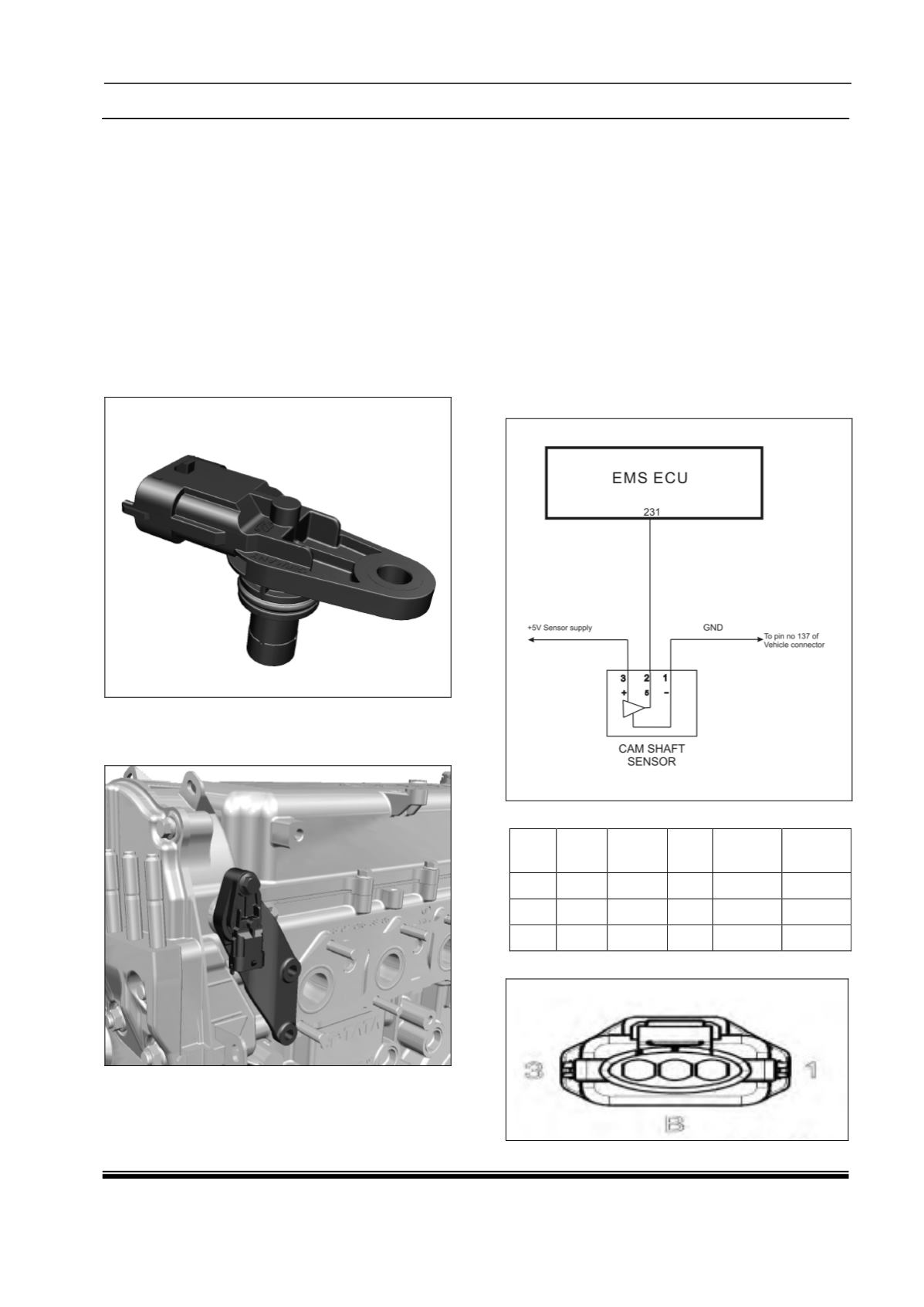

iii. Camshaft Position Sensor :

Component Details :

A typical Hall Effect Sensor has three

wires or terminals: one for ground, one for

supply or reference voltage and one for the

output signal. To produce an output signal, a

Hall Effect Sensor must be supplied with a

reference voltage. When a metal/wheel

passes through the air gap between the

magnetic field (Magnet) and silicon chip (CAM

sensor), it blocks the magnetic field and

causes the chip’s output voltage to suddenly

drop to zero else the chip's output voltage is

4.7 Volts.

Component Location :

The cam phase sensor is mounted on

cylinder head cover

Preliminary Checks :

1. Loose / Damaged connections between

sensor and EMS ECU.

2. Check for back out of pins at both sensor

connector and ECU connector.

3. Check for damage of pins at both sensor

connector and ECU connector.

4. Check the continuity from sensor

connector pins to the ECU pins.

5. Physical damage to Cam target wheel.

6. Improper air gap between sensor and

cam target wheel.

Circuit Schematic Diagram :

Connector Information :

Con

ID

Wire

ID

Color Size Material

Option

1

397

BR/B 0.50

ISCT

(AD)

2

379

O/B

0.50

ISCT

(AD)

23

111B

B/O

0.50

ISCT

(AD)

Connector View :
