ELECTRICAL
59
12.14 FUEL GAUGE AND FUEL LEVEL METER
REMOVAL AND REFITMENT OF FUEL LEVEL SENSOR
(Refer fuel system section)

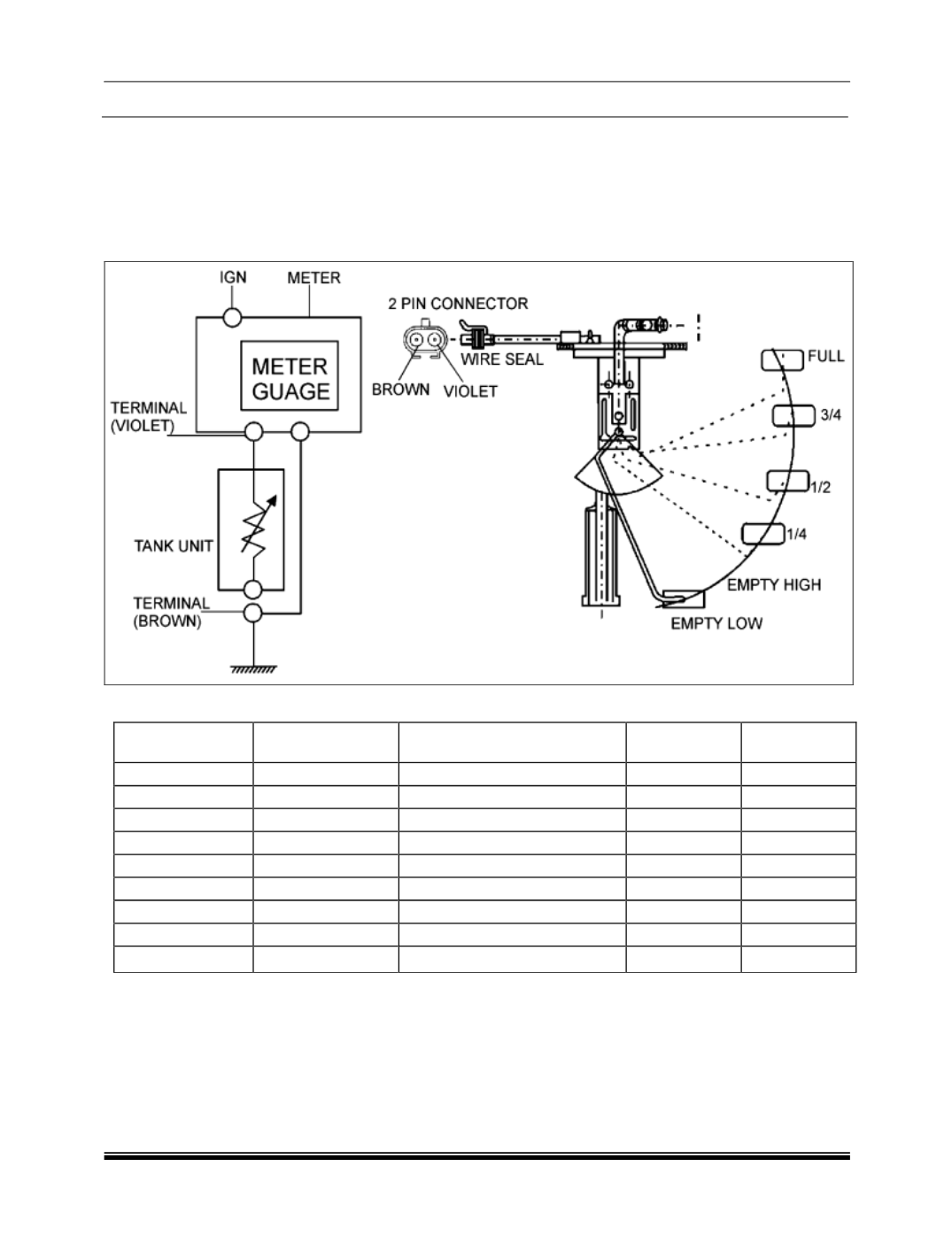

INSPECTION OF FUEL GAUGE
Use an ohmmeter to confirm that the resistance of the fuel level sensor changes with the level of float
position The specified resistance values of the fuel gauge are given below.
The specified resistance values of fuel level sensor w.r.t fuel tank level are given in below table:
Fuel Tank Level In
mm (44 liters)
In mm (44 liters)
Capacity In
Liters
In Liters
Position of float
in tank
Resistance
value in Ohms
Tolerance
value in Ohms
1.5±1
Empty Low
120
± 2
32 (+0,-2)
7±1
Empty High
100
± 2
47
10.7±1
1/4
89
± 2
91
22±1
Half
58
± 2
127
32±1
¾
34
± 2
163±3
42±1
Full
8
± 2
Low fuel indication details
36
8±1
Low fuel indication Off
96
± 2
28
6±1
Low fuel Indication On
102
± 2
