ELECTRICAL
210

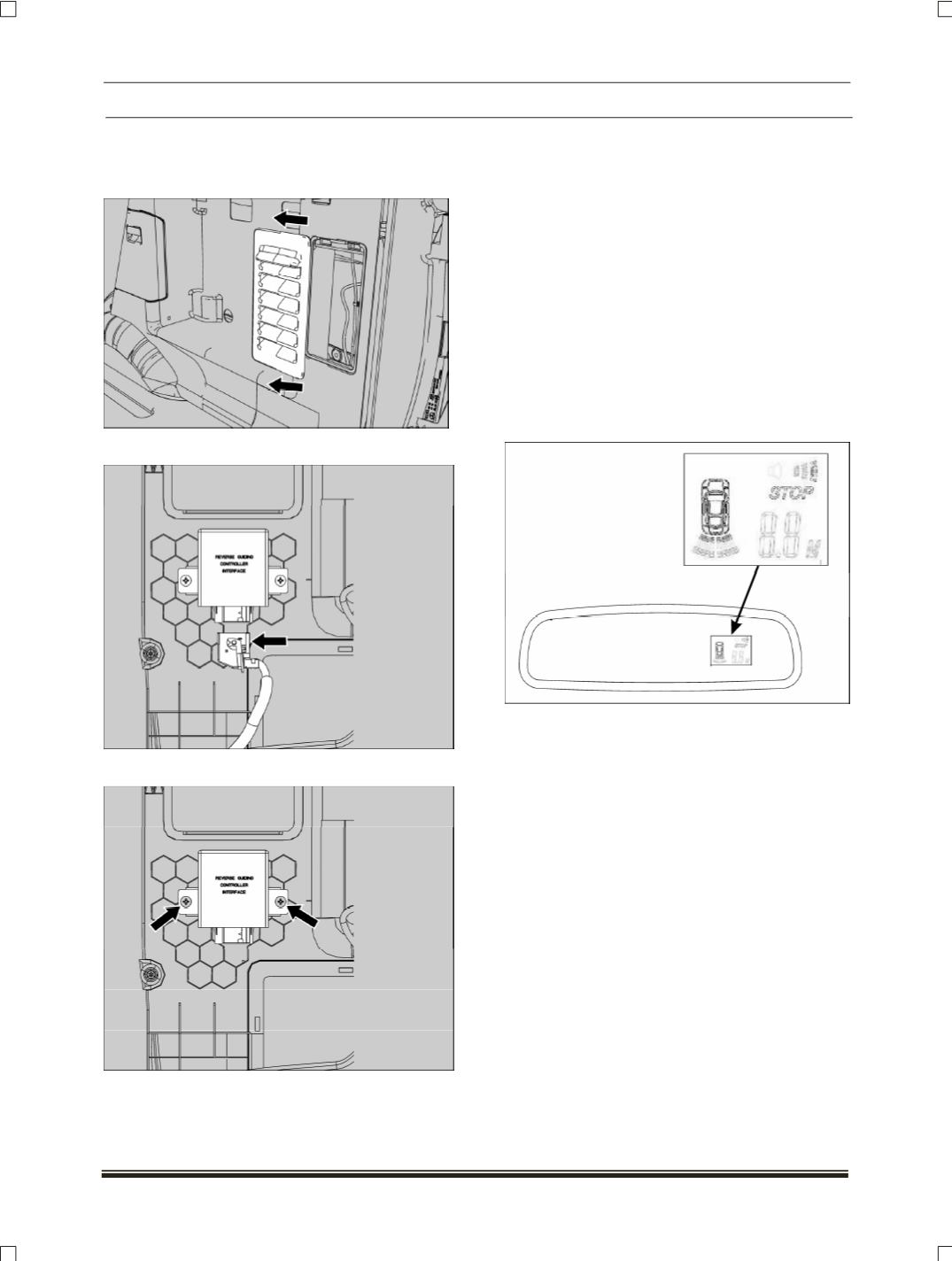

REMOVAL:
1.Pry out the rear quarter bulb access cover RH.(
Snap fitted
).
2.Disconnect electrical connection.
3.Remove two mounting bolts of controller.
4.Take out the controller.
REFITMENT:
1.Fit the controller on the rear quarter trim side
facing RH.
2.Tighten the two mounting bolts.
Tightening torque for Bolts -0.6 Kgm.
3.Connect the electrical connection.
4.Fit the rear quarter bulb access cover RH.
3. IRVM:
The IRVM display is used to display the
information provided by reverse parking system
with ultrasonic sensor system.
When Reverse Gear is applied, Display will switch
to the reverse parking system with ultrasonic
sensor display on the IRVM screen.
For Removal & fitment details refer body
section.
