ELECTRICAL
192
8.14 INSTRUMENT CLUSTER
8.14.1. DESCRIPTION:
Instrument cluster provides different vehicle related functional and warning information to driver in
terms of switching on the telltales and flashing the text message in the driver information centre (DIC).
It is located on the dashboard in front of the driver seat.
The Instrument Cluster has following features,
1.1 Four Analogue Gauges :
1. Speedometer
2. Tachometer
3. Temperature gauge
4. Fuel gauge
1.2 Driver Information centre
(Message Centre)
:
Message Centre has following features,
1.Main Odometer
2.Trip meter (
A and B
)
3.Outside Ambient Temperature
4. Warning messages display (
i.e. brake fluid low, Park fluid low
.)
1.3 Tell tales (
Functional and Warning Indicators
)
8.14.2. INSTRUMENT CLUSTER VARIANTS:
SR. NO.
INSTRUMENT CLUSTER TYPE
1
Diesel 2.2L CDRI (KMPH )

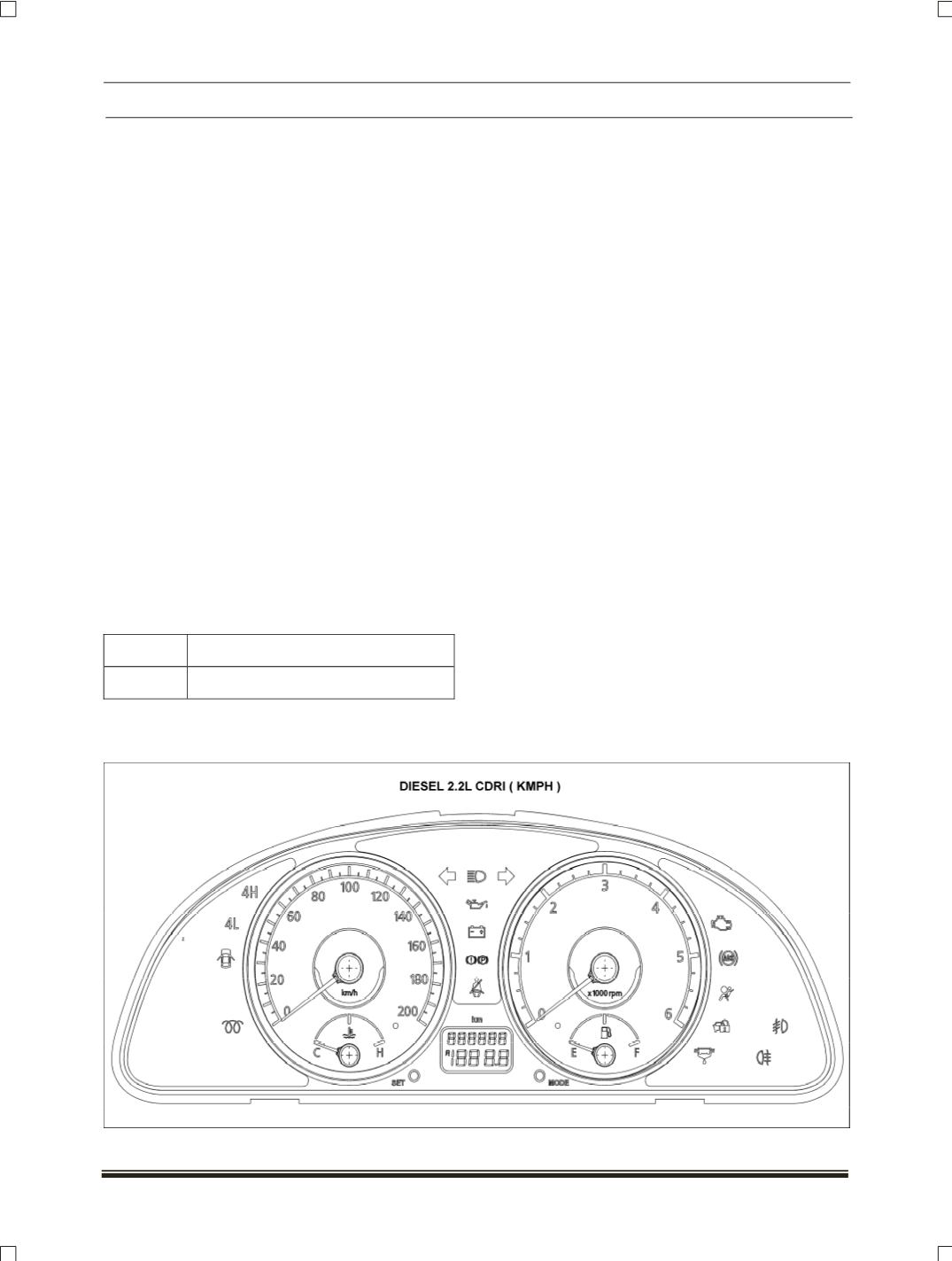

8.14.3. ARTWORK DESIGN (
RENDERING
):
Diesel 2.2L CDRI (KMPH)
