ELECTRICAL
65
ELECTRICAL
8.9
WIPER AND WASHER SYSTEM
8.9.1 FRONT AND REAR WIPER AND WAHSER SYSTEM COMPONENT LOCATIONS

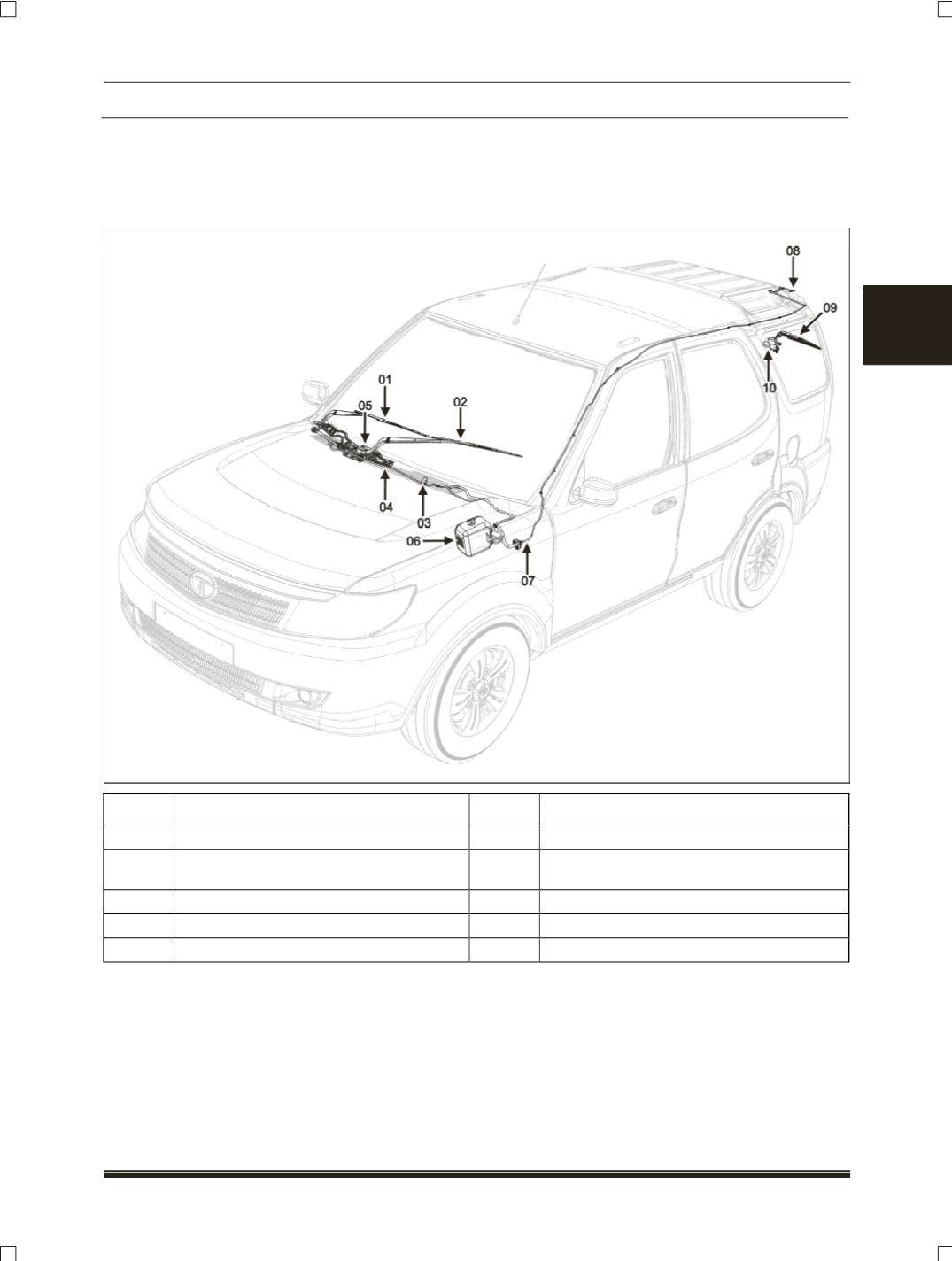

The illustration below locates and identifies the main components in the wiper and washer system,
which is operated by LH side stalk of a combi-switch.
SR. NO. DESCRIPTION
SR. NO. DESCRIPTION
01
Front Wiper Arm And Blade Driver Side.
06
Washer Bottle 3.0 Lit
02
Front Wiper Arm And Blade Co-Driver
Side.
07
Washer Hose Rear
03
Front Nozzle
08
Rear Nozzle
04
Washer Hose Front
09
Assy Wiper Arm And Blade Tailgate Glass
05
Assy Wiper Motor Front
10
Assy Wiper Motor Rear
DESCRIPTION:
The wiper system comprises two front wipers and one rear wiper which are powered by electric
motors. The washer reservoir is located above the front left hand wheel arch and is fitted with two electric
pumps. Each pump supplies washer fluid to either the front or rear windshield glass. Operation of the front
and rear wipers and washers is controlled by BCM and the driver using switches located on a combination
switch stalk.
