812 / 1236
ELECTRICAL
34

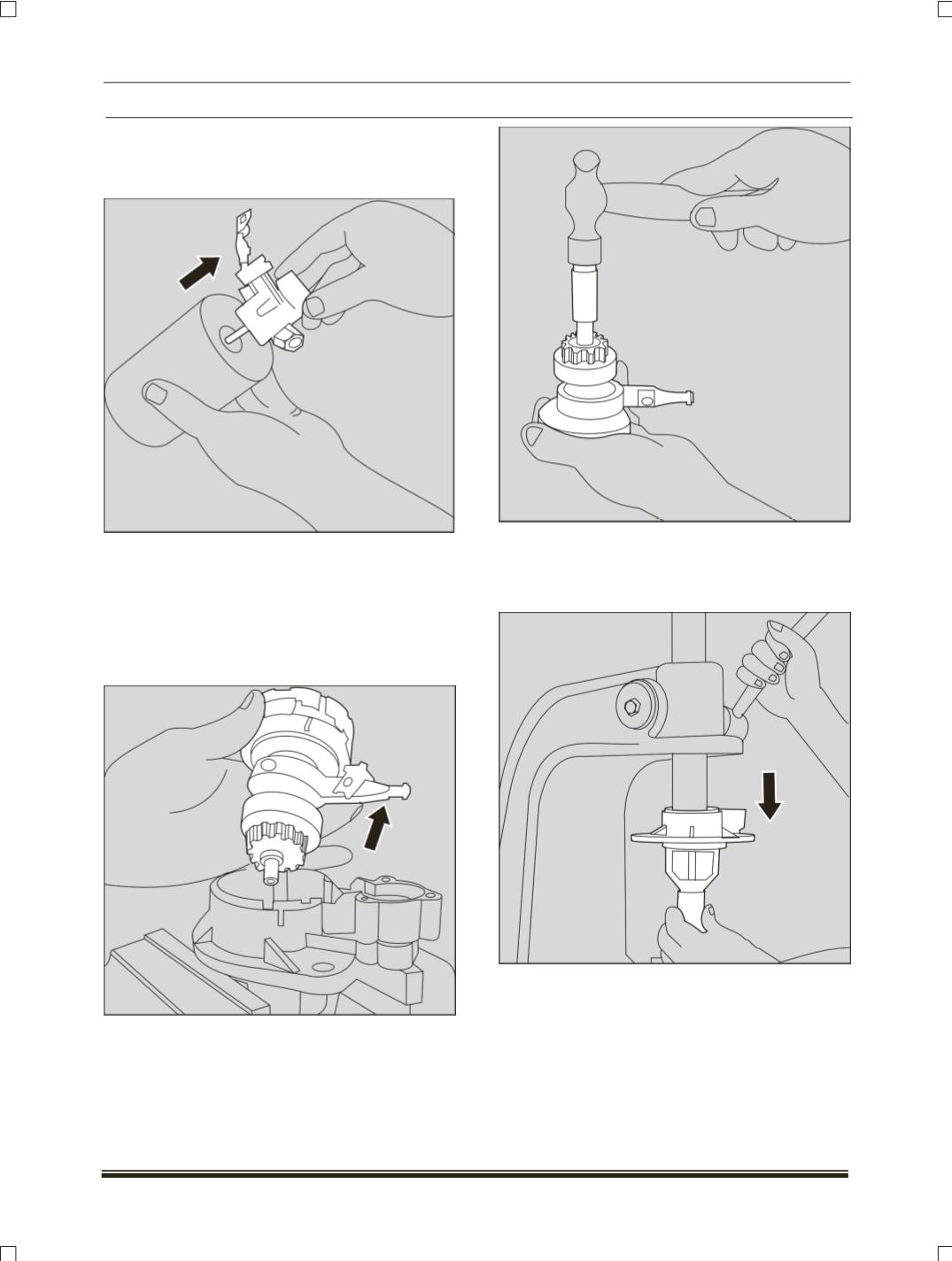

and slide the brush plate on to the tool. Pull the
tool with the brush plate off the armature shaft.
6.Pullout the armature from the stator frame.
7.Mark the relative positions of the drive end
housing, the ring gear plate and the ring gear
cover plate (
parts of epicycloid gear train
) with
respect to each other using a marker.
8.Pullout rubber seal. Pullout bearing pedestal.
Remove epicycloid gear with overrunning clutch
and fork lever from drive end bearing housing.
9.Using mounting sleev 03-KDAL 5028 and a light
hammer, knock back the stop ring. Using
suitable pliers, bend the ends of the retainer
wide apart. Remove retainer. Remove drive
pinion from the drive shaft.
10. Using an Arbor Press, press out sintered bush
from drive end bearing housing using tool H-
S/KDEP 1132/0/1 and replace with a new one
using the same tool.
11.Using an Arbor Press, press out bush from
commutator end shield using tool H-S/KDEP
1132/0/1 and replace with a new one using
the same tool.
