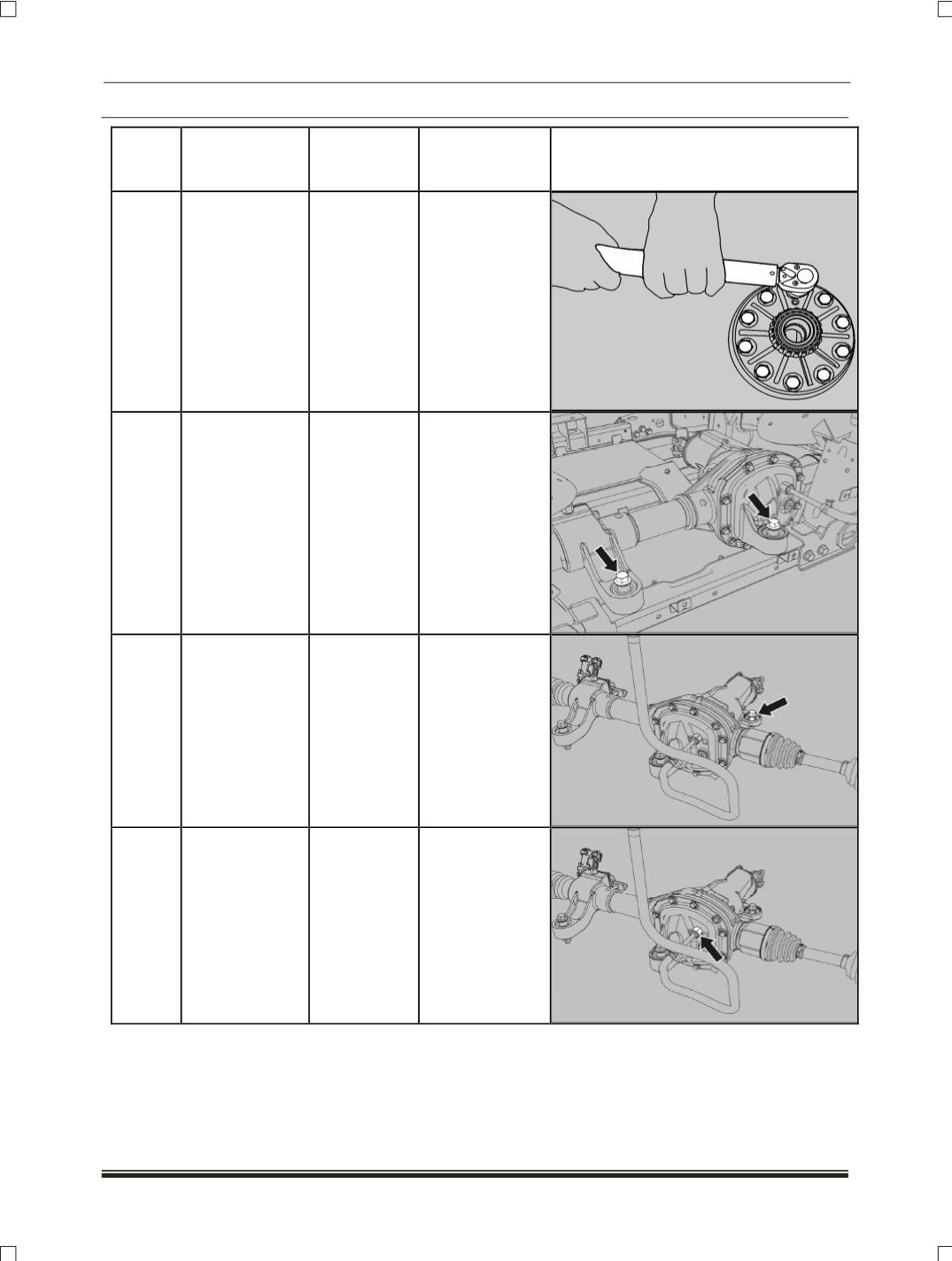

FRONT AXLE (4X4)
6
SR. NO. DESCRIPTION FASTENER
TIGHTENING
TORQUE
(Kg-m)
LOCATION
11
Ring gear screws
*A/F 18, 21mm
Long, 13mm
Thread
9.5 ~ 12.2
12
Front axle front
mounting hex.
flange bolt
M14 x 1.5 x 85
14
13
Front axle Rear
mounting hex.
flange bolt
M12 x 1.5 x 60
11.5
14
Adaptor for
breather tube on
the front cover
plate
–
6 ~ 8
