34 / 1236
ENGINE
2

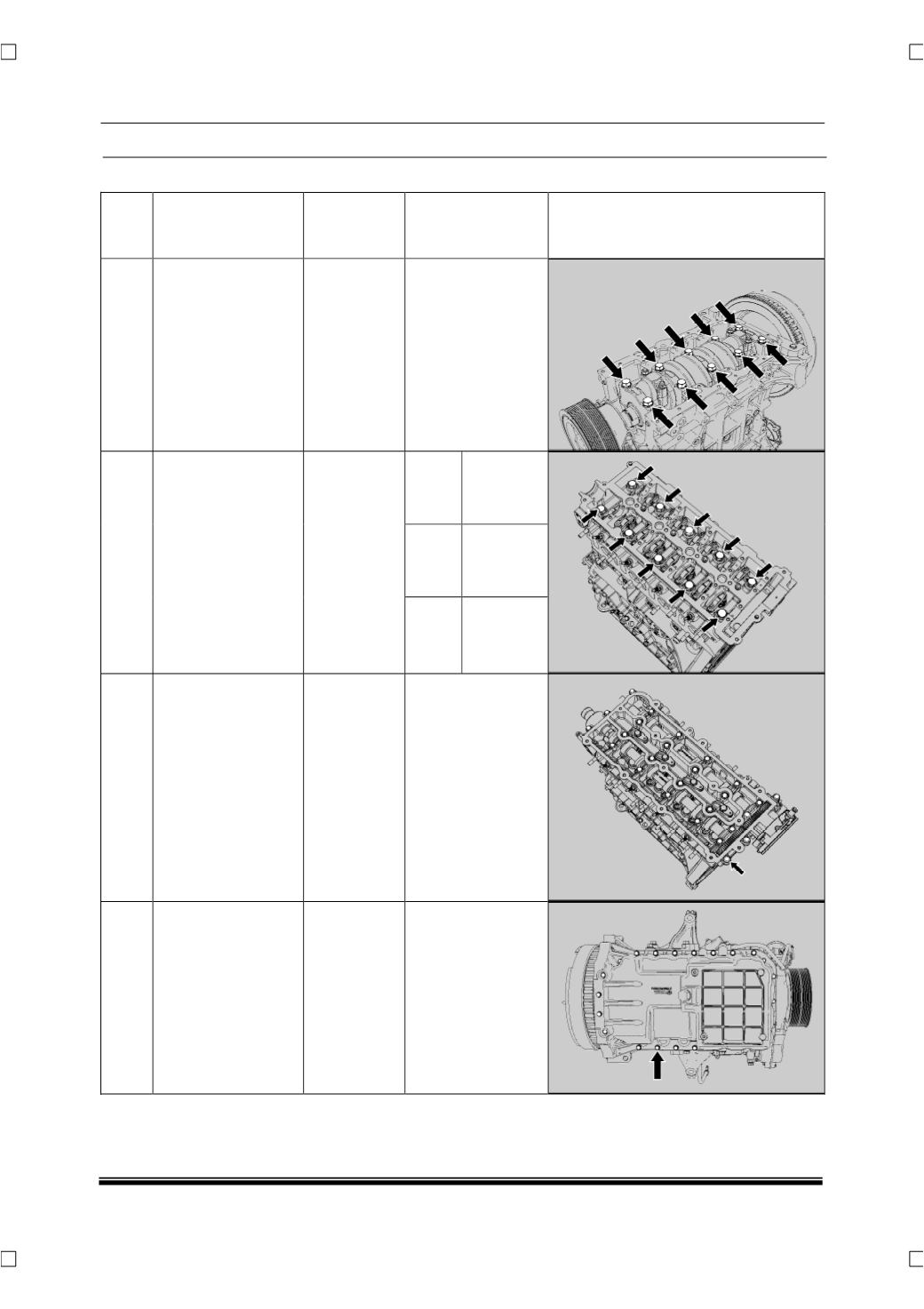

2.1.1.2 TIGHTENING TORQUES:
SR.
NO.
DESCRIPTION
FASTENER
TYPE
TIGHTENING
TORQUE
(Kg-m)
LOCATION
1
Main bearing cap
mounting
Bolt
M12 X 1.5
5 ± 0.5 + 90
o
±10
o
2
Cylinder head
mounting
Bolt*
M12 X 1.5
,12.9
Step
1
6 ± 0.5
Torque
Step
2
90
o
± 5
o
angle
Step
3
90
o
± 5
o
angle
3
Bearing frame
mounting on cylin-
der head
Bolt*
M6
1.2
4
Oil sump
Bolt
M6
1+0.2
