ENGINE
114
ENGINE
2.1.5.4 MAINTENANCE
2.1.5.4.1 ON VEHICLE REPAIRS:

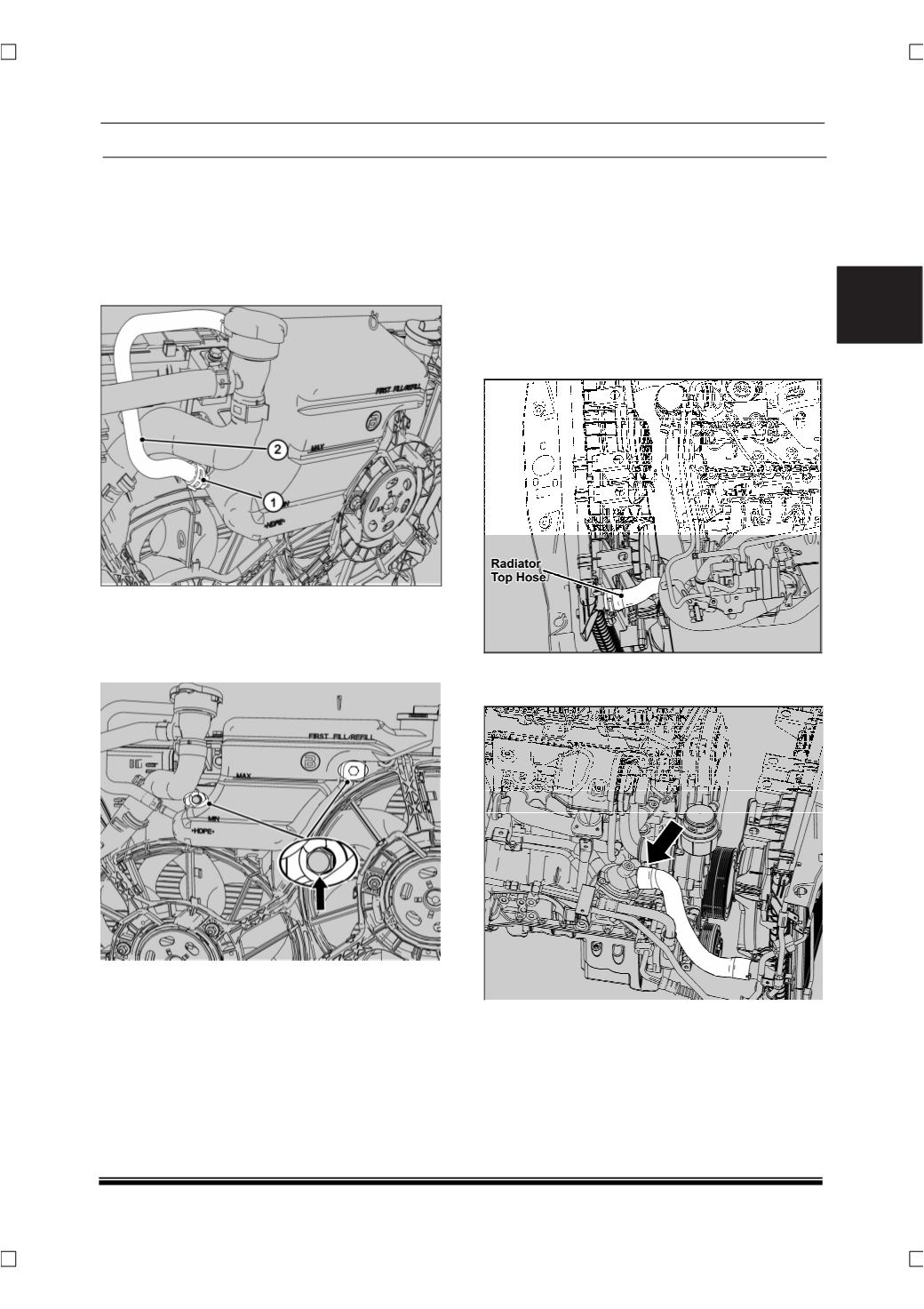

A. RECOVRY BOTTEL REMOVAL
1. Remove the spring band clamp (1) pull out the
hose (2) from coolant bottle end and drain the
coolant in the bottle.
NOTE
Plug the opening with suitable cap.
2. Loosen and remove two mounting bolts and take
out the coolant recovery bottle from vehicle.
FITMENT:
For fitment follow the reverse order of removal.
B. RADIATOR REMOVAL
1. Drain the coolant and remove the Coolant tank.
(For procedure refer “Coolant replacement” in
Engine maintenance section)
!!
WARNING
Don’t open the cap when it is hot.
2. Disconnect the radiator top hose UCL to radiator
at radiator end
3. Remove the bottom hose UCL to thermostat
at the radiator end.
