1164 / 1236
HVAC
6

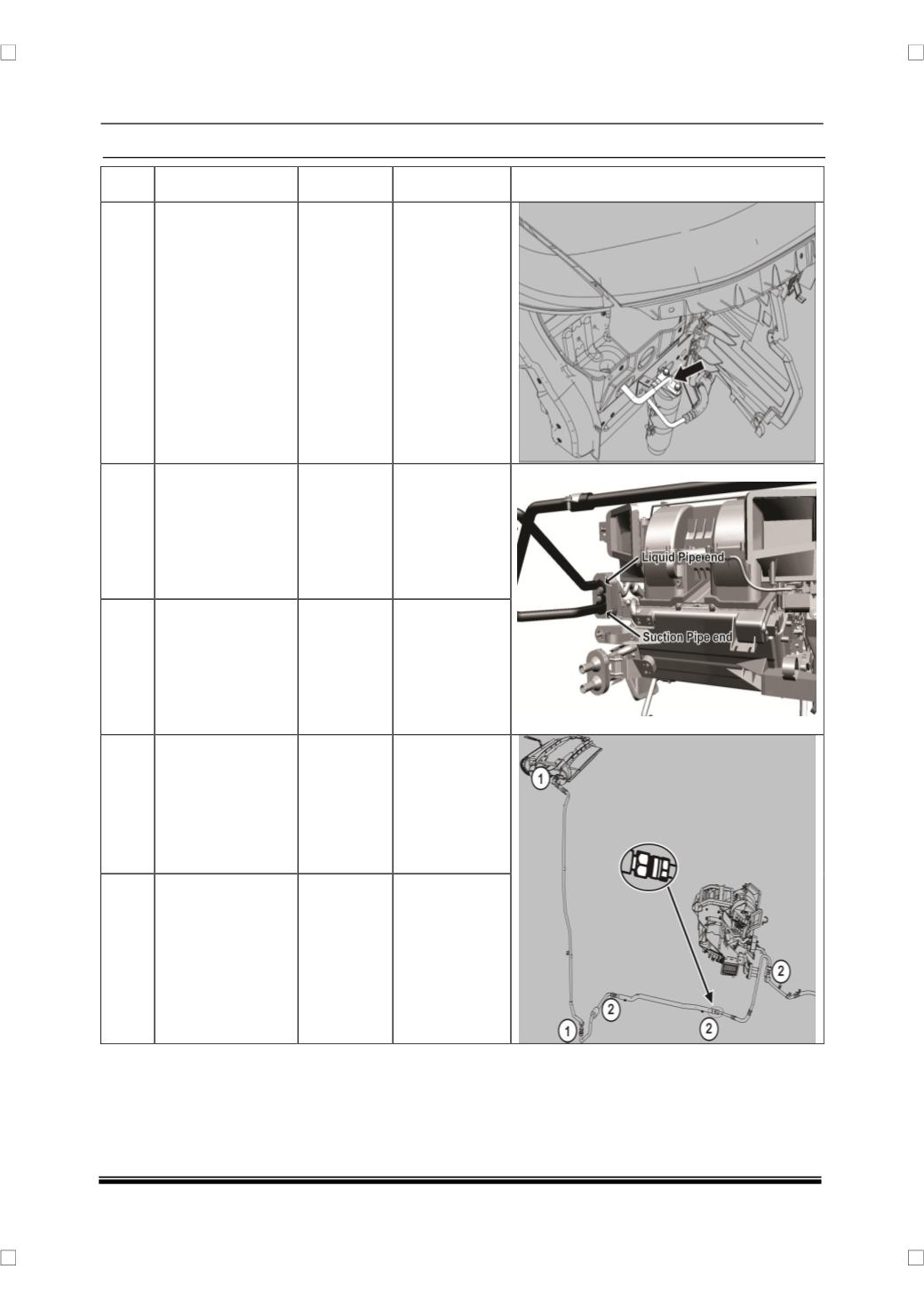

SR NO. DESCRIPTION
FASTENER
TIGHTENING
TORQUE (N-m)
LOCATION
8
Liquid line Inlet &
Outlet on Receiv-
er/Drier
M6X25
4 ~ 7
9A
Liquid pipe end on
TXV
(Front)
M6X25
8 ~ 12
9B
Suction pipe end on
TXV
(Front)
M6X30
8 ~ 12
10A
Suction pipe joints
NO-1
±
30 ~ 34
10B
Suction pipe joints
NO-2
±
30 ~ 34
