E. FRAME DETAILS
Frame used in vehicle is hydro-formed type. Ladder Type cranked frame with boxed section members both
welded and bolted cross members.
BOLTED CROSS MEMBERS
The 4X2 vehicle is fitted with five cross members
(1-5)
and 4X4 vehicle is fitted with four cross members
(1-
4)

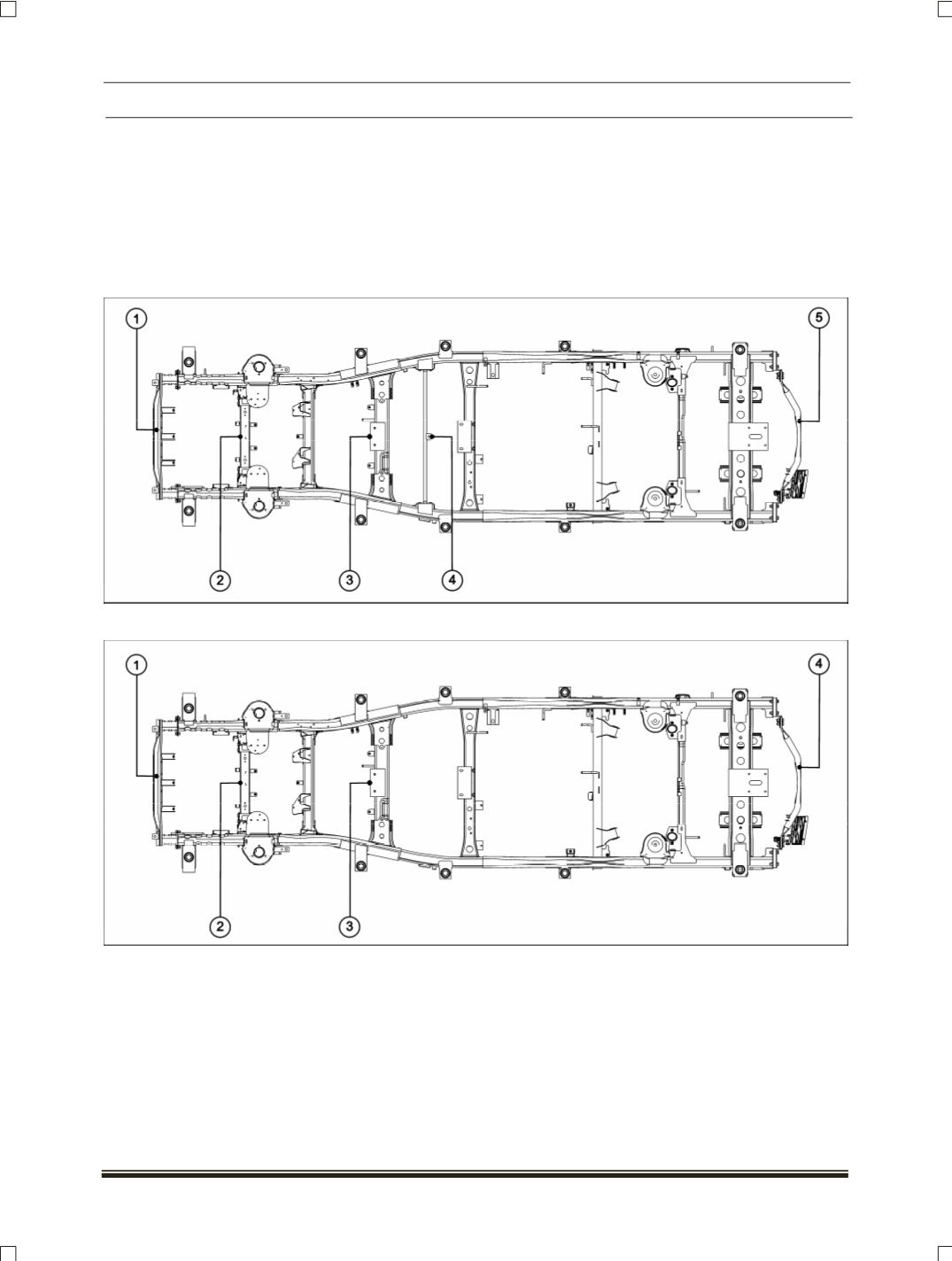

which are bolted with the long members of the frame marked in figure below.
4X2
4X4
