ENGINE2.2LDICOR

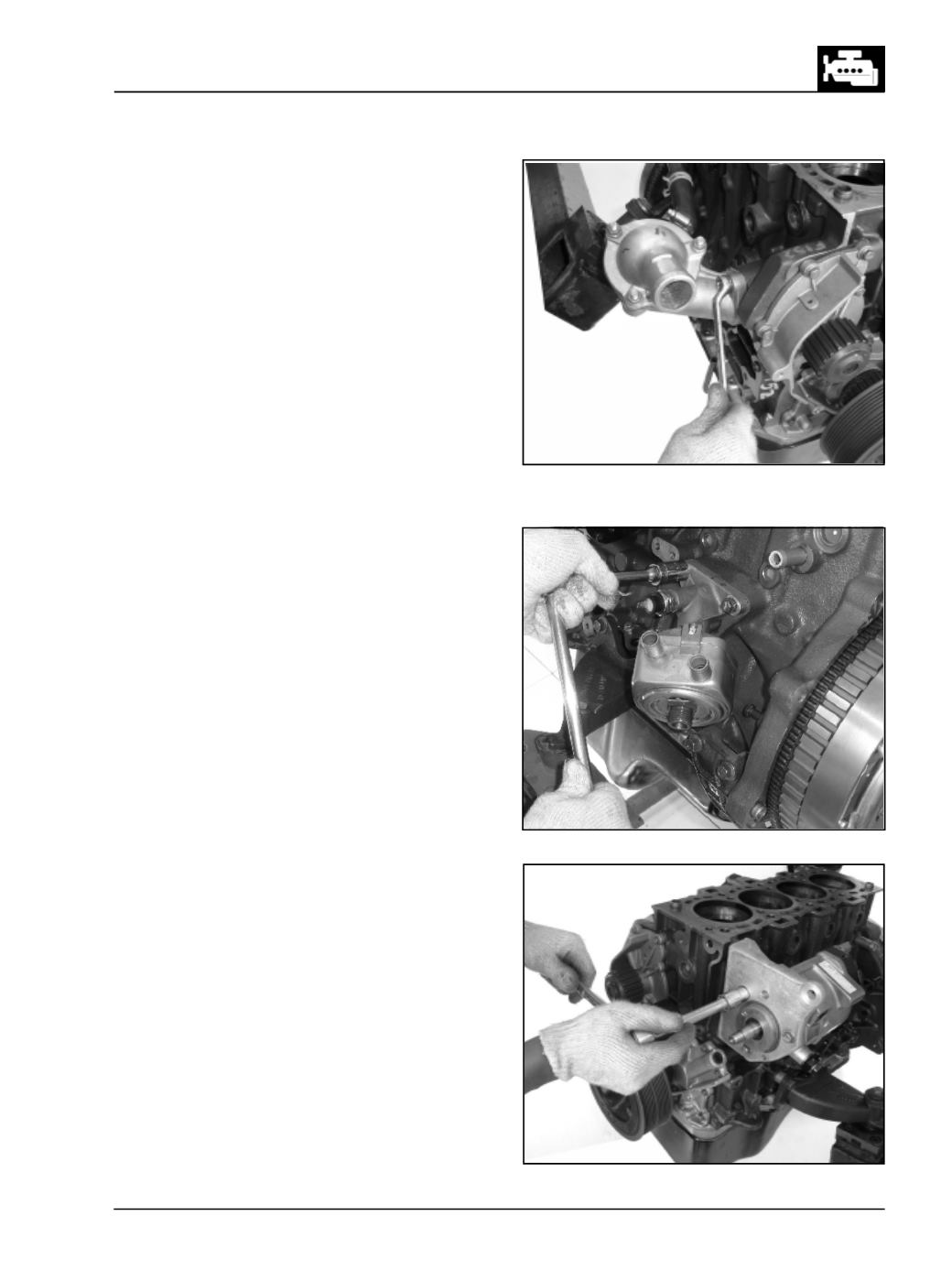

Fig. 70
l
Remove pipes / hoses connected to thermostat
assly.
l
Remove the thermostat housing assembly. (Fig. 70)
l
Remove the oil cooler assembly. (Fig. 71)
DismantlingofCylinderBlocksubassemblies
Fig. 72
Fig. 73
l
Remove the HP pump (Fig. 73 & 74)
