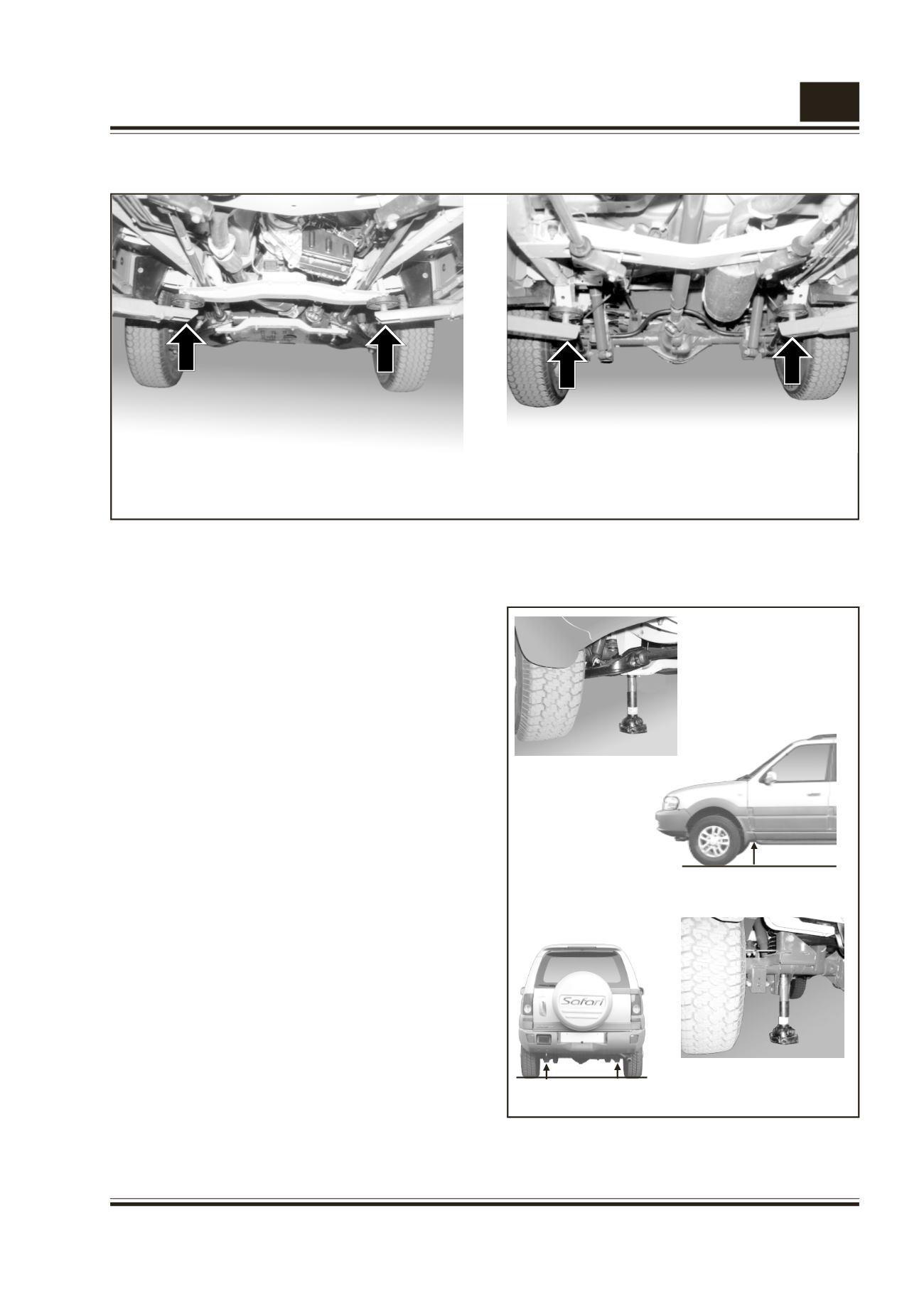

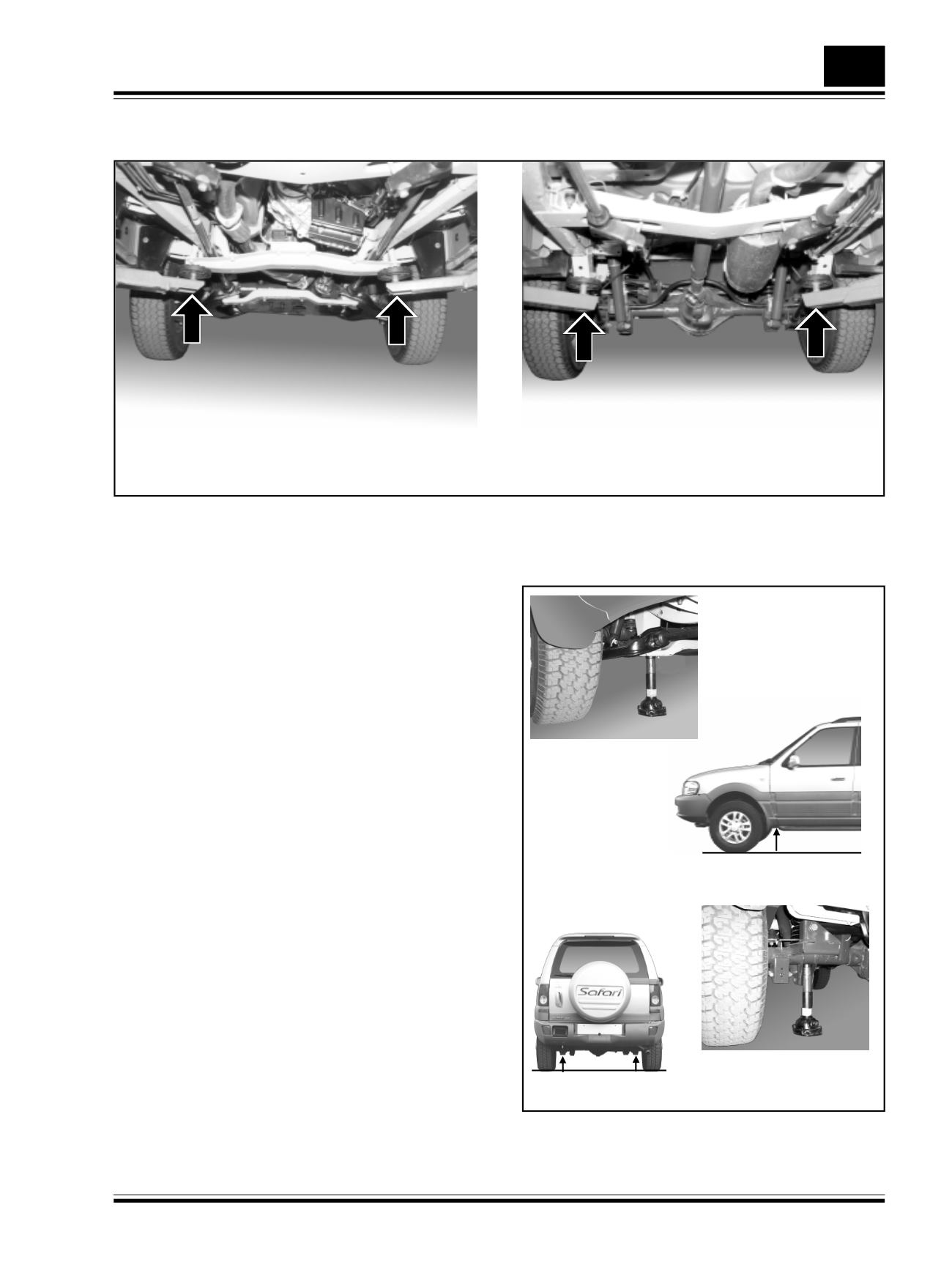

Front Lifting Points

Rear Lifting Points

FRONTJACKINGPOINT

(Below Long Member)

REARJACKINGPOINT

(Below Rear Axle Tube)

LIFTINGANDJACKINGPOINTS

USINGTHEHOIST

Make sure you follow the hoist manufacturers

instructions while lifting the vehicle on two pole hoist

Fig. 12.

Always ensure vehicle balance in service while

applying hoist to under body.

Care should be taken that the hoist arm is not in

contact with the bracket, brake or fuel pipes etc.

Before servicing, make sure to lock the hoist after the

vehicle is lifted up.

When using the floor jack :

Use the jacks at the locations indicated Fig 13.

Do not apply the jack against any part which may get

deformed.

If front end or rear end of the vehicle is to be jacked

ensure the wheels on ground are blocked with wheel

chocks for safety.
