7
PROPELLER SHAFT
CONSTRUCTION

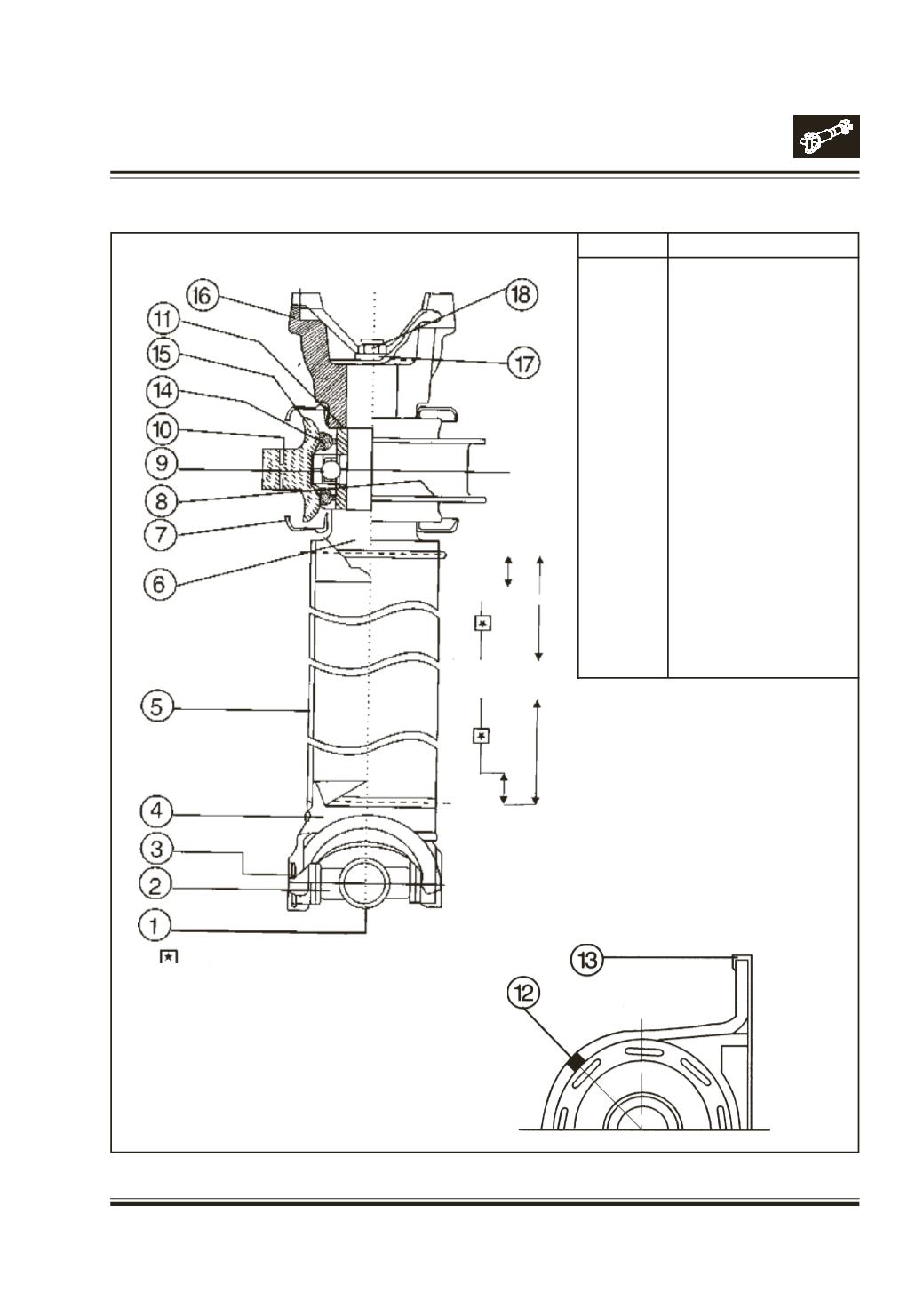

Fig. 1 4 x 2 Front propeller shaft
CUP ASSY.
CROSS
CIRCLIP
TUBE YOKE
TUBE
MIDSHIP TUBE SHAFT
SLINGER
BRACKET
BEARING
RUBBER BEARING
SPACER
RETAINER
CLAMP
DUST SEAL
DUST SEAL RETAINER
INT. END YOKE
WASHER
NUT
SR. NO.
DESCRIPTION
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
POSITION OF RETAINER QTY. 2
NO. AT @ 30
0
OPP. SIDES
30
0
BALANCEWEIGHT LOCATION
REF.
REF.
REF.
25.4
25.4
89.9
89.9
