EXHAUSTSYSTEM

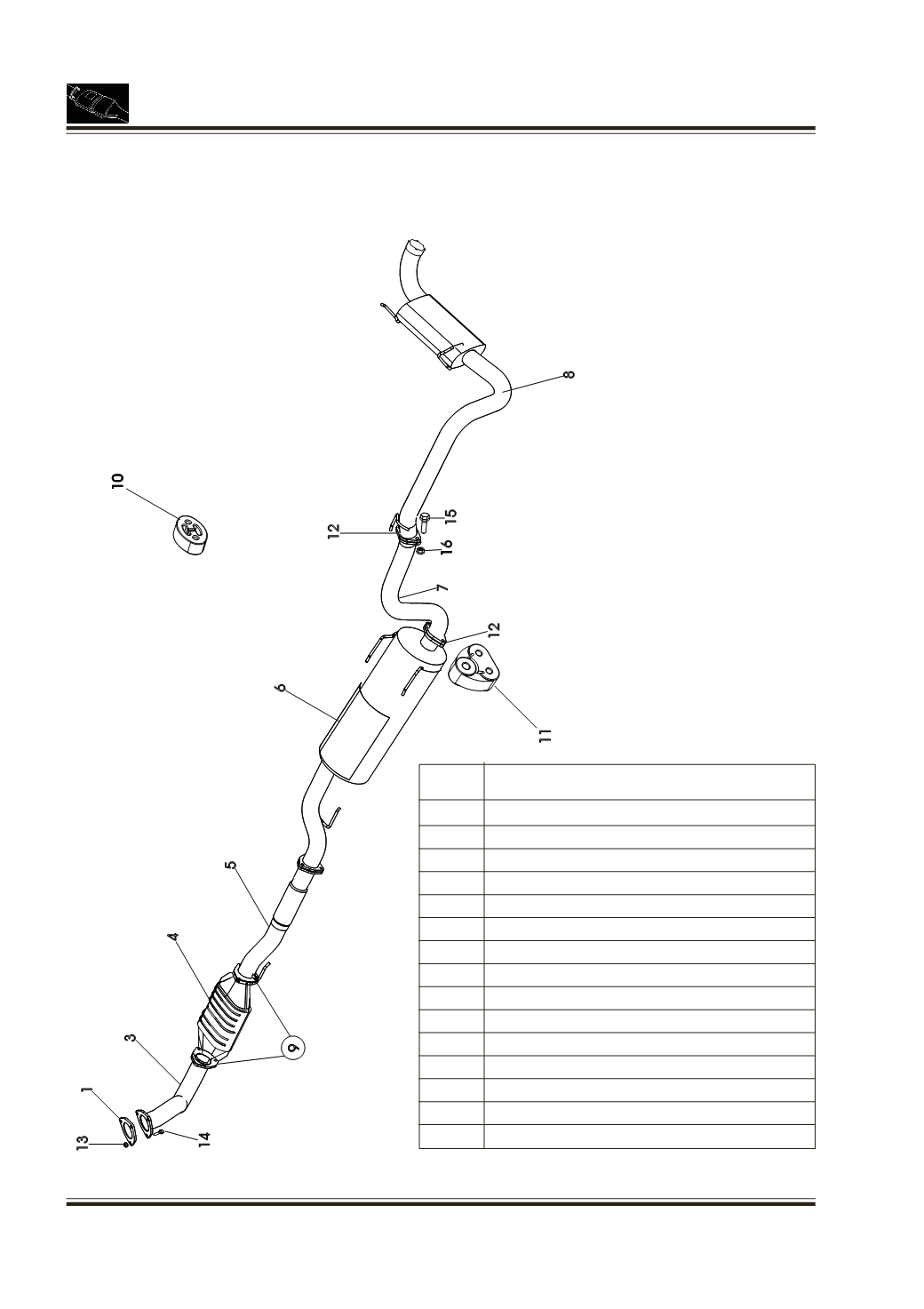

EXPLODED VIEW OF EXHAUST SYSTEM (DICOR ENGINE BS-III)
1
Assy. Gasket
3
Assy. exhaust Pipe Front
4
Assy Cat Con
5
Assy.intermidete Pipe With Flexi. bellow
6
Assy Exhaust Pipe With Main Silencer
7
Assy.exhaust Pipe Rear(after Main Siln)
8
Assy.tail Pipe With Post Silencer
9
Gasket
10
Rubber Hanger
11
Rubber Hanger
12
Assy Gasket (Exhaust Pipe)
13
Hex Fl. Bolt
14
Hex Fl. Nut
15
Hex Fl. Bolt
16
Hex Fl. Nut
Item No
Description
