CLUTCH
SR. NO.
DESCRIPTION
1
240 DIA. DRIVEN PLATE ASSY.
2
240 DIA. CLUTCH COVER ASSY.
3
SPRING WASHER
4
HEX. SCREW
5
ASSY. CLUTCH RELEASE FORK
6
ASSY. CLUTCH RELEASE SLEEVE PIN
7
CLUTCH RELEASE BEARING
8
LOCKING WIRE
9
THRUST PAD
u
Torque valve kgm.
u
Non reusable

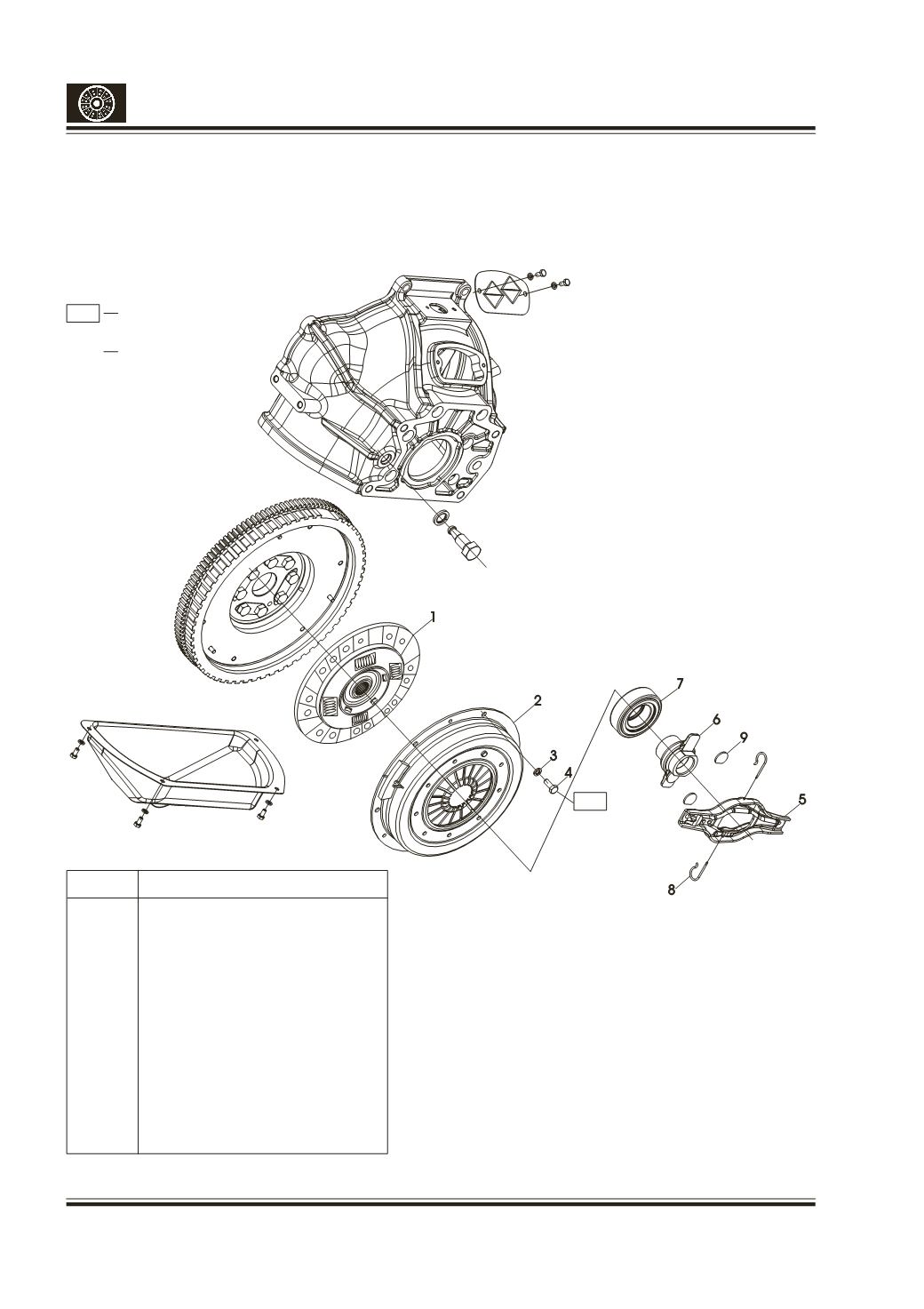

EXPLODED VIEW OF CLUTCH DICOR ENGINE
3.2
