ENGINE
31

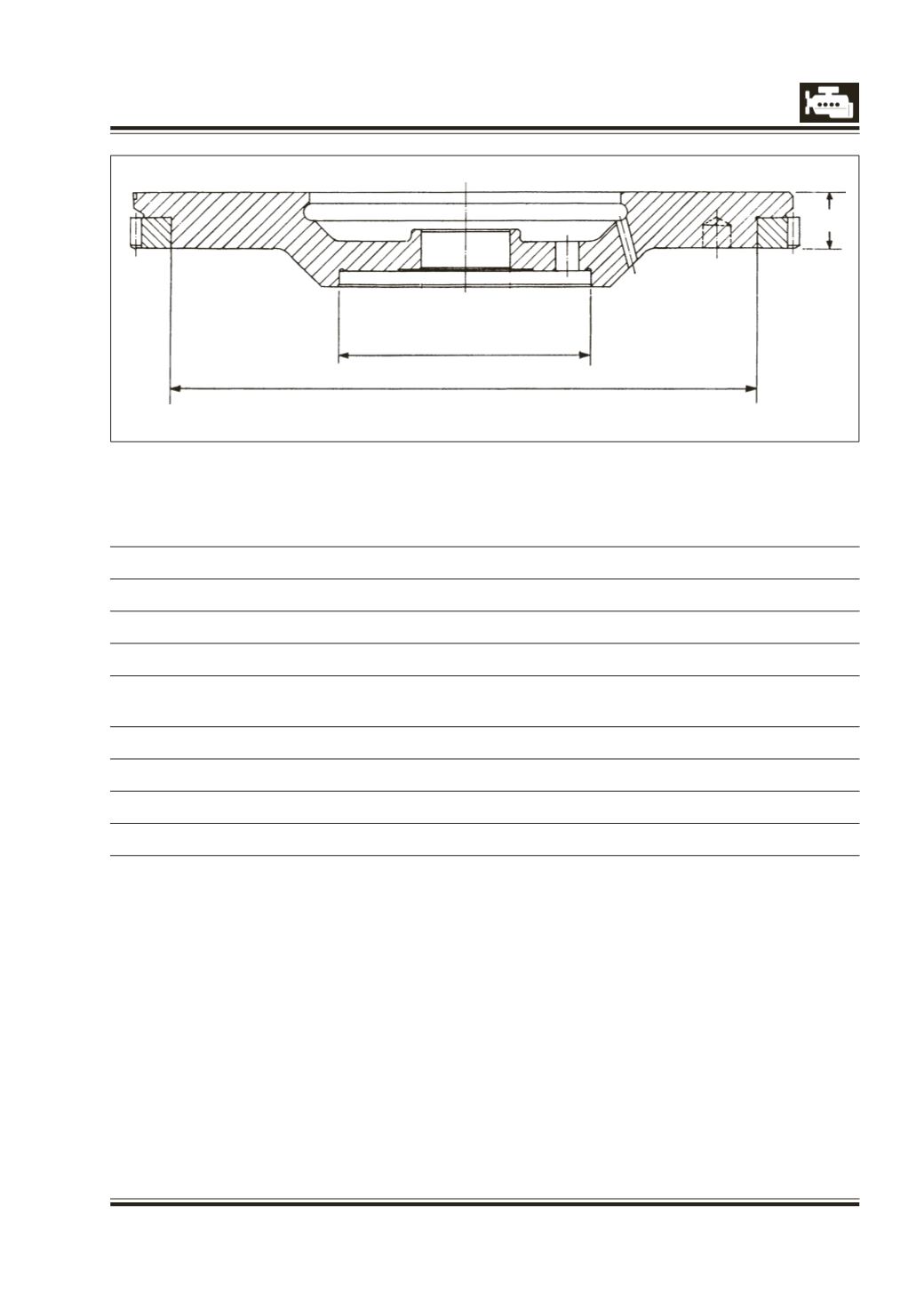

Fig. 10
FLYWHEEL :
Fig. 10
Diameter for holding starter ring gear on flywheel ‘C’
305.53/305.39
mm
Ring gear inside diameter ‘C’’
304.83/304.69
mm
Diameter for holding crankshaft flange ‘B’
130.040/130.000
mm
Maximum permissible material removal on friction face
1.0
mm
Surface finish on friction surface
3.2
Micron in Ra
Permissible runout on friction face when measured on a diameter of
0.10
mm
240mm
Permissible radial runout of flywheel on diameter for starter ring gear
0.05
mm
Width of flywheel ‘D’
44
mm
Bore dia for drive-shaft spigot bearing ‘A’
46.996/46.980
mm
Permissible imbalance of flywheel
20
cm-gm.
A
B
C
D
