ii) BLOWER RESISTER

The speed of the blower can be controlled by em-

ploying either a Blower resister. In ZICA the blower

resister is used in models with manual HVAC.

A blower resister used in ZICA is for a four-speed

control of blower speed. This is achieved by having a

combination of three different resistances. The blow-

er resister is placed in the intake air flow to allow it to

dissipate heat freely.

It is located on the lower side of the HVAC unit to the

right of the blower.

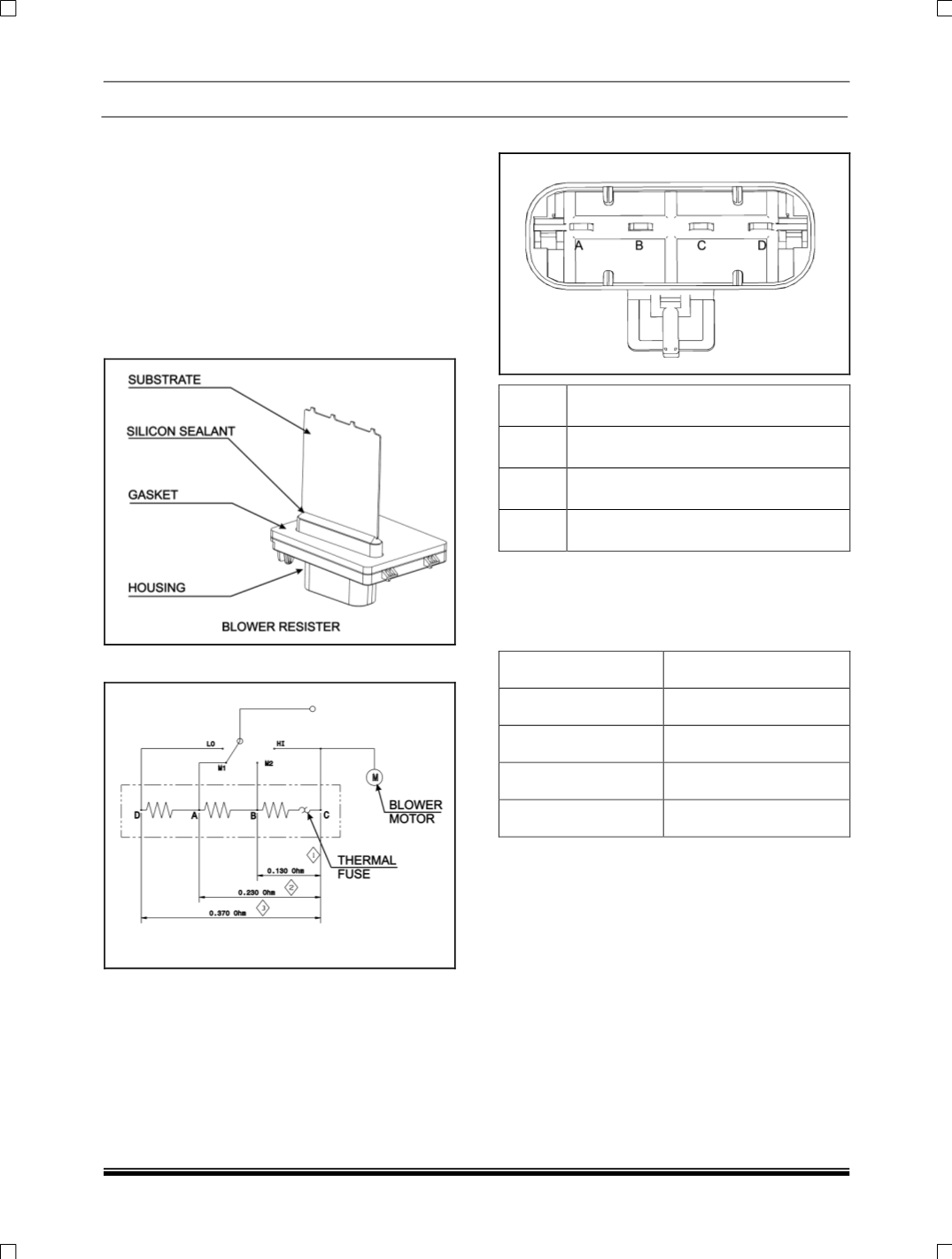

CIRCUIT DIAGRAM

PIN OUT

A

Medium Low Resistance

(ML)

B

Medium High Resistance

(MH)

C

High Speed

(directly engaged)

D

Low speed resistance

INSPECTION

Measure the current at the harness side connecter at

4 speeds by rotating the blower switch. The current

measurement should as per the table below.

FAN SPEED

CURRENT IN AMPS

1

st

Speed

3.5 – 5.9

2

nd

Speed

6 – 8.5

3

rd

Speed

10.5 – 13.5

4

th

Speed

14 – 25.0

The resistance can also be checked. For resistance

values refer circuit diagram of blower resistor.
