3 CYL DIESEL ENGINE
152
Pin
Function Description
68
A/C Trinary Switch
69
Boost Pressure Sensor
70
EGR Position Feedback
71
Fuel Temperature Sensor
72
Coolant Temperature Sensor
73
TMAP
74
Water In Fuel Switch
75
5v Sensor Supply 100ma #1*
76
5v Sensor Supply 100ma #2*
77
5v Sensor Supply 100ma #3*
78
5v Sensor Supply 50ma
79
Vehicle Speed Output
80
Not Used
81
Not Used

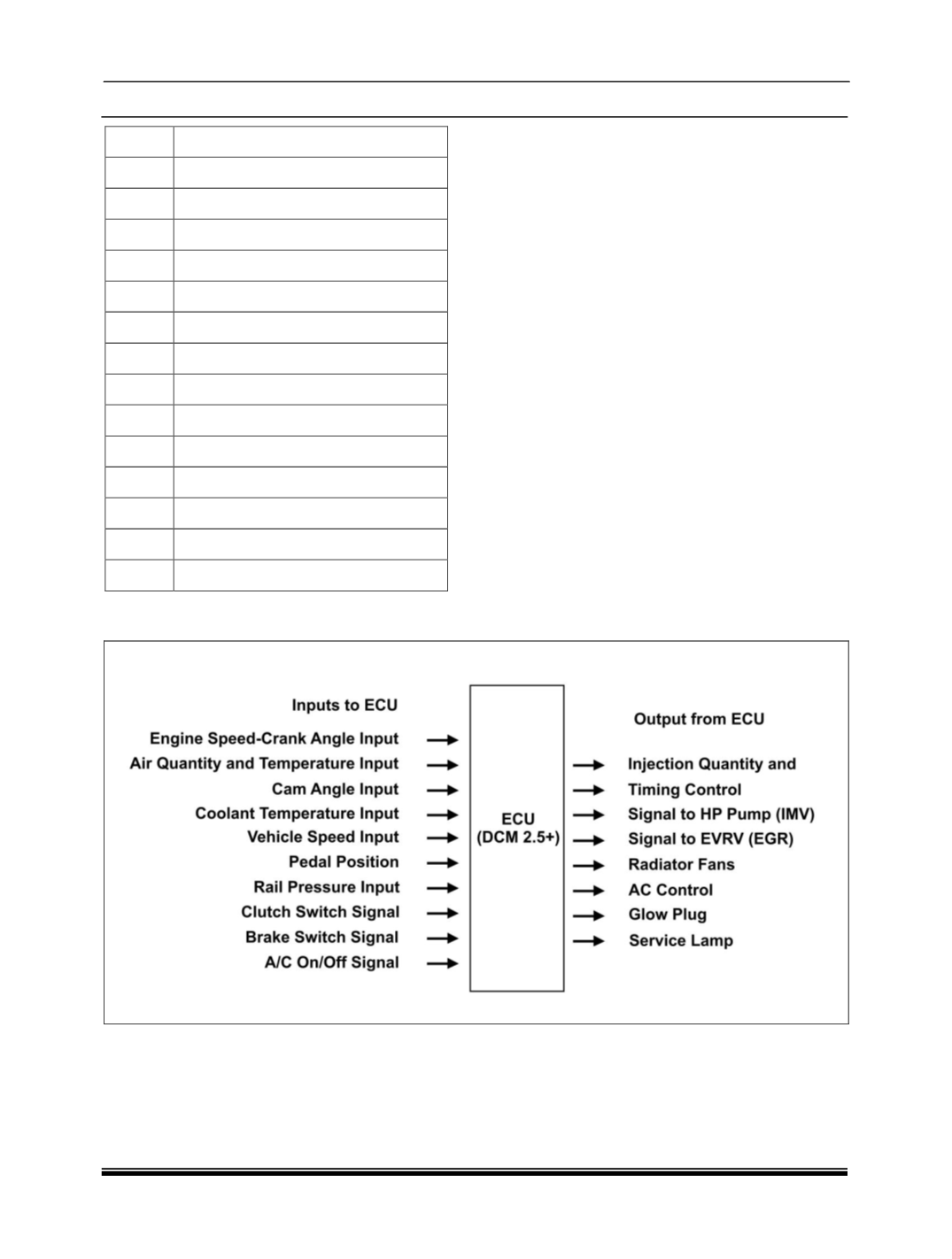

Block Diagram :
