ZICA

3 CYL DIESEL ENGINE

140

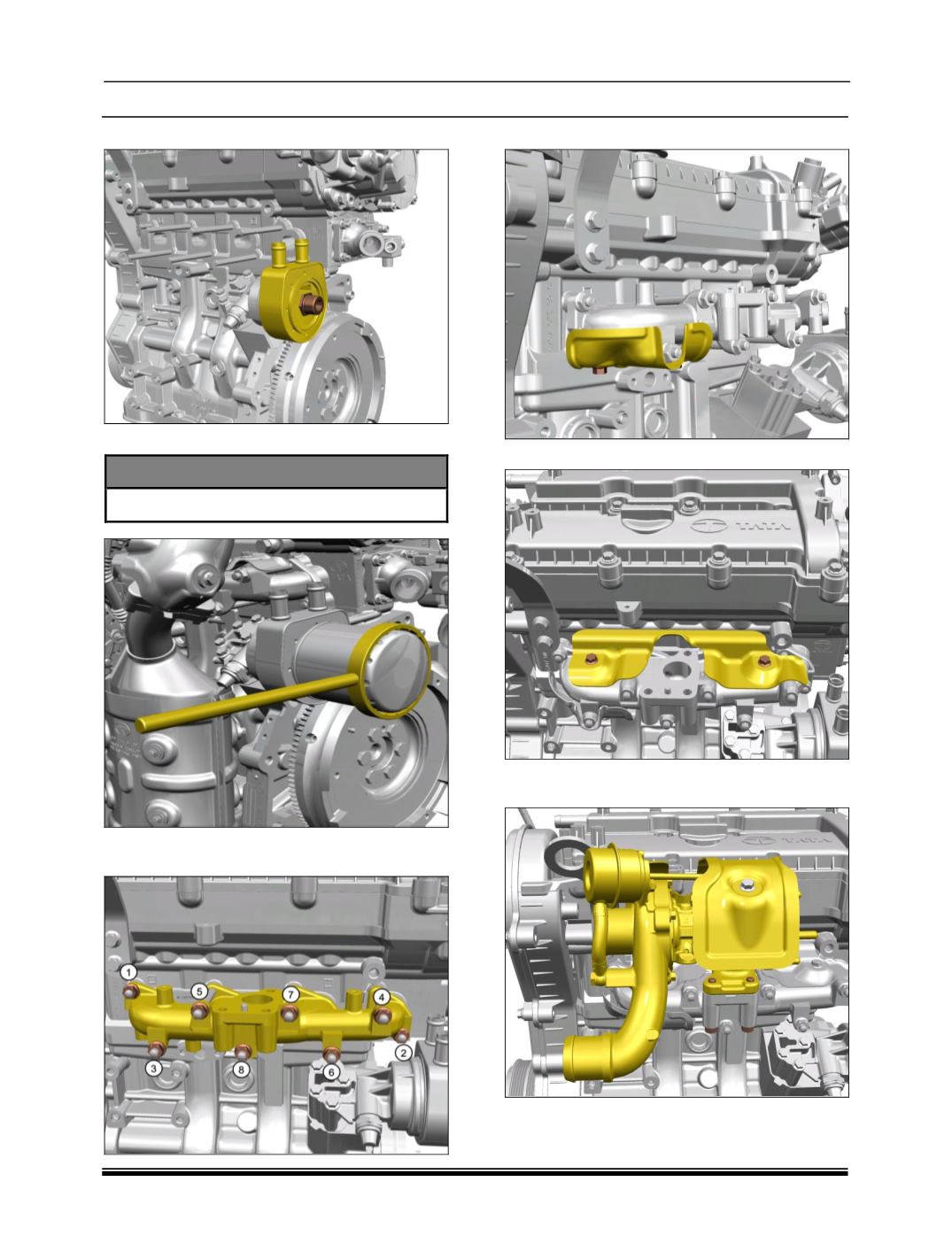

13. Install Oil cooler assembly with adaptor.

14. Install oil filter body using special tool.

SPECIAL TOOL



Spanner for Oil Filter -: 2829 5890 18 01

15. Install exhaust manifold to cylinder block with

gasket and tightening sequence.

16. Install bottom heat shield to exhaust manifold.

17. Install top heat shield on exhaust manifold.

18. Install Turbocharger with gasket and heat

shield.
