SAFARI

912 / 1525

57
ENGINE2.2LDICOR

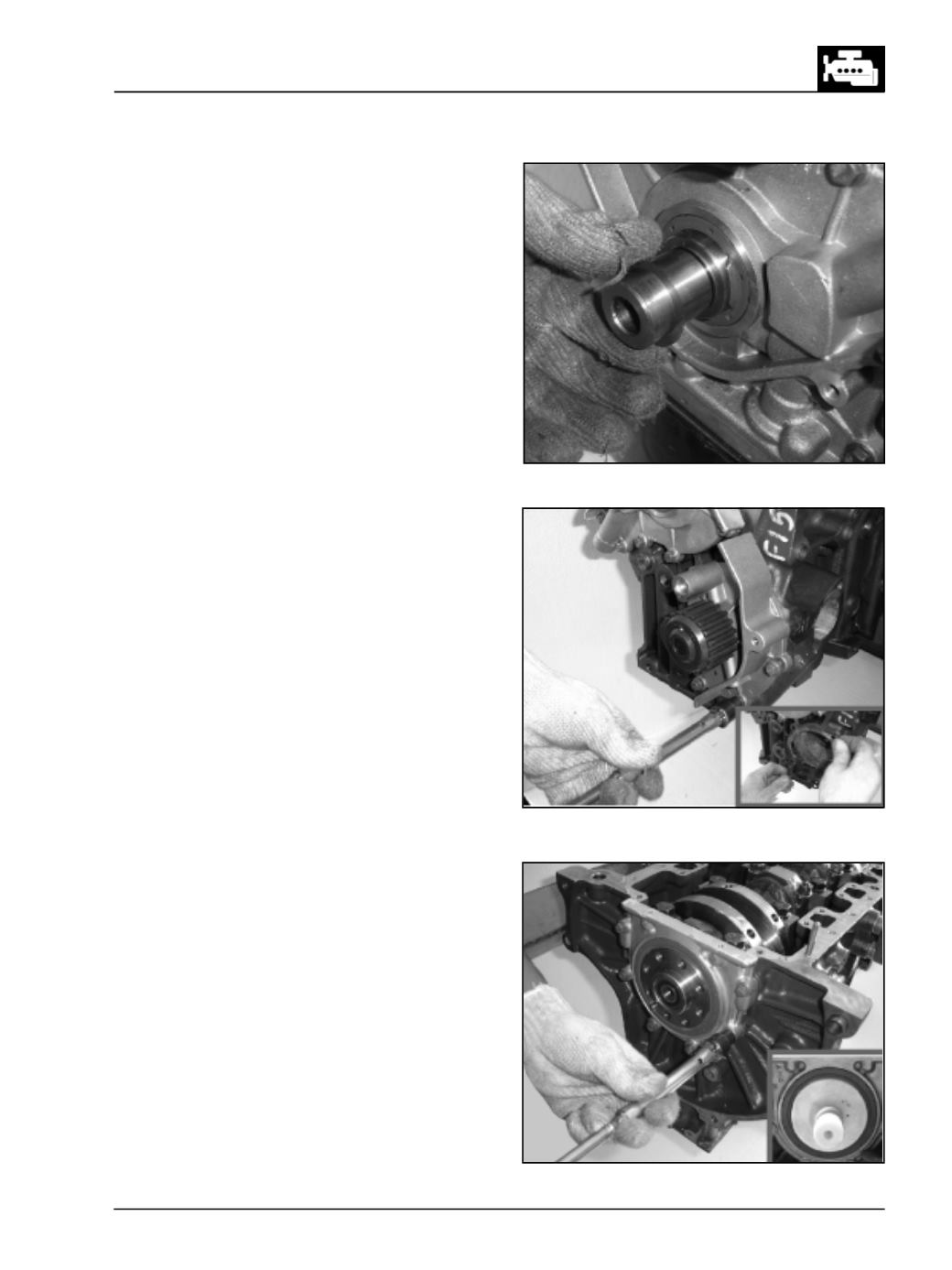

Fig. 128
l Fit the crankshaft gear friction plate. (Fig. 128)
l Clean the mating surface of crankcase & rear
cover.
l Fit the oil seal to the crankcase rear cover using
the special tool (part no. 2653 5890 06 06). (Fig.
130)
l Assemble the crankcase rear cover & tighten the
mounting bolts to the specified torque.
Fig. 129
Fig. 130
l Assemble the water pump with new gasket.
(Fig. 129)
