SAFARI

ENGINE2.2LDICOR

Inspection

Inspect theAC Compressor belt for wear, cracks and

signs of failures. Replace if necessary.

Fitment

Install the belt over crank shaft pulley, AC

Compressor pulley and belt tensioner.

Rotate the belt tensioning screw in anticlockwise

direction till correct belt tension is set. Tighten the

tensioner mounting nut with 4 Kgm torque. Check

belt tension.

Check the frequency in SPAN (AC to damper) with

CLAVISgauge Frequency should be 200+10Hz for

new belt. Belt to be re-tensioned to 180+10Hz on

vehicle after running for 15mins.

ALTERNATOR/POWER STEERING

PUMPBELT

Removal

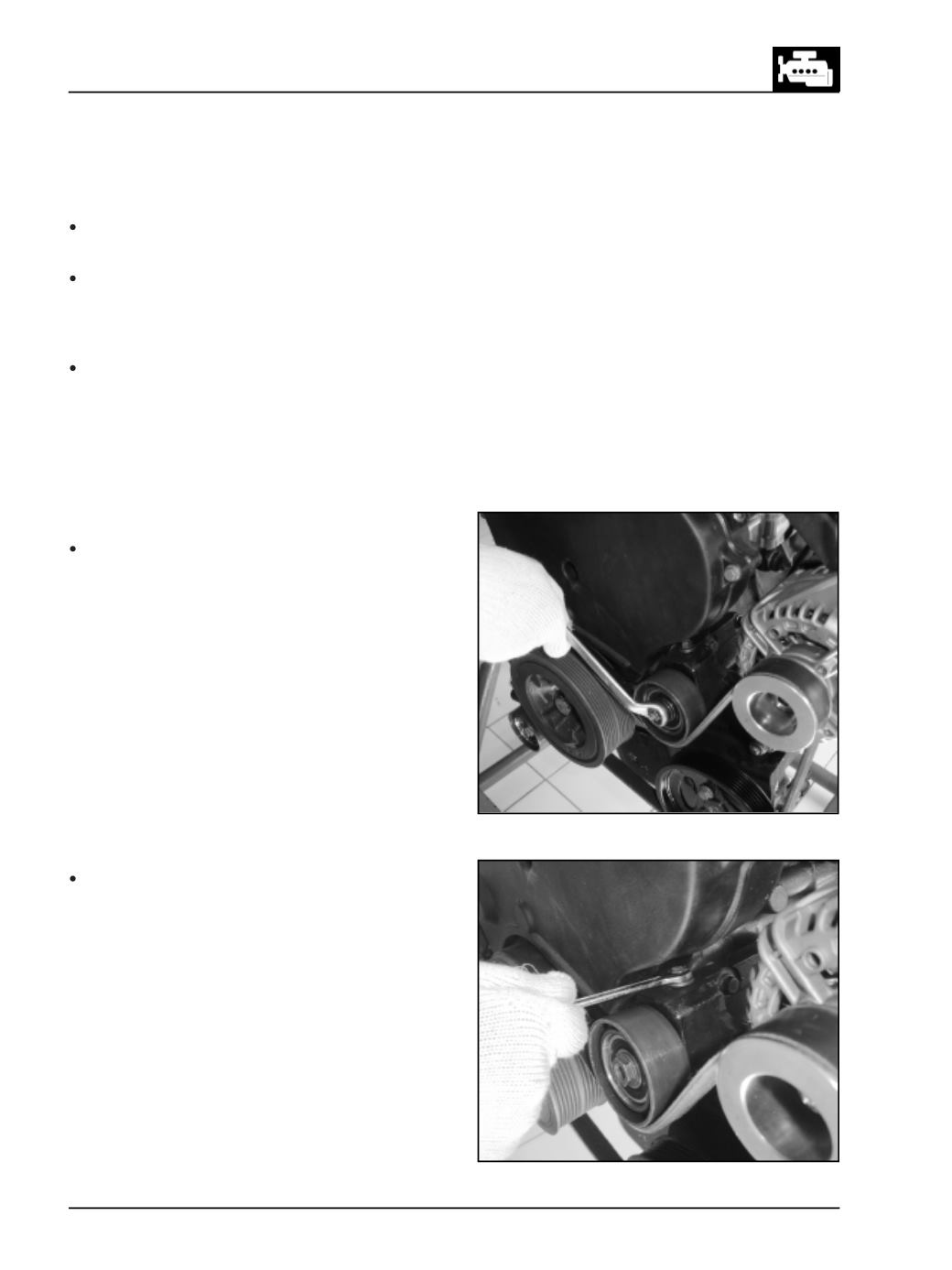

Remove the belt tensioner cap and loosen the

tensioner (Fig. 4)

Relieve the belt tension by rotating the tensioner

screw in clockwise direction (Fig. 5)

Fig. 4

Fig. 5
