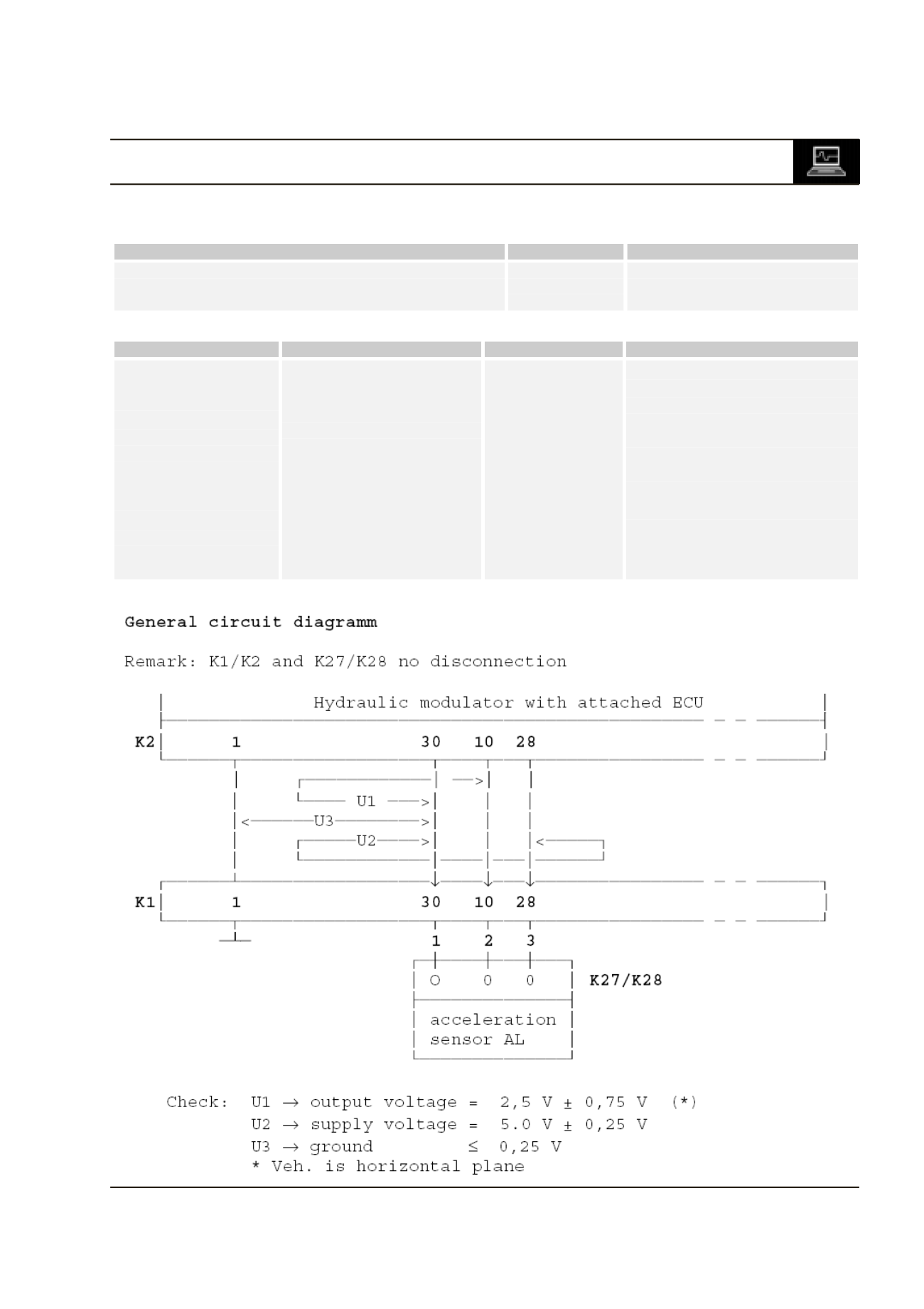

ABS 5.3 SYSTEM TEST
© All rights held by Robert Bosch GmbH, including applications for patents and property rights of disposal, such as to reproduce or pass on the third persons
Test step 11
Kind of fault
Code
ABS disable
Acceleration sensor AL
C1274
C1275
yes
Path of fault Cause of fault
Connection
Possible remedy
ECU
→
Signal ground
→
Longitudinal
acceleration
Sensor
→
VStab
→
ECU
Connectors,
wiring,
ECU,
ground,
Acceleration sensor.
Pin no. 30
Pin no. 10
Pin no. 28
−
Check plug connection.
−
Check wiring for open
circuit.
−
Check accelerator
sensor
−
Check ground Acc.
Sensor
−
Replace ECU.
−
Check ground ECU (K1-
16
→
K27-1 Ground
accelerator sensor.
