DIAGNOSTICS ABS
6
The Following operations can be performed with
the help of these commands
1] Read ECU status
2] Actuate the components
3] Read the Diagnostic Trouble Codes (DTC’s)
4] Clear the Diagnostic Trouble Codes (DTC’s)

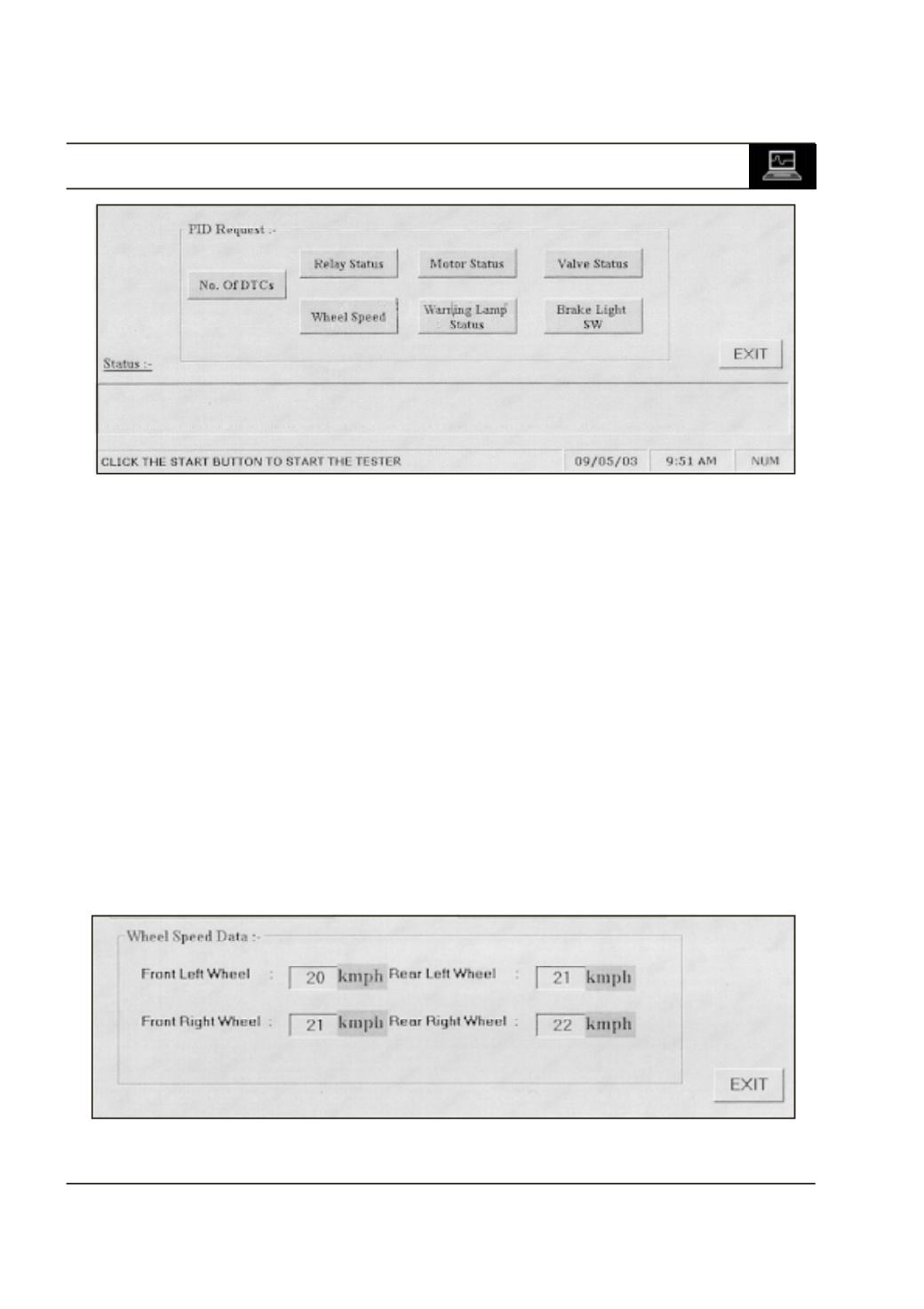

1] On clicking the ‘Read ECU status’ the
frame as shown in Fig. 7 is displayed.
·
No Of DTC’s Gives the number of Diagnostic
trouble codes
·
Relay status gives the relay status of the
Relay
·
Motor Status gives state of the Pump motor.
In default condition Pump Motor should be
‘OFF’ .
·
Valve status give the condition of the valves,
normally the Inlet valves are ‘ON’ and Outlet
valves are ‘ OFF’
·
After applying the Brake , and clicking the
‘Brake light SW’ , the Status bar Display’s
‘BRAKE SWITCH ON’
·
After clicking the ‘WHEEL SPEED’ button,
the following frame appears which shows the
wheel speed data . This is the real time data
for the wheels .
Fig. 7
Fig. 8
