GEAR BOX G-76

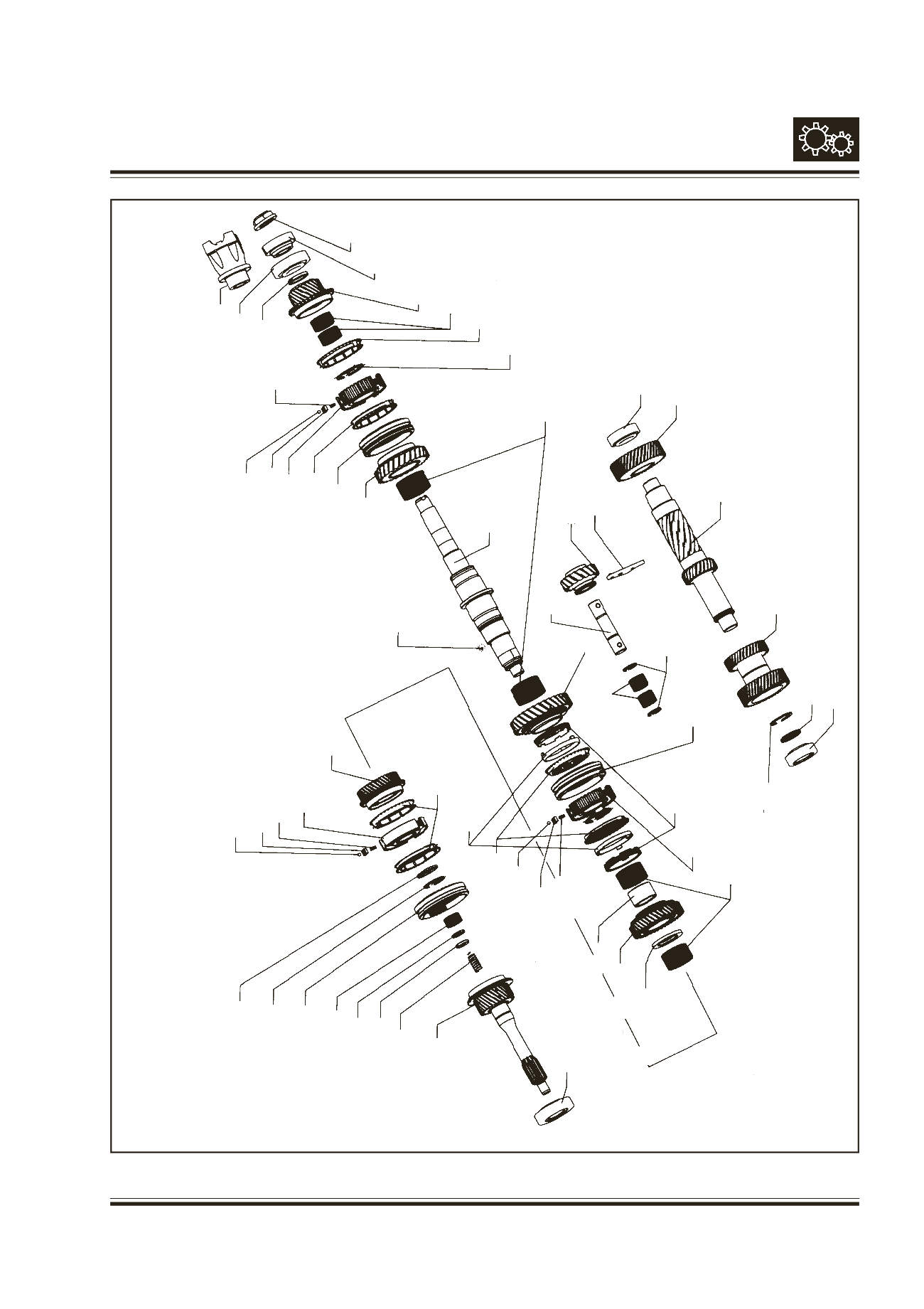

Fig. 3
G-76 MAIN SHAFT ASSY. WITH DUAL SYNCHROCONE EXPLODED VIEW
SPACER
(ENG GEAR 3/4)
SNAP RING
(ENG GEAR 3/4)
SHIFTERSLEEVE
(3RD/4TH GEAR)
ROLLER CAGE (DRIVESHAFT)
THRUST BEARING
SPACER (THRUST BEARING)
COMPRESSION SPRING
(DRIVESHAFT)
DRIVESHAFT SUB ASSY
BALL 5 DLA.GRADE-20
(3NOS)
CARRIER (3 NOS)
COMPRESSION SPRING
(3 NOS)
ENGAGINGGEAR
(3RD/DRIVESHAFT)
THIRD SPEED GEAR SUB ASSY.
SYNCHRO CONE
(3RD/ DRIVE SHAFT)
INTERMEDIATE CONE
OUTER SYNCHRO CONE
BALL 5 DIA. GRADE-20
( 3 NOS)
CARRIER ( 3 NOS)
COMPRESSION
TAPER ROLLER BEARING SPRING ( 3 NOS)
(30x72x20.75)
BUSH (3RD GEAR)
SECOND SPEED GEAR
SUBASSY.
SPACER (3RD GEAR)
BALL 5 DIA. GRADE-20
(3 NOS)
CARRIER (3 NOS)
ENGAGINGGEAR
(REV/OD)
SYNCHRO CONE
(REV/GEAR)
SHIFTER SLEEVE
(REV GEAR)
REVERSE GEAR
BALL 3 DIA. GRADE-200
MAINSHAFT
REVERSE IDLER SHAFT
REVERSE IDLER GEAR
RETAINER PLATE
FIRST GEAR SUB ASSY
(DOUBLE CONE)
RI NEEDLE CAGE
INNER CONE
ENGAGINGGEAR (1/2
DOUBLE CONE)
NEEDLE CAGE BEARING
(2ND/3RD GEAR)
EXTERNAL CIRCLIP
(COUNTER SHAFT)
SNAP RING
(R I GEAR)
SHIFTERSLEEVS
(1/2 DOUBLES
CONS)
ASSYENDYOKE
TAPER ROLLER
BEARING(30x72x20.75)
SPACER (OD GEAR)
COMPRESSION
SPRING (3 NOS)
NUT
SPEEDO GEAR
OVERDRIVE GEAR
NEEDLE CAGE BRG.
(OD GEAR)
SYNCHRO CONE
(OD GEAR)
SNAP RING
(1ST/2ND & REV/OD)
NEEDLE CAGE BEARING
(1ST/REV GEAR)
TAPER ROLLER BEARING
OVERDRIVE GEAR
COUNTER SHAFT
DOUBLEGEAR
SPACER (COUNTER SHAFT)
TAPER ROLLER BEARING
