22

486 PL ENGINE

P

Fig. 25

Fig. 24

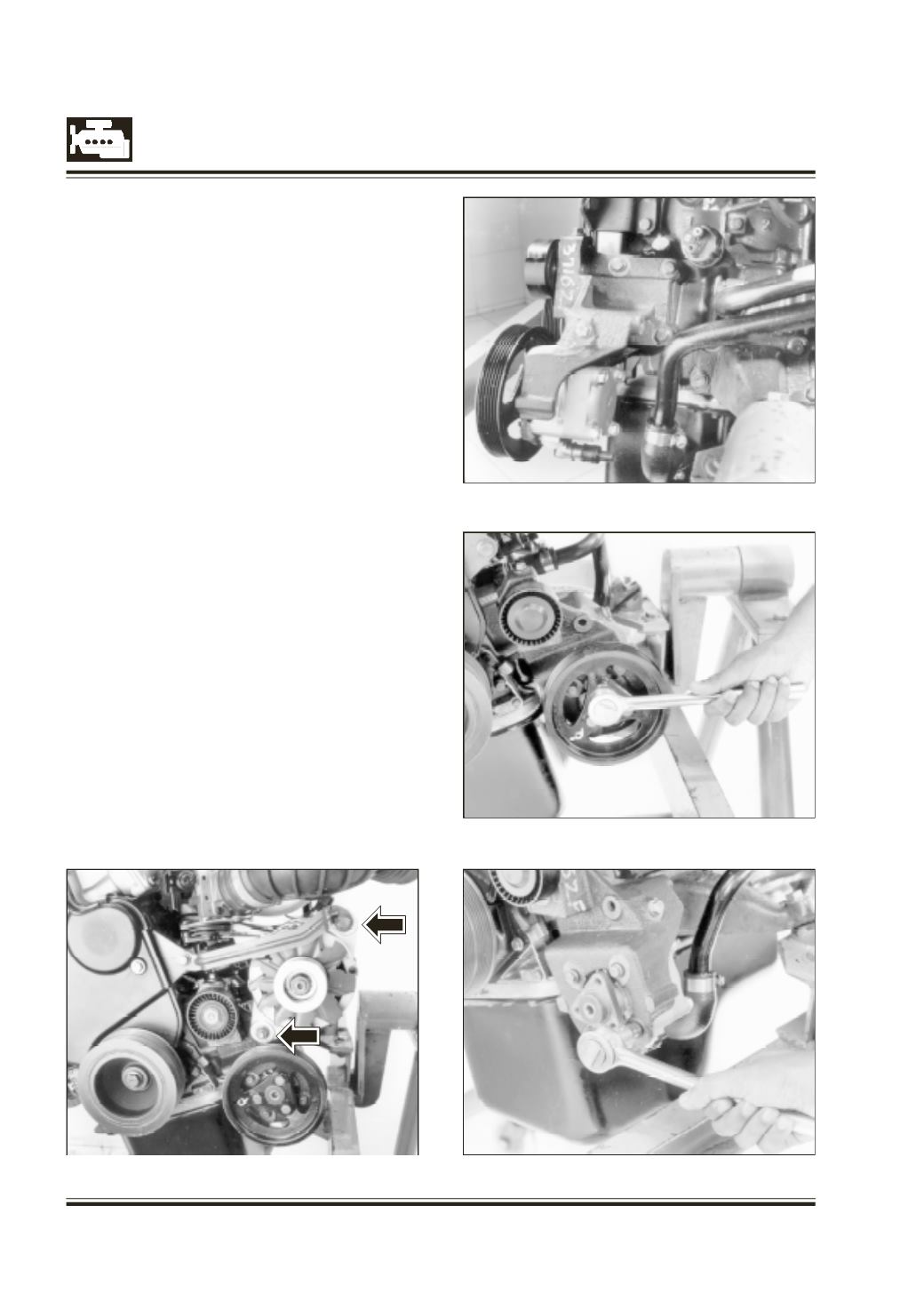

Remove the belt

Remove alternator top and bottom mounting bolts

and take out alternator assembly. Fig. 24

Remove powersteering pump mounting bracket along

with pump and pulley. Fig. 25

(If needed powersteering pulley and pump can be

removed separately) Fig. 26a & 26b

Fig. 26b

Fig. 26a
