BODY

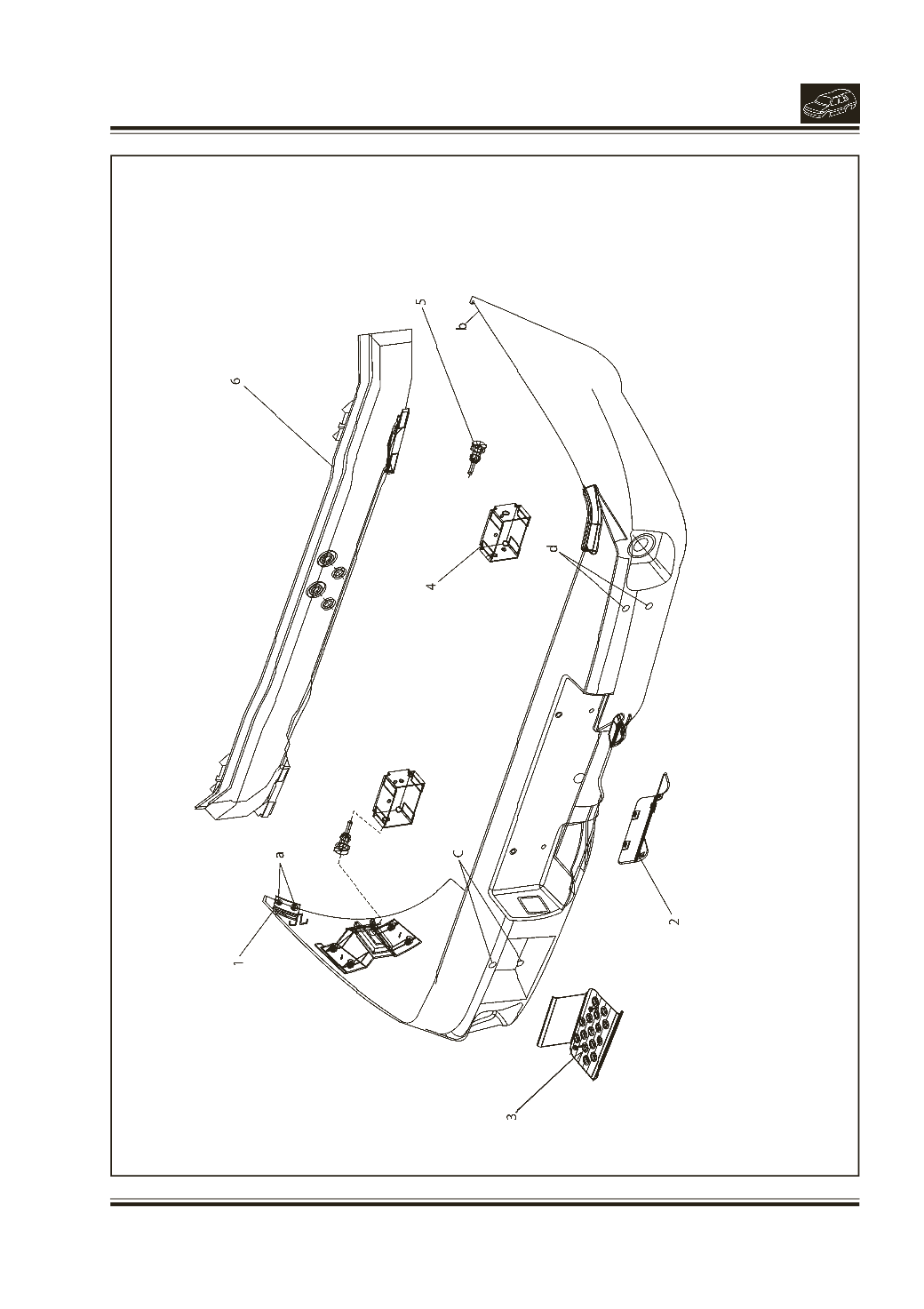

EXPODED VIEW FOR REAR BUMPER

1. Rear Bumper skin

2 Tow Hook Cover

3 Foot step plate

4 Assy. side mtg. brkt. LH/RH

5. Adjusting screw

6. Assy. Rear bumper beam
