ELECTRICALS
30

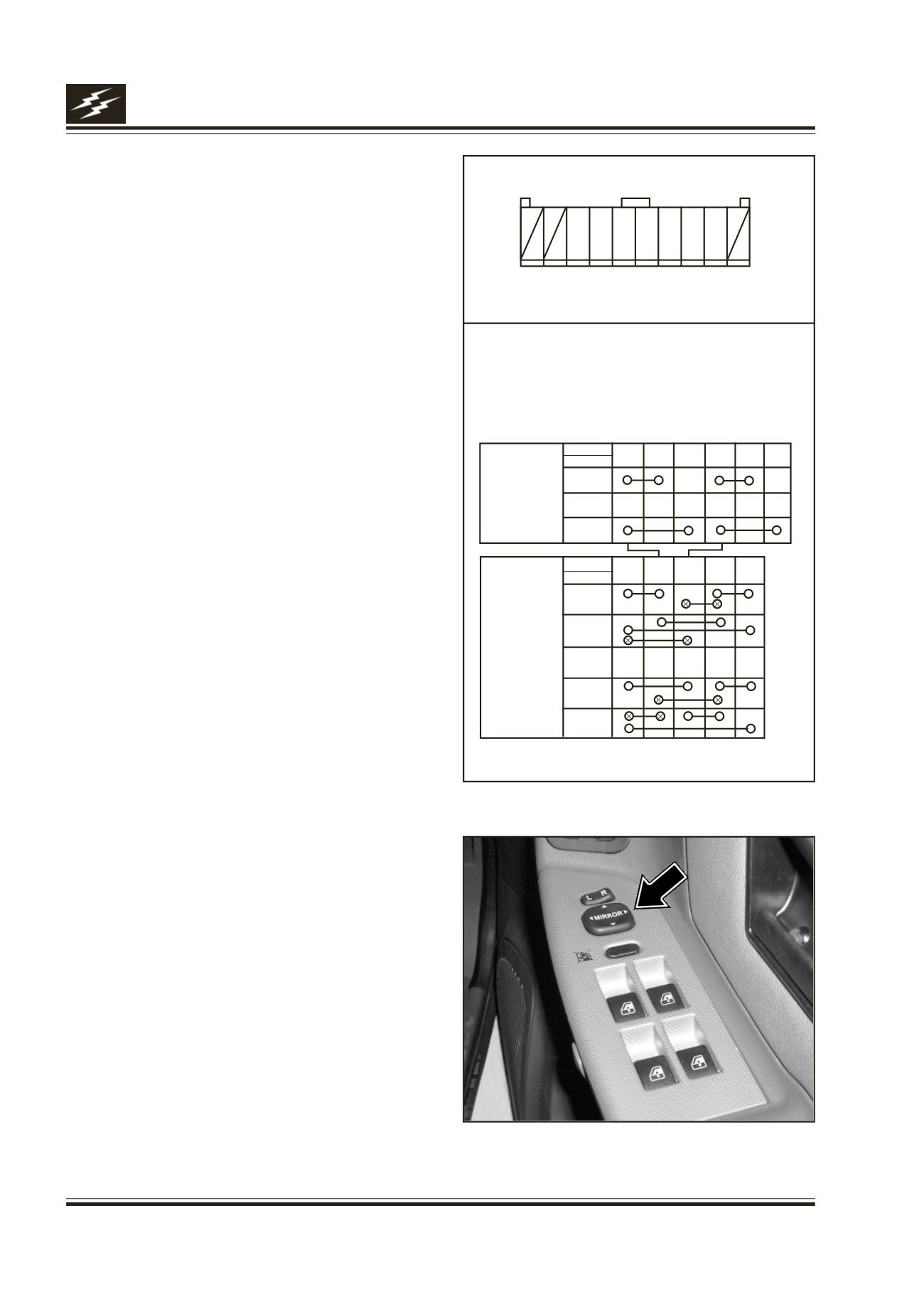

Fig. 34
Fig. 35
Door mirror switch
15G. DOORMIRROR SWITCH
(Optional) (Fig. 35)
Function
It facilitatesmoterized sideways aswell as up&down
movement of mirror on both sides
Location
It is located on the switch pack of driver side door.
B E M+ HL VL VR HR
CONNECTOR TERMINAL ARRANGEMENT
99159-11024 SUITABLE (N) (050-10P MALE)
CONNECTION TABLE
(MV) VL VR (MH) HL HR
POSITION
TERMINAL
LEFT
OFF
RIGHT
L.R SELECT
SWITCH
B (MV) (MH) E M+
POSITION
TERMINAL
UP
DOWN
OFF
OPERATIONAL
SWITCH
LEFT
RIGHT
(MV. MH ARE THE SYMBOLS OF INTERNAL CONNECTION)
