ENGINE
137
BLOW-BY SYSTEM

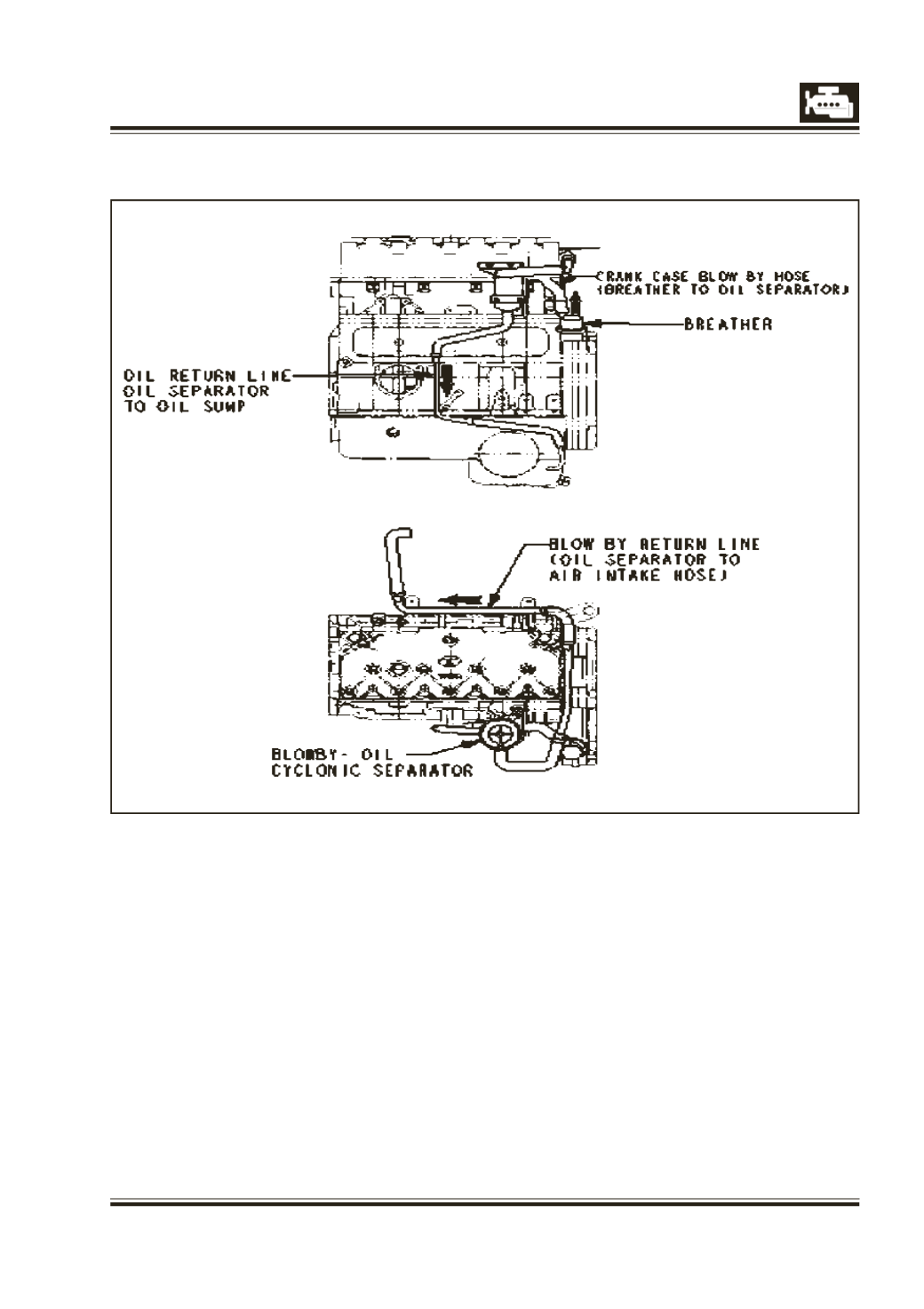

Oil Separator for Air Breather:
A step towards developing environment friendly
products, to eliminate the engine blow by being
emitted to atmosphere, the engine breather / oil
separator has been fitted.
The oil separator separates oil from the blow by of
the engine and sends it back to engine oil sump.
The remaining air, carbon particles and other gases
are sent to the inlet manifold.
There is also a spring loaded diaphragm valve
provided on the oil separator outlet to the inlet
manifold. This prevents the flow of excessive of
blow-by from the oil separator to inlet manifold in
case the air filter is choked and high suction starts
acting on outlet port of oil separator.
No leakage past diaphragm or top cover of oil
separator is permitted. Replace the assembly if
there is any leakage.
