BODY
18. REMOVAL/INSTALLATION OF REAR SEATS
(Fig. 24 & 25)
REMOVAL
l
Release the latches at both side of back rest
and fold the back rest.
l
Remove the mounting screws of rear split seat
from floor and remove the rear seat.
INSTALLATION
l
Subassemble the rear split seat.
l
Fit the subassembly on the rear seat mounting
bracket with hex. screw (M8x20), spr. washers
(B8) and bright washers (8.4), 4 nos. at middle
and 2 nos. each at both sides and tighten the
screws.
l
While installation of seat care should be taken
for seat belt, not to be caught between seat latch
and pin.

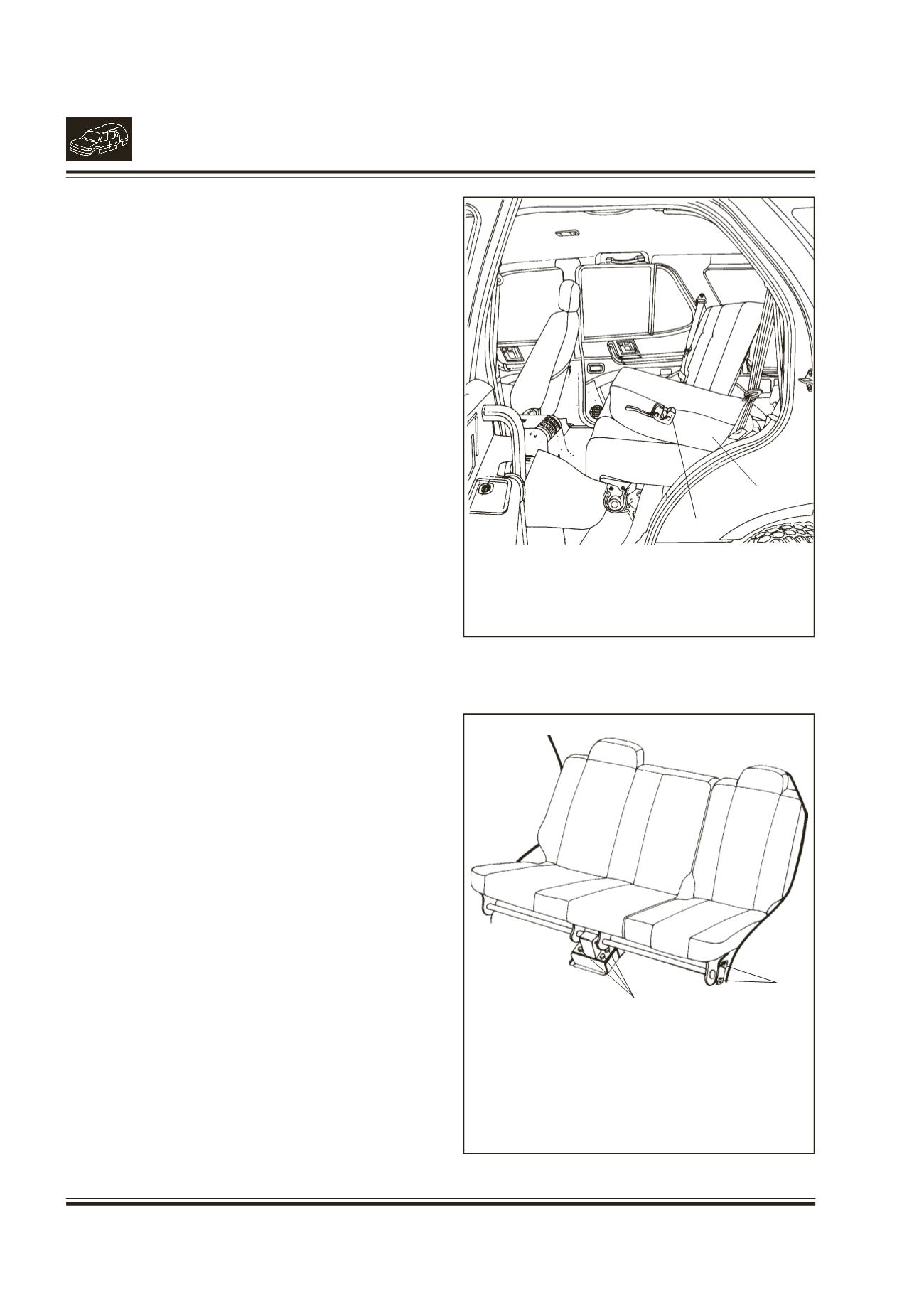

Fig. 24.
1.
LATCH
2.
BACK REST (REAR SEAT)
Fig. 25.
1.
MOUNTING SCREWS SIDE
2.
MOUNTING SCREWS MIDDLE
2
1
1
2
