ELECTRICALS

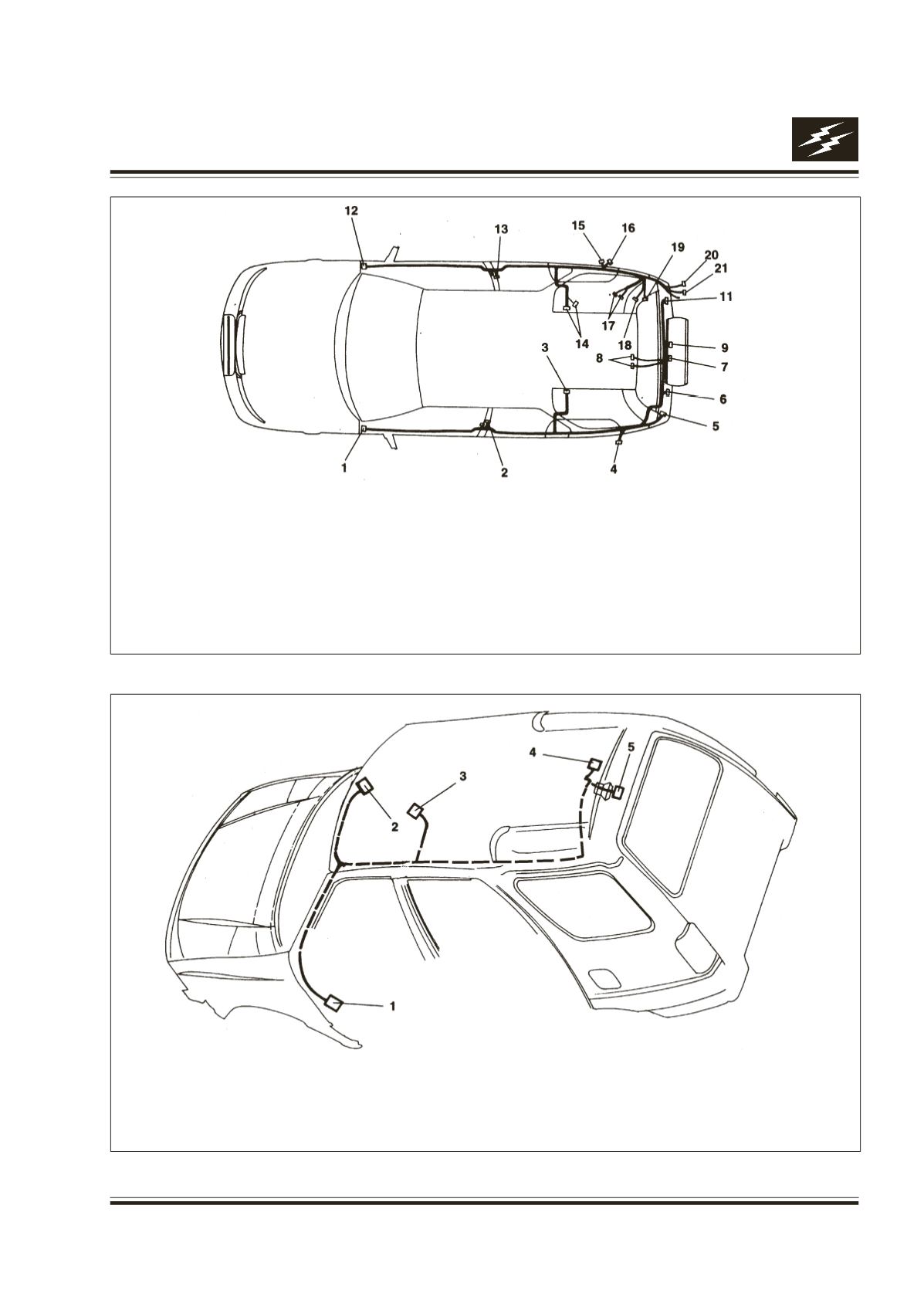

1. TO WIRING HARNESS CABIN
2. TO FRONT INTERIOR LAMP
3. TO ROOF LAMP MIDDLE
Fig. 6 - Wiring harness roof
4. TO ROOF LAMP REAR
5. TO HIGH MOUNTED STOP LAMP
1. TO WIRING HARNESS CABIN
2. TO WIRING HARNESS REAR
DOOR - LH
3. TO SEAT BELT REAR - LH
4. TO FUEL FLAP SOLENOID
5. TO TAIL LAMP - LH
6. TRAILER CONNECTION - I
7. TO NUMBER PLATE LAMP - LH
Fig. 5 - Wiring harness tail (front to tail) RH /LH
8. TO FUEL LEVEL SENSOR AND
TANK UNIT
9. TO NUMBER PLATE LAMP - RH
10. TO REVERSING BUZZER
11. TRAILER CONNECTION - II
12. TO WIRING HARNESS CABIN
13. TO WIRING HARNESS REAR
DOOR - RH
14. TO SEAT BELT RH & MIDDLE
15. TO REAR A/C SWITCH
16. TO REAR BLOWER SWITCH
17. TO REAR THERMOSTAT
18. TO REAR BLOWER MOTOR
19. TO REAR BLOWER RESISTOR
20. TO TAIL LAMP - RH
21. TO WIRING HARNESS TAIL GATE
