5. AGGREGATE NUMBERING SYSTEM :
Q
Transfer Case
Number
Q
Front Axle Number
Chassis Number
Engine Number
Rear Axle Number
Gear Box Number
FRAME
Aggregate number for Fame consists of Five barrels
X XXX XX X XXXXX
Barrel 1
: Indicates basic model, T for Safari
Barrel 2
: Indicates variation in basic model as below
405 - For Safari, 2650mmWB, Diesel 4 x 2
406 - For Safari, 2650mmWB, Diesel 4 x 4
Barrel 3
: Indicates year of production
2002
-
XZ
2003
-
WZ
2004
-
VZ
2005
-
UZ
2006
-
TZ
Barrel 4
: Indicates plant location
8
for J Block, Pune
Barrel 5
: Indicates cumulative serial number of
frame.
ENGINE
:
Aggregate number for Engines consists of six / seven
barrels
XXXXXXX XX X X XX X XXXXX
1
2 3 4 5 6 7
Engine model
Engine No.
Barrel 1
: Indicates engine model 483 DLTC
Barrel 2
: Indicates variation in basic model of
engine i.e.
55
:- 483 DL Turbocharged intercooled
diesel engine 64 kw@4300 rpm, linered,
meeting Euro III emission norms with
catalytic convertor and EGR
Barrel 3
: Indicates ‘L’ for LHD application only.

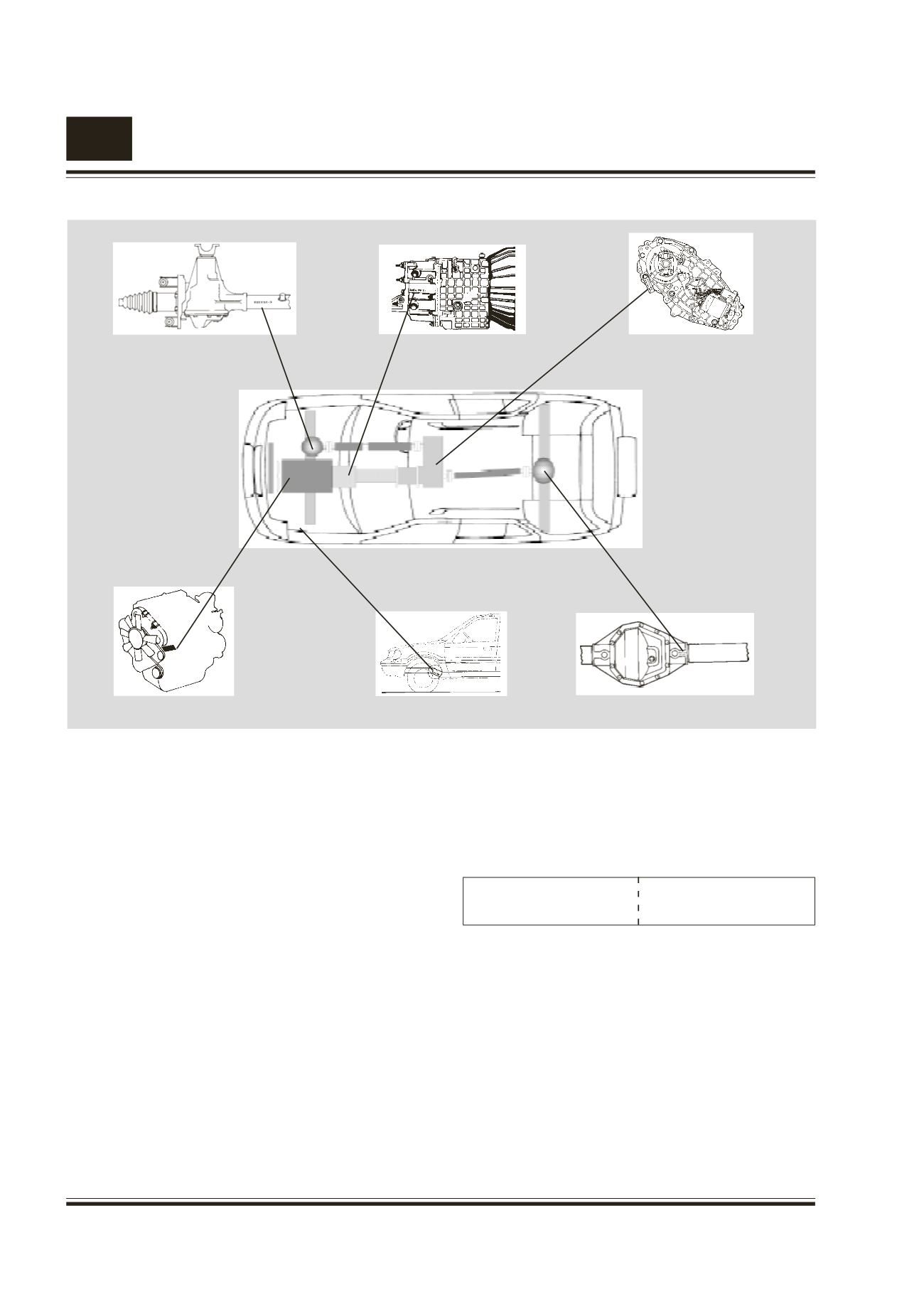

Fig. 16 Location of aggregate numbers
