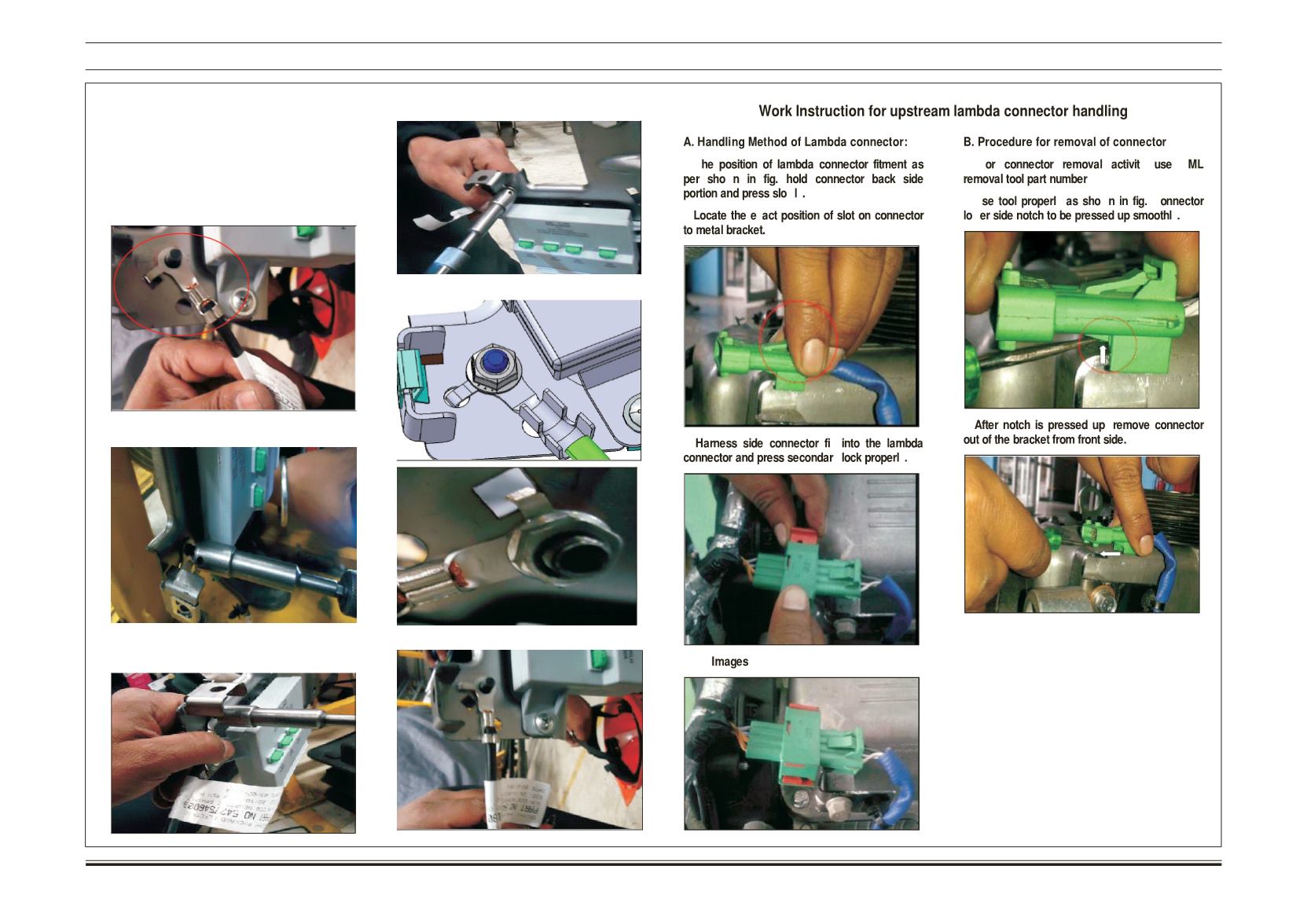

Work Instruction for Anti-rotation Earth Terminal Handling:
A
Handling Method of Anti-rotation Earth
Terminal:
1. The position of Anti rotation Earth terminal fitment
as per shown in fig. hold Terminal properly with anti-
rotation slot.
2. Locate the exact position of terminal on metal
bracket / BIW.
3 Fix the tightening gun on nut with positioning of
the earth terminal antilock properly as shown in fig.
4 Use tools properly & tight the bolt on given torque
with holding Earth terminal properly in anti-rotation
slot as shown in fig.
5 Good Fitments:
6 Wrong fitments:
