ZEST AND BOLT_VOLUME 1

AIR CONDITIONING

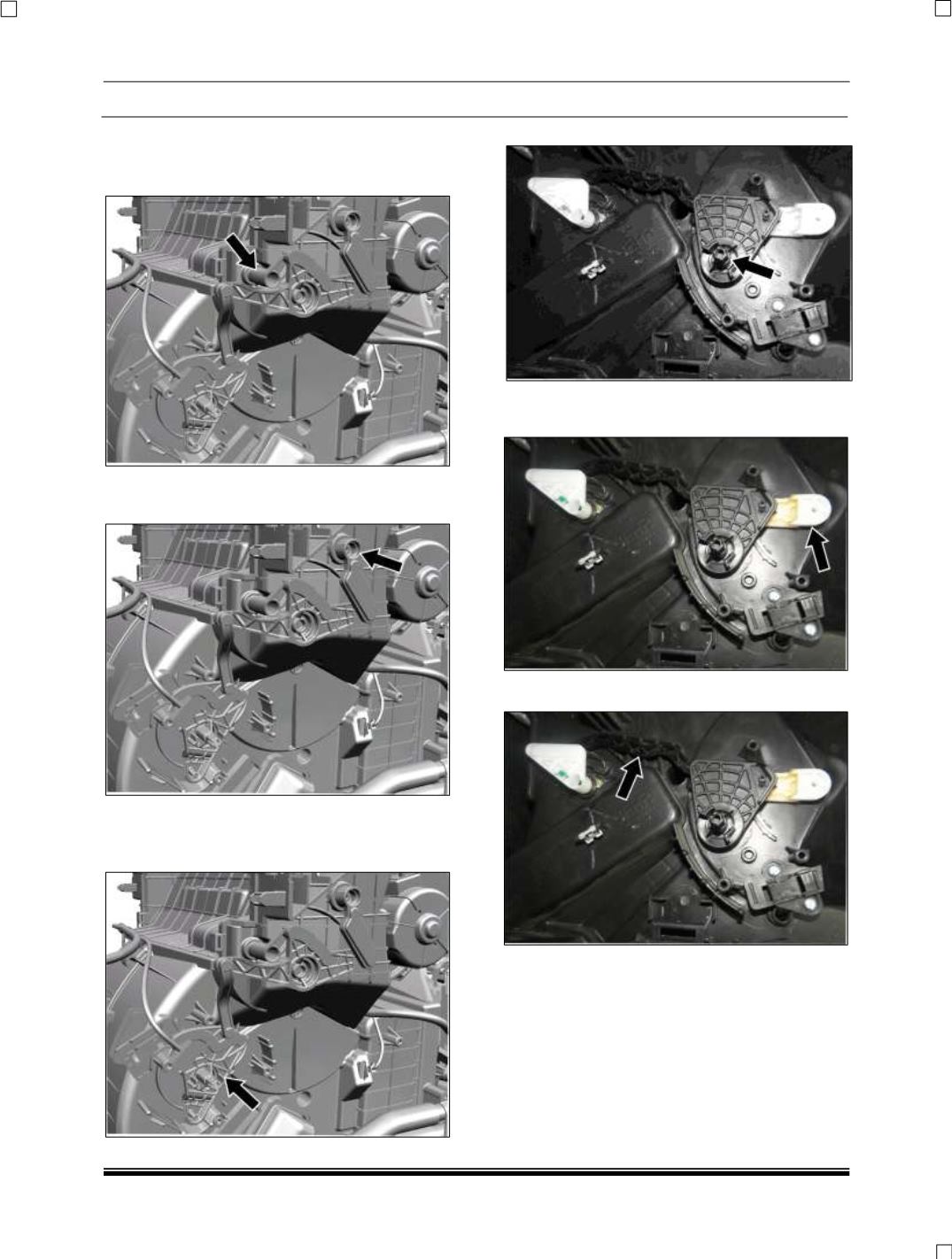

11.5.7 SERVICING OF KINEMATIC

1. Pull foot lever so that it will be detached from

locking in Foot flap.

2. Pull Defrost lever so that it will be detached

from locking in Defrost actuating lever.

3. Pull and hold primary temperature cam which

is also snapped to connecting lever from

bottom side.

4. Pull secondary temperature flap cam.

5. Detach connecting lever from primary

temperature cam.

6. Pull primary temperature flap lever.
