7.10 REPAIRS

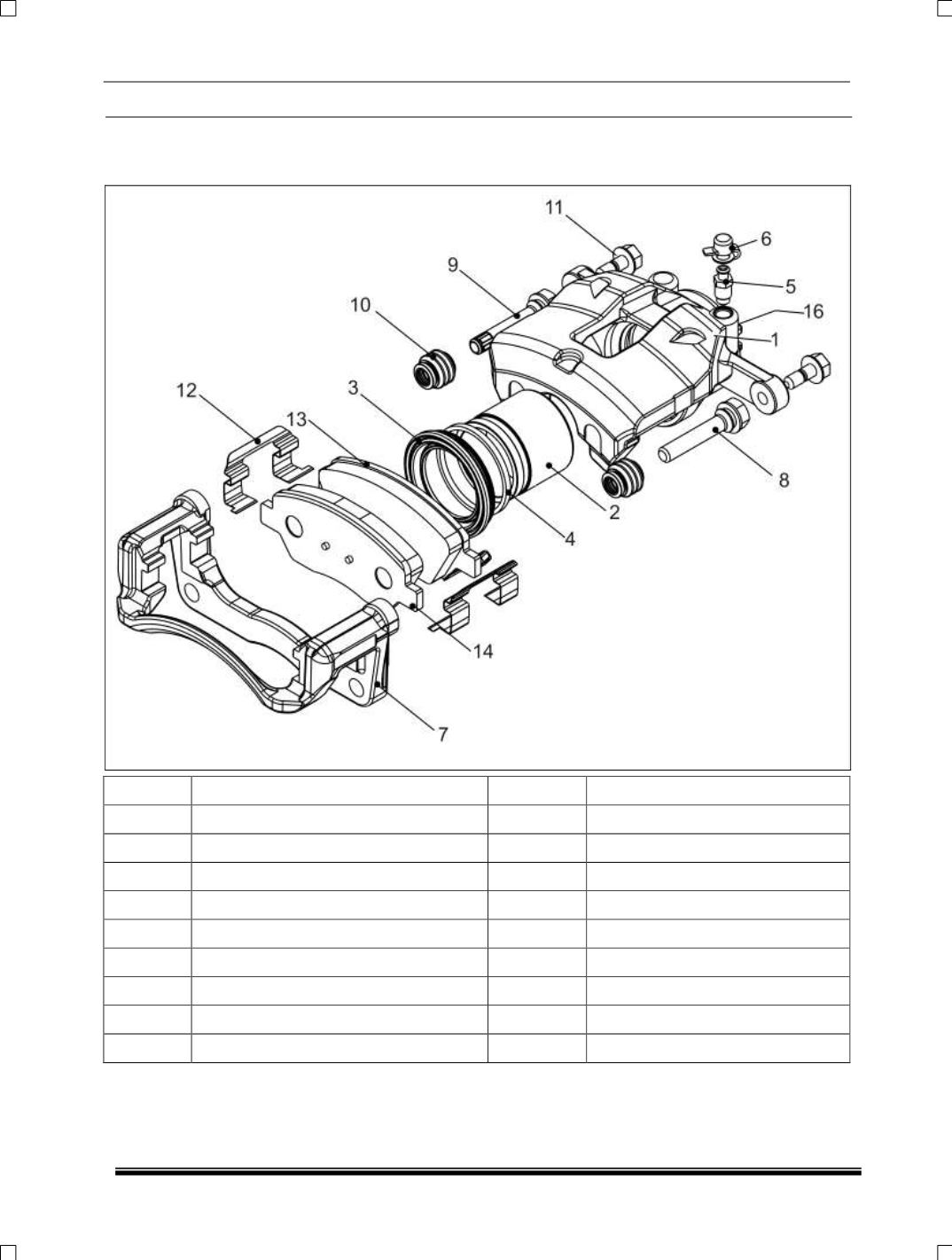

CALIPER BRAKE ASSSEMBLY
ITEM NO
DESCRIPTION
ITEM NO
DESCRIPTION
01
CYLINDER MACHINING
10
BOOT GUIDE ROD
02
PISTON
11
BOLT GUIDE ROD
03
BOOT PISTON
12
SPRING PAD
04
SEAL PISTON
13
PAD KIT INNER
05
BLEED SCREW
14
PAD KIT OUTER
06
CAP BLEED SCREW
15
PROTECTIVE PLUG
07
CARRIER MACHINING
16
GREASE SACHET
08
GUIDE ROD A
09
ASSEMBLY GUIDE ROD B
