ZEST AND BOLT_VOLUME 1

DRIVETRAIN-TA65 Star

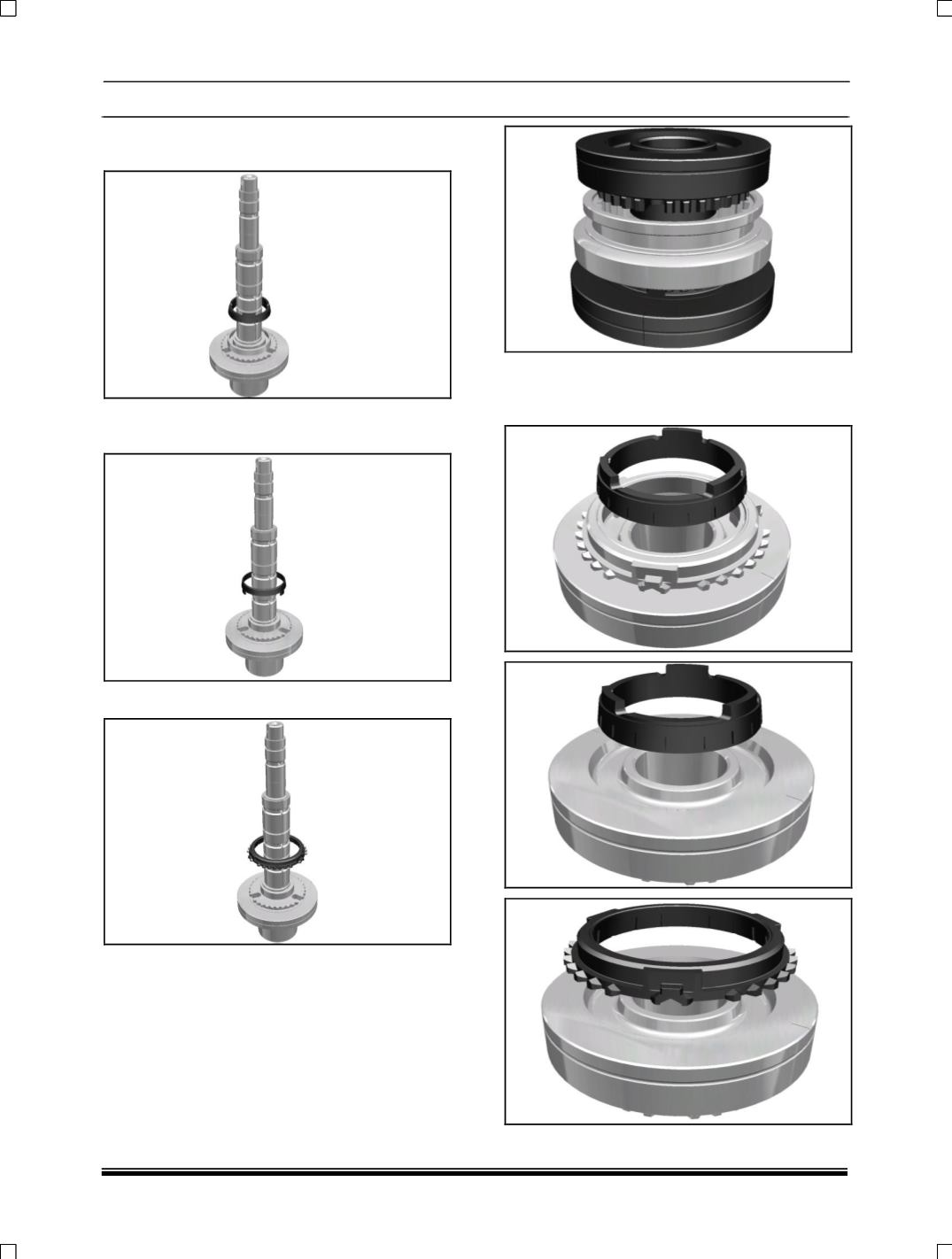

3. 1st / 2nd SYNCHROPACK ASSEMBLY:

1. Place inner cone.

2. Place the intermediate cone in such a way

that the lugs sit exactly in the slots of 1st gear

3. Now place the outer synchro cone.

4. Place the engaging gear in such a way that

the inner cone lugs sit properly inside the

grooves provided in the engaging gear.

5. Place the engaging gear 1st and 2

such that

the reverse gear tooth over it is towards the

1st gear.

6. Place the 2

gear and assemble the twin

cones as shown and place it over the

engaging gear as shown in below figures.
