Automated Manual Transmission

40

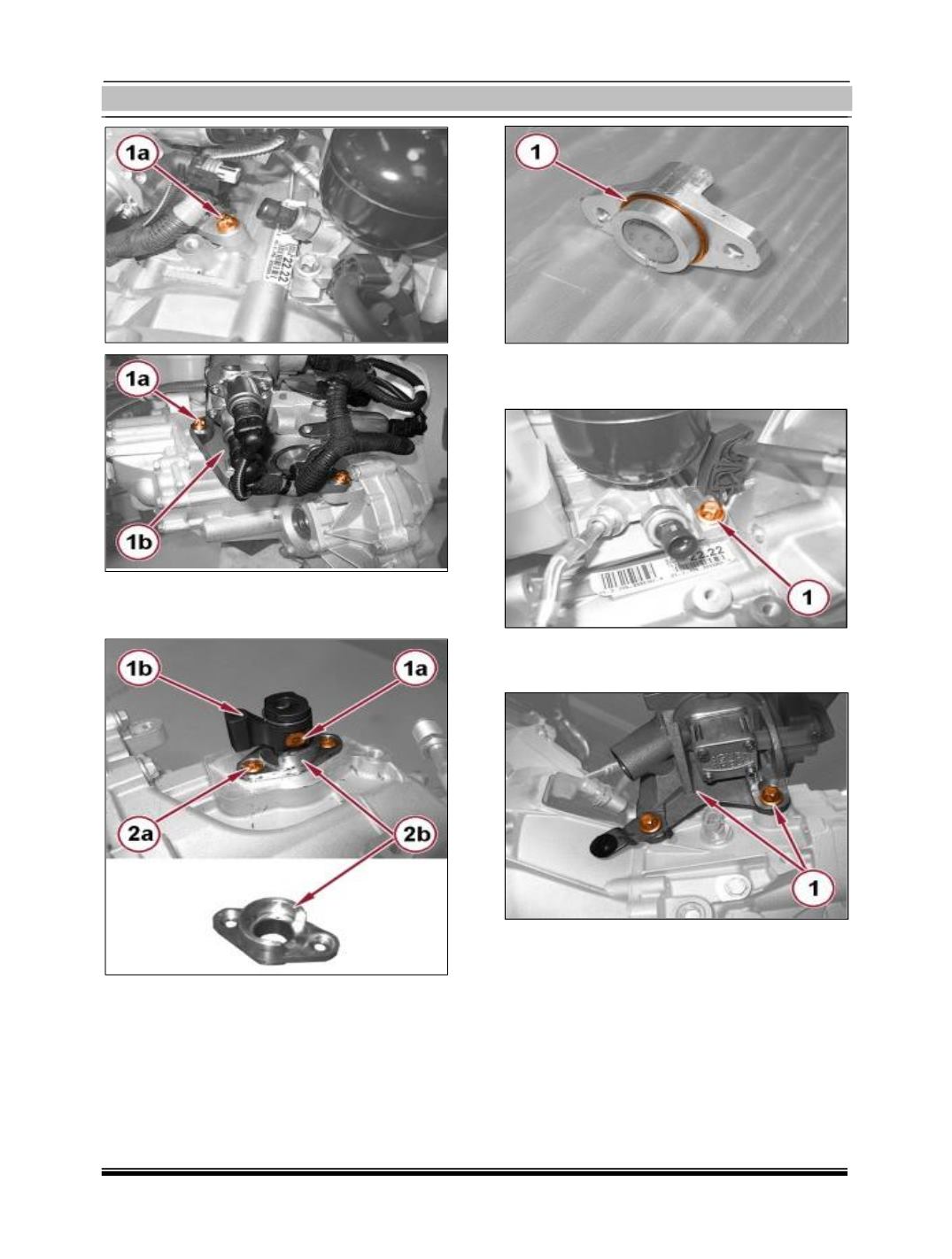

1. Loosen the screw (1a) and remove the

gear selection dog (1b).

2. Loosen the screws (2a) and remove the

solenoid valve unit mounting complete

with O-ring (2b).

1. Remove the O-ring from the solenoid valve

unit mounting.

1. Loosen the upper fixing screw for the

power unit.

1. Loosen the screws and remove the power

unit.
