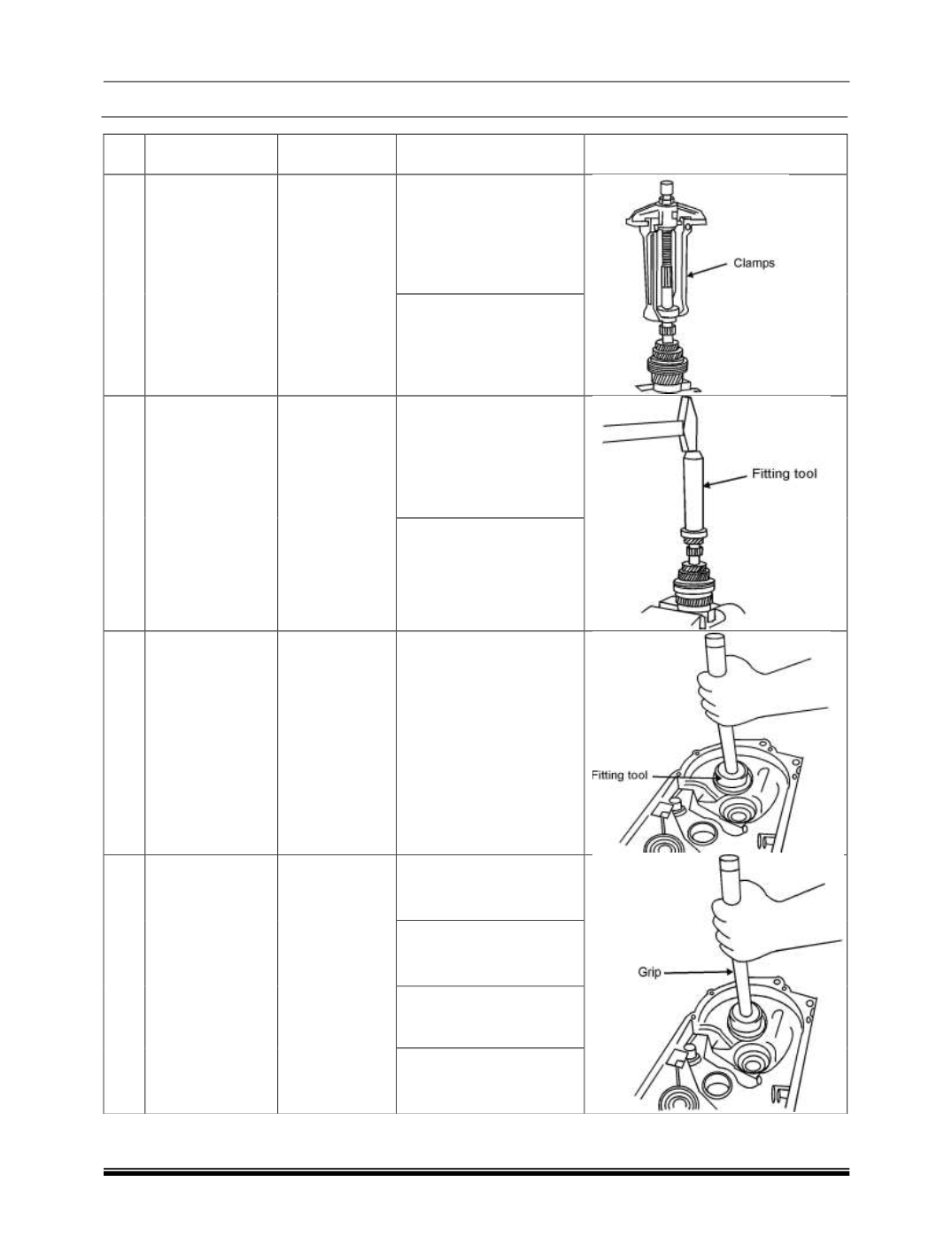

494 / 1231
DRIVETRAIN C549
19
Sr
No
TML Part No
Description
Function
Schematic
14
287458902615
Clamps
Extracting main shaft
front bearing
Removing lay shaft
front bearing inner
race
15
287458902616
Fitting tool
Fitting lay shaft rear
bearing
Fitting lay shaft front
bearing inner race
16
287458902617
Fitting
tool
(1b)
Extracting differential
support bearing outer
races
17
287458902618
Grip
Fitting differential
mount bearing outer
races
Fitting main shaft oil
seal on gearbox to
engine mount
Fitting oil seal on
differential cover
Fitting bearing on
differential
