DRIVETRAIN C549
1
4.1.1 CLUTCH

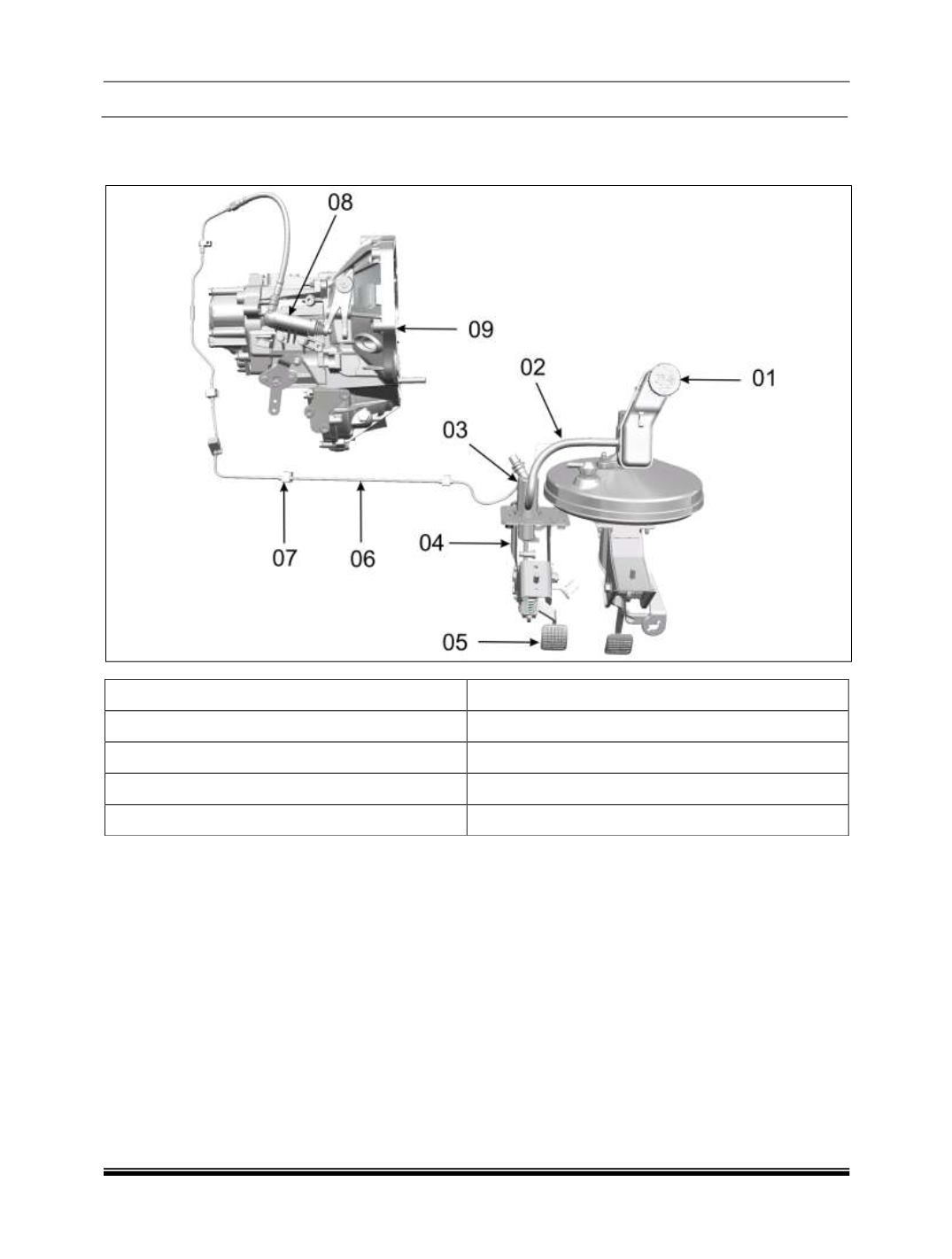

4.1.1.1 HYDRAULIC CLUTCH ACTUATION LAYOUT (1.3 QUADRAJET)
Constructional specifications:
The clutch is single dry plate type, with a thrust
bearing in permanent contact with the pressure
spring.
The driven plate is driven by pressure exercised
by a diaphragm spring. The clutch release takes
place via the hydraulic system operated by the
pedal. Friction materials free from non-
environmentally friendly components have been
adopted; special care has been taken in the
development of new materials and the clutch
assembly with a view to guaranteeing excellent
performance in terms of modulation and driving
comfort with a consequent reduction in weight
compared with traditional hydraulic operation.
The clutch master cylinder has undergone
considerable improvements compared with the
components used normally; it comprises:
- Plastic casing which makes a further contribution
to a reduction in the weight;
- Steel cylinder;
- Plastic material piston.
The material for the piston and the rubber seals
have been specially developed for operating with
long strokes; in addition, the seal produced by the
rubber steel contact is excellent compared with
traditional type clutch pumps where the seal is on
cast iron.
01 Brake/clutch fluid reservoir
06 Pipe connecting pump and slave cylinder
02 Hose from reservoir to clutch master cylinder 07 Clamps
03 Clutch master cylinder
08 Clutch slave cylinder
04 Control mounting bracket
09 Transaxle
05 Clutch pedal
